Greensmaster Flex 18/21Page 5 – 2Electrical System

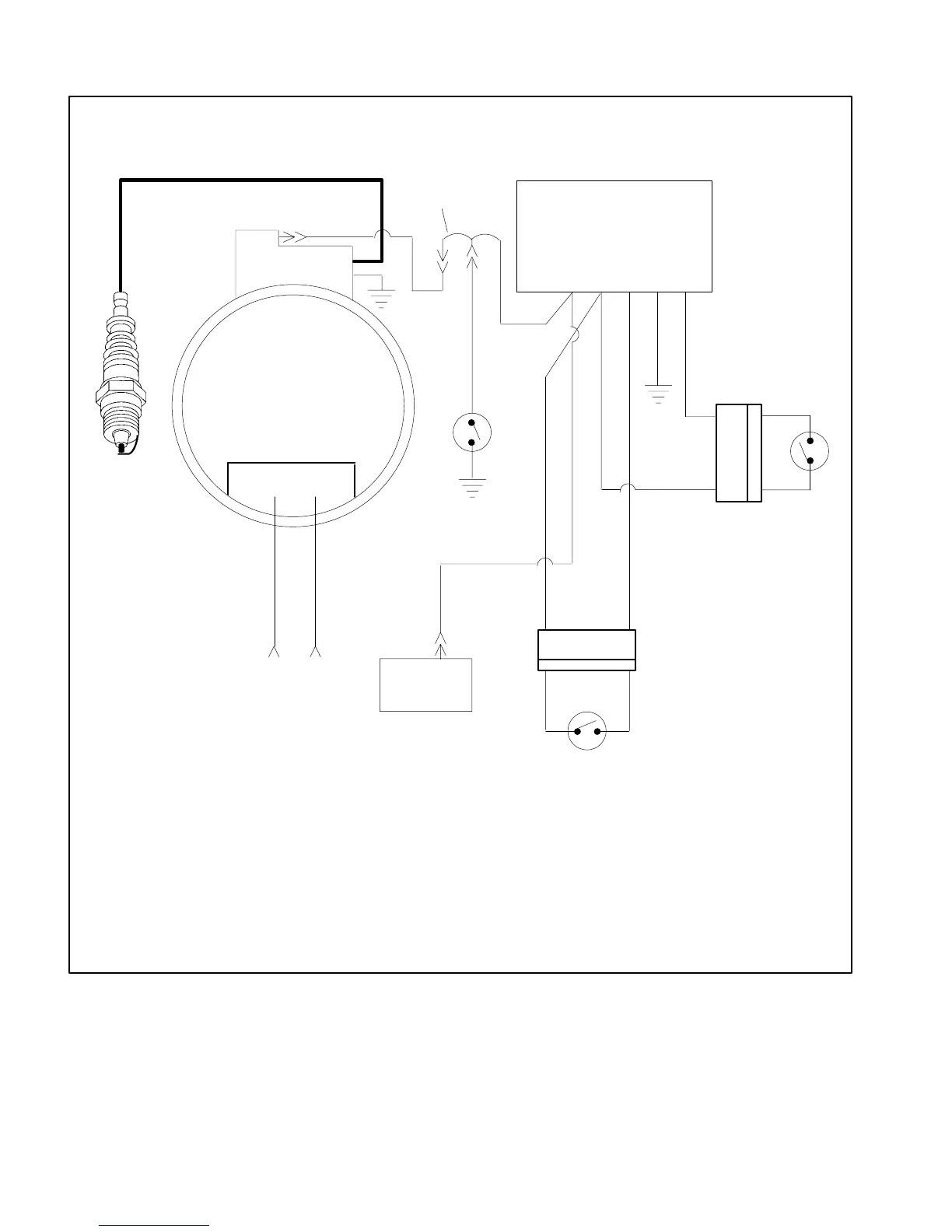

Wiring Schematic
ABCDE F
GREEN
RED
WHITE
BLACK
INTERLOCK
SWITCH
ENGINE
MAGNETO
INTERLOCK MODULE
ON/OFF SWITCH
IGNITION COIL
BLACK
BLACK
Kawasaki FE120 Engine
ON\OFF SWITCH is open in the ON position
INTERLOCK SWITCH is closed when traction lever is in NEUTRAL
HIGH TENSION LEAD
(FLYWHEEL)
RED
CONNECTOR
LIGHTING COIL
YELLOW
YELLOW
ORANGE
HOURMETER
BLACK
CONNECTOR
RED
(OPTIONAL)
OPERATOR
PRESENCE
SWITCH
OPERATOR PRESENCE SWITCH is closed when bail is against handle
