Greensmaster Flex 18/21 Page 6 – 7 Chassis and Controls
Traction Control Cable Replacement
Removal
1. Park machine on a level surface. Make sure engine
is OFF. Remove spark plug wire from the engine spark
plug.
2. Move traction lever to the DISENGAGED position.
Remove cable ties that secure traction cable.
3. Remove traction cable from the gearbox as follows
(Fig. 6):
A. Loosen front cable jam nut and lift traction cable
free from casting slot of gearbox.
B. Remove retaining ring that secures cable eyelet
to gearbox traction lever.
C. Remove traction cable from gearbox.
4. Remove traction cable from the traction lever as-
sembly as follows (Fig. 7):
A. Remove retaining ring that secures the traction
cable housing to the control bracket.
B. Remove retaining ring that secures cable spring
to pin on traction lever assembly.
C. Remove cable from traction lever assembly.
5. Remove traction cable from the machine.
Installation
1. Secure traction cable spring to the traction lever as-
sembly (Fig. 7):
A. Install cable spring to pin on traction lever assem-
bly and secure with retaining ring.
B. Secure the cable housing to the control bracket
with retaining ring.
2. Route traction cable to the gearbox. Install cable to
the gearbox as follows (Fig. 6):
A. Secure cable eyelet to gearbox traction lever with
retaining ring.
B. Position traction cable to the casting slot of gear-
box with a washer and jam nut on each side of the
slot.
3. Adjust traction cable (see Operator’s Manual).
4. Install cable ties to secure traction cable. Attach
spark plug wire to spark plug.

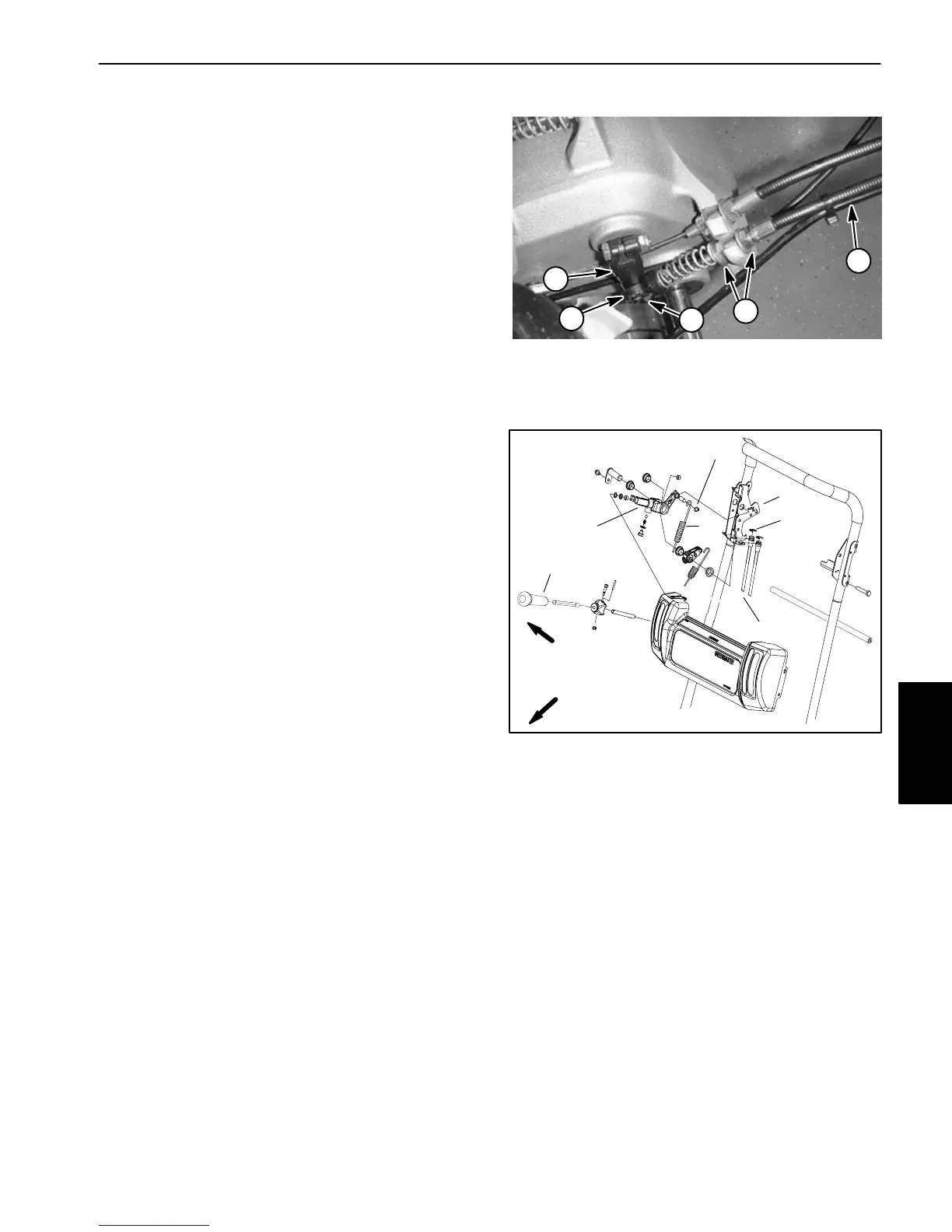

1. Traction cable
2. Cable jam nuts
3. Cable eyelet
4. Gearbox traction lever
5. Retaining ring
Figure 6
1
2
4
3
5
1. Control bracket
2. Traction lever assembly
3. Traction cable spring
4. Retaining ring
5. Cable housing
6. Retaining ring
7. Control knob
Figure 7
1
3
2
6
FRONT
RIGHT
5
4
7
Chassis and
Controls
