Greensmaster Flex 18/21Groomer Page 8 – 2
Specifications

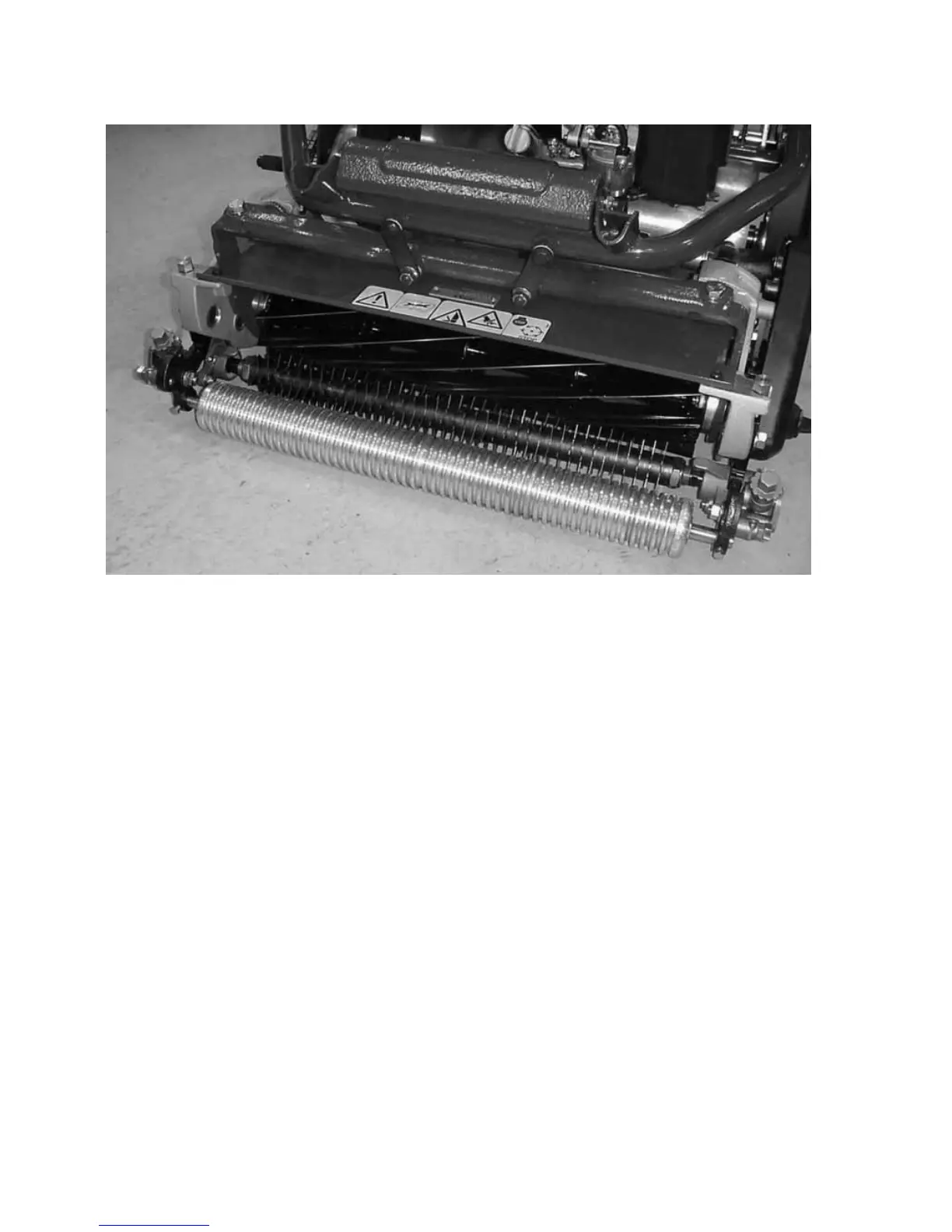

MOUNTING: The groomer drive kit is mounted to the
mower reel bearing housings and frame.
REEL CONSTRUCTION: 2.375 inch (6 cm) diameter,
35 steel blades with 1/2 inch (12.7 mm) blade spacing.
Spacing is also adjustable to 1/4 and 3/4 inch (6.4 and
19.1 mm) spacing by varying the number of blades and
spacers.
GROOMER PENETRATION: From .410 inch (10.4
mm) above ground level to 0.125 inch (3.2 mm) below
ground level, at mowing HOC range of .062 to .296 inch
(1.6 to 7.5 mm).
HEIGHT ADJUSTMENT KNOB: Allows a 0.003 inch
(0.08 mm) increment of height adjustment for each click
of the adjuster.
QUICK UP–DOWN FEATURE: Allows grooming reel to
be raised above the height/depth adjustment for no
grooming while cutting.
WIDTH–OF–GROOMER:
Flex 18 16 inches (40.6 cm).
Flex 21 19 inches (48.3 cm).
