Greensmaster Flex 18/21Page 3 – 8Engine
Engine

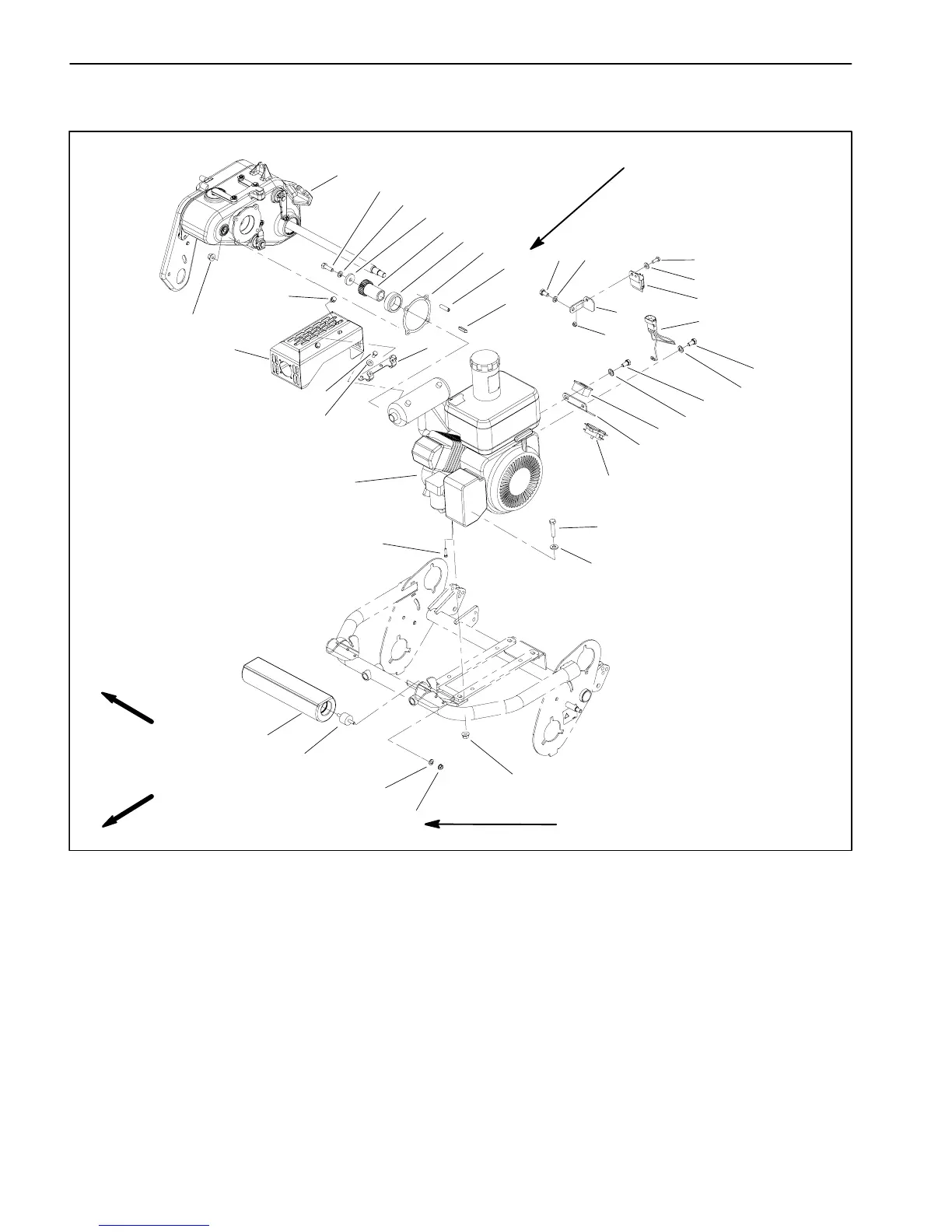

Figure 5
1. Gearbox assembly
2. Flange gasket
3. Engine gear
4. Engine adapter
5. Engine
6. Flat washer (4 used)
7. Flange nut (8 used)
8. Cap screw (4 used)
9. Hourmeter bracket
10. Damper
11. Cap screw (3 used)
12. Wire harness
13. Interlock module
14. Module bracket
15. Throttle cable screw
16. Set screw (4 used)
17. Cap screw
18. Lock washer (2 used)
19. Flat washer
20. Flat washer
21. Lock nut
22. Cap screw
23. Isolator mount (2 used)
24. Jam nut (2 used)
25. Tab washer (2 used)
26. Hourmeter
27. Lock washer (2 used)
28. Muffler guard
29. Cap screw (4 used)
30. Muffler guard bracket (2 used)
31. Square key
32. Washer head screw (4 used)
33. Flat washer (4 used)
34. Hourmeter mounting clip
FRONT
RIGHT
1
17
18
19
3
4
16
32
28
29
33
30
21
11
18
14
13
20
22
11
27
12
11
27
26
9
34
5
15
6
8
10
23
25
24
7
7
2
Loctite #242
7 to 10 in–lb
(0.8 to 1.1 N–m)
31
