Greensmaster Flex 18/21 Page 5 – 3 Electrical System
Special Tools
Order special tools from the TORO SPECIAL TOOLS
AND APPLICATIONS GUIDE (COMMERCIAL PROD-
UCTS).
Some tools may also be available from a local supplier.

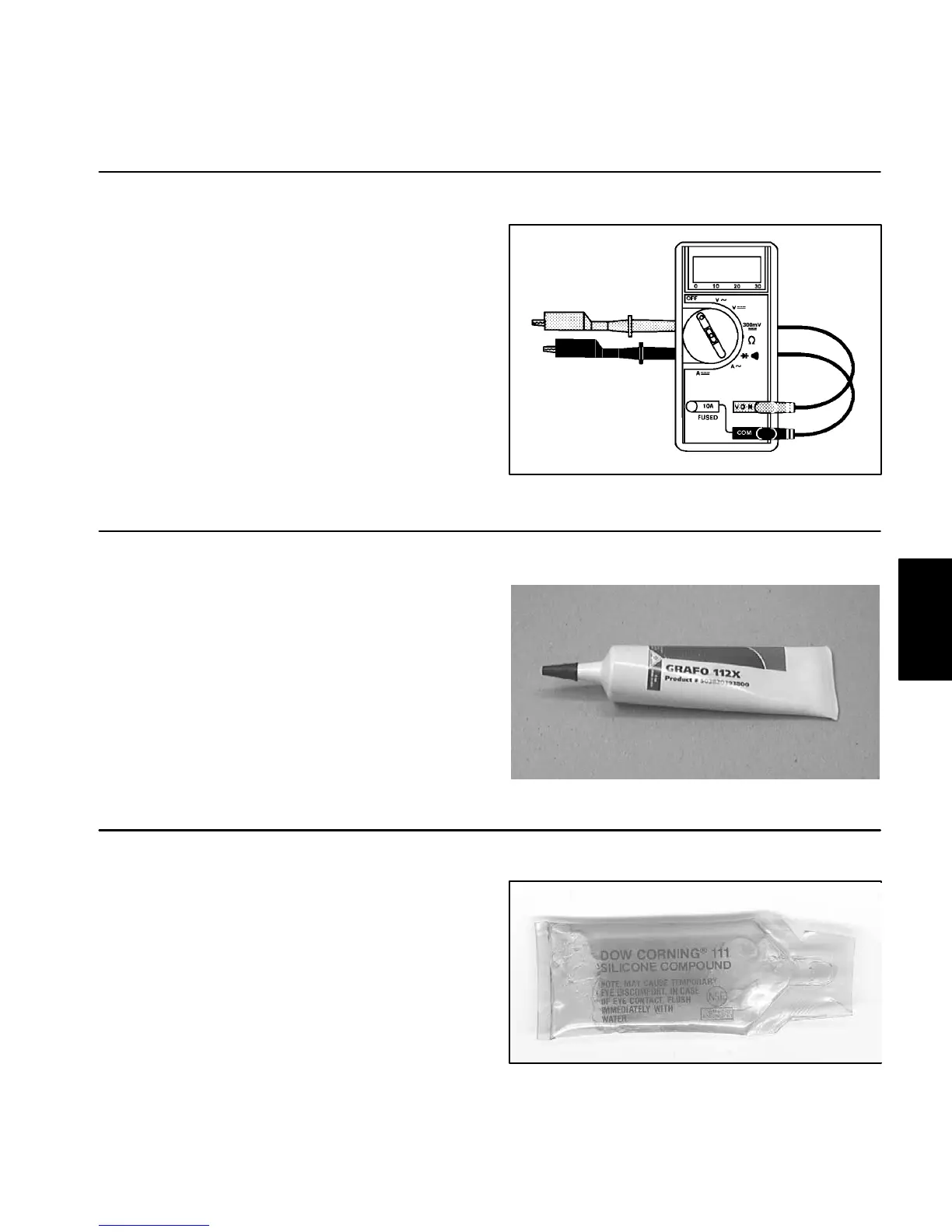

Multimeter
The multimeter can test electrical components and cir-
cuits for current, resistance or voltage.
NOTE: Toro recommends the use of a DIGITAL Volt–
Ohm–Amp multimeter when testing electrical circuits.
The high impedance (internal resistance) of a digital me-
ter in the voltage mode will make sure that excess cur-
rent is not allowed through the meter. This excess
current can cause damage to circuits not designed to
carry it.
Figure 1
Skin–Over Grease
Toro Part Number: 505–165
Special non–conductive grease which forms a light pro-
tective skin to help waterproof electrical switches and
contacts.
Figure 2
Dielectric Gel
Toro Part Number: 107–0342
Dielectric gel should be used to prevent corrosion of
connection terminals. To ensure complete coating of ter-
minals, liberally apply gel to both component and wire
harness connector, plug connector to component, un-
plug connector, reapply gel to both surfaces and recon-
nect harness connector to component. Connectors
should be thoroughly packed with gel for effective re-
sults.
