Lubrication
GreasingtheBearingsand
Bushings
ServiceInterval:Every50hours—Greasethe
bearingsandbushings.When
operatingthemachineinextremely
dustyanddirtyconditions,lubricate
thebearingsandbushingsdaily.
Every400hours/Yearly(whichevercomes
rst)—Greasetherear-axlebearings.
Greasespecication:No.2lithiumgrease.
Important:Dustyanddirtyoperatingconditions
couldcausedirttogetintothebearingsand
bushings,resultinginacceleratedwear.
Note:Lubricategreasettingimmediatelyafterevery
washing,regardlessofintervalspecied.
1.Wipegreasettingclean.
2.Pumpgreaseintothebearingorbushing.
3.Wipeupexcessgrease.
Thebearingandbushinglubricationpointsareas
follows:

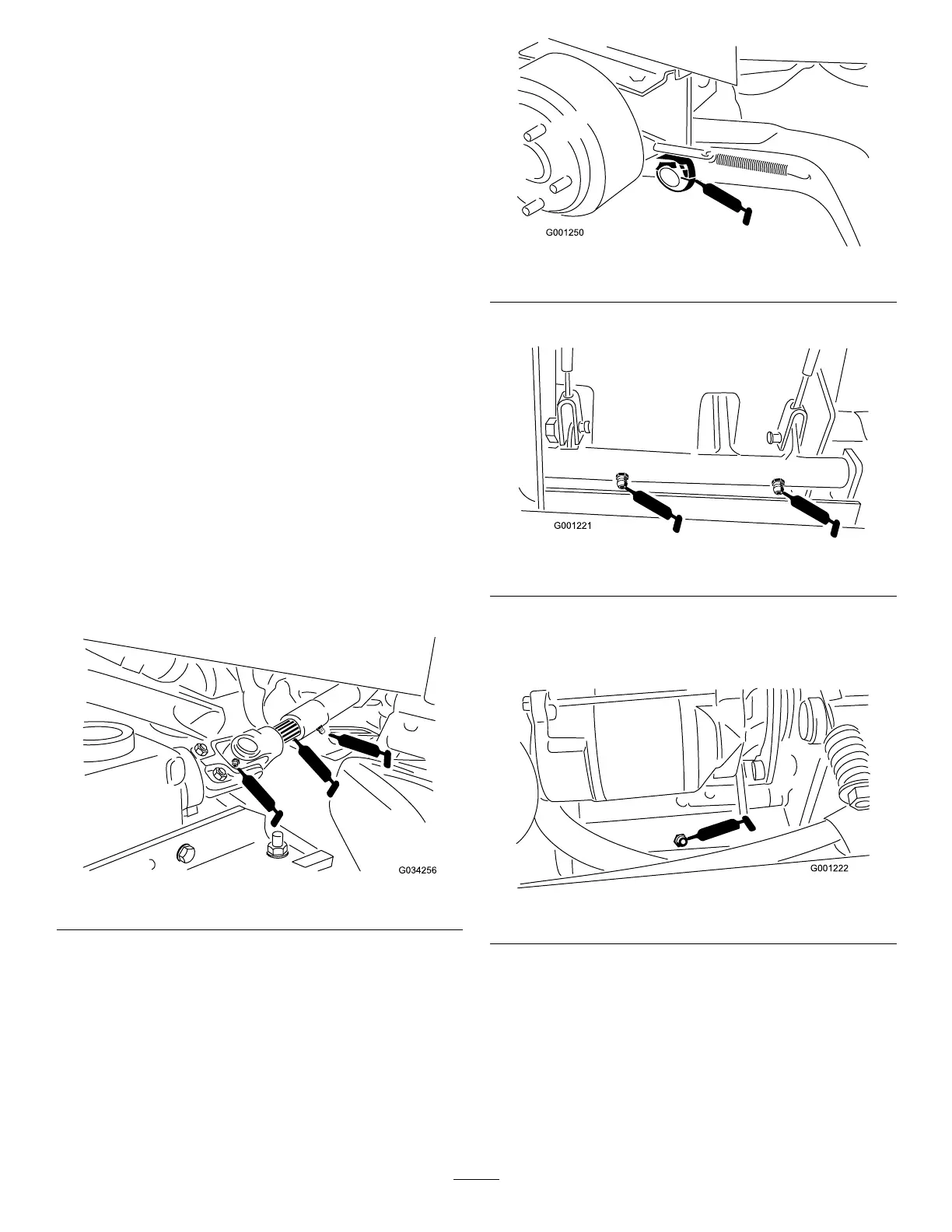

•PTOuniversalshaft(Figure34)
g034256
Figure34
•Lift-armpivotbushings(Figure35)
g001250
Figure35
•Brakepivotbushings(Figure36)
g001221
Figure36
•Brakecables(drivewheelandbrakepedalends)
(Figure36)
•PTOtensionpivot(Figure37)
g001222
Figure37
•RearPTObearing(Figure37)
•Rearwheelspindlebushings(Figure38)
