CheckingtheHoodScreen
andRadiatorforDebris
ServiceInterval:BeforeeachuseordailyChecka
thehoodscreenandradiatormore
frequentlyinextremelydustyand
dirtyconditions.
Topreventtheenginefromoverheating,keepthe
hoodscreenandradiatorclean.Checkthescreen
andradiatorforbuildupofgrass,dust,anddebris,
andifnecessary,cleananydebrisofftheseparts;
refertoCheckingtheHoodScreenandRadiatorfor
Debris(page58).
CleaningtheHoodScreen
andRadiator
ServiceInterval:Every200hours—Inspectthe
cooling-systemhoses.
Every1,500hours—Replaceanymovinghoses.
Every1,500hours—Flushandreplacethe
cooling-systemuid.
Note:IfthePTOshutsoffduetohighengine
temperature,rstcheckthehoodscreenandradiator
foranexcessivebuildupofdebris.Cleanthesystem
beforeoperatingthemachine.Donotshutoffthe
engineimmediately;allowtheenginetocoolby
runningitwithoutaload.
Cleantheradiatorasfollows:
1.Removethehood.
2.Workingfromthefansideoftheradiator,blow
withlowpressure,172kPa(25psi),compressed
air(donotusewater).Repeatthisstepfrom
thefrontoftheradiatorandagainfromthefan
side.
3.Afterthoroughlycleaningtheradiator,cleanany
debristhatmayhavecollectedinthechannelat
theradiatorbase.
4.Cleanthescreenandinstallthehoodontothe
machine.
BrakeMaintenance
AdjustingtheService
Brakes
ServiceInterval:Aftertherst10hours
Aftertherst50hours
Every50hours
Adjusttheservicebrakeswhenthereismorethan25
mm(1inch)offreetravelofthebrakepedalsorwhen
thebrakesdonotworkeffectively.Freetravelisthe
distancethatthebrakepedalmovesbeforeyoufeel
brakingresistance.
Aftertherst10hoursofoperation,youshould
needtoadjustthebrakesonlyafterconsiderable
usethereafter.Youcanperformtheseperiodic
adjustmentswherethebrakecableconnectstothe
bottomofthebrakepedals.Whenthecableisno
longeradjustable,youcanadjustthestarnutonthe
insideofthebrakedrumtomovethebrakeshoes
outward.However,youwillneedtoadjustthebrake
cablesagaintocompensateforthisadjustment.
1.Releasethelockarmfromtheright-brakepedal
sothatbothpedalsoperateindependentofeach
other.
2.Toreducethefreetravelofthebrakepedals,
looseningthefrontjamnutsatthethreadedend
ofthebrakecable(Figure69).

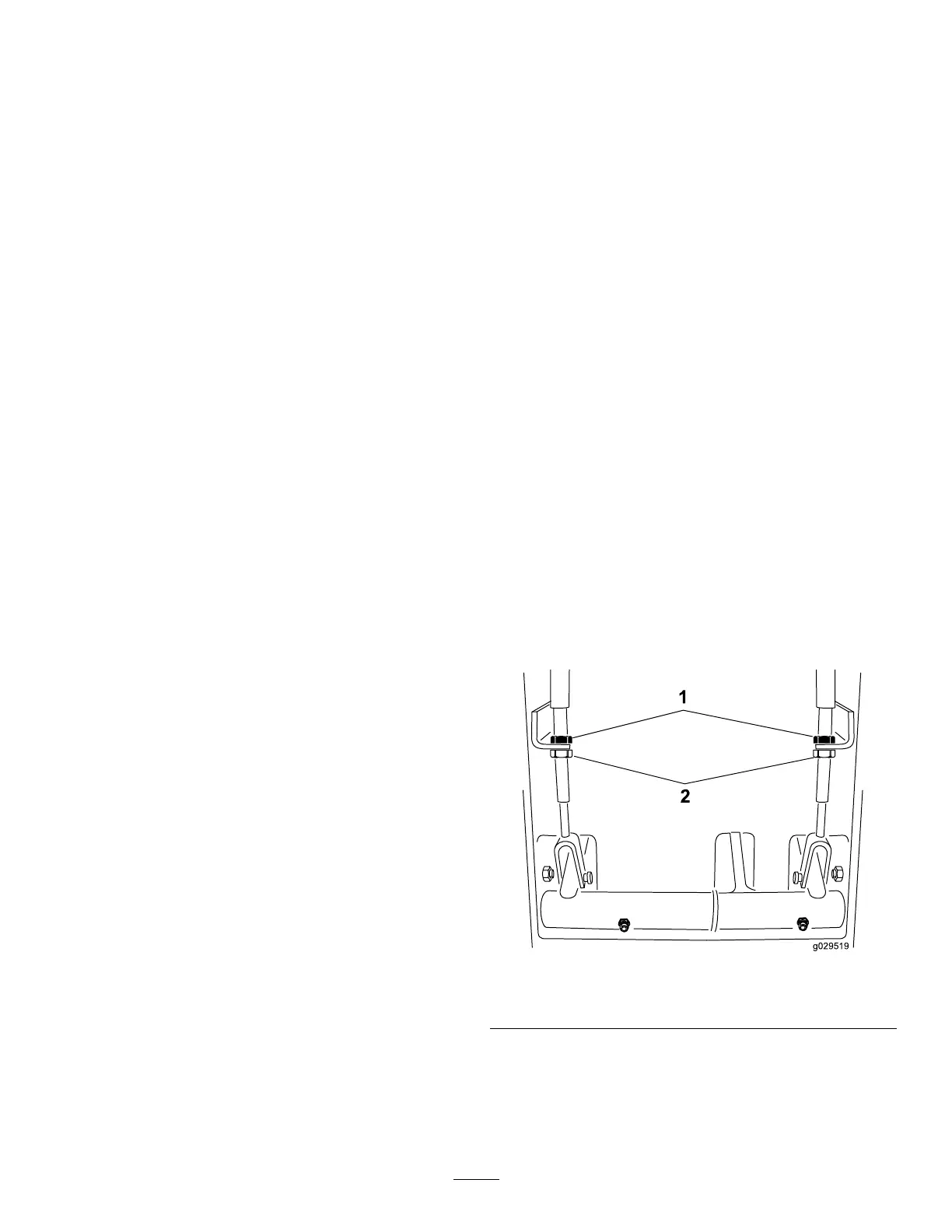

g029519
Figure69
1.Rearjamnuts2.Frontjamnuts
3.Rotatetherearjamnutstomovethecable
rearwarduntilthebrakepedalshave13mmto
25mm(1/2to1inch)offreetravel.
4.Whenthefreetravelofthebrakepedalsis
adjusted,tightenthefrontjamnuts.
58
