2. Remove two wing nuts and hold down strap that secures
battery (Fig. 5). Lift battery out of chassis. Keep wing
nuts and hold down strap in safe place for later use.
1
2
1
3
4

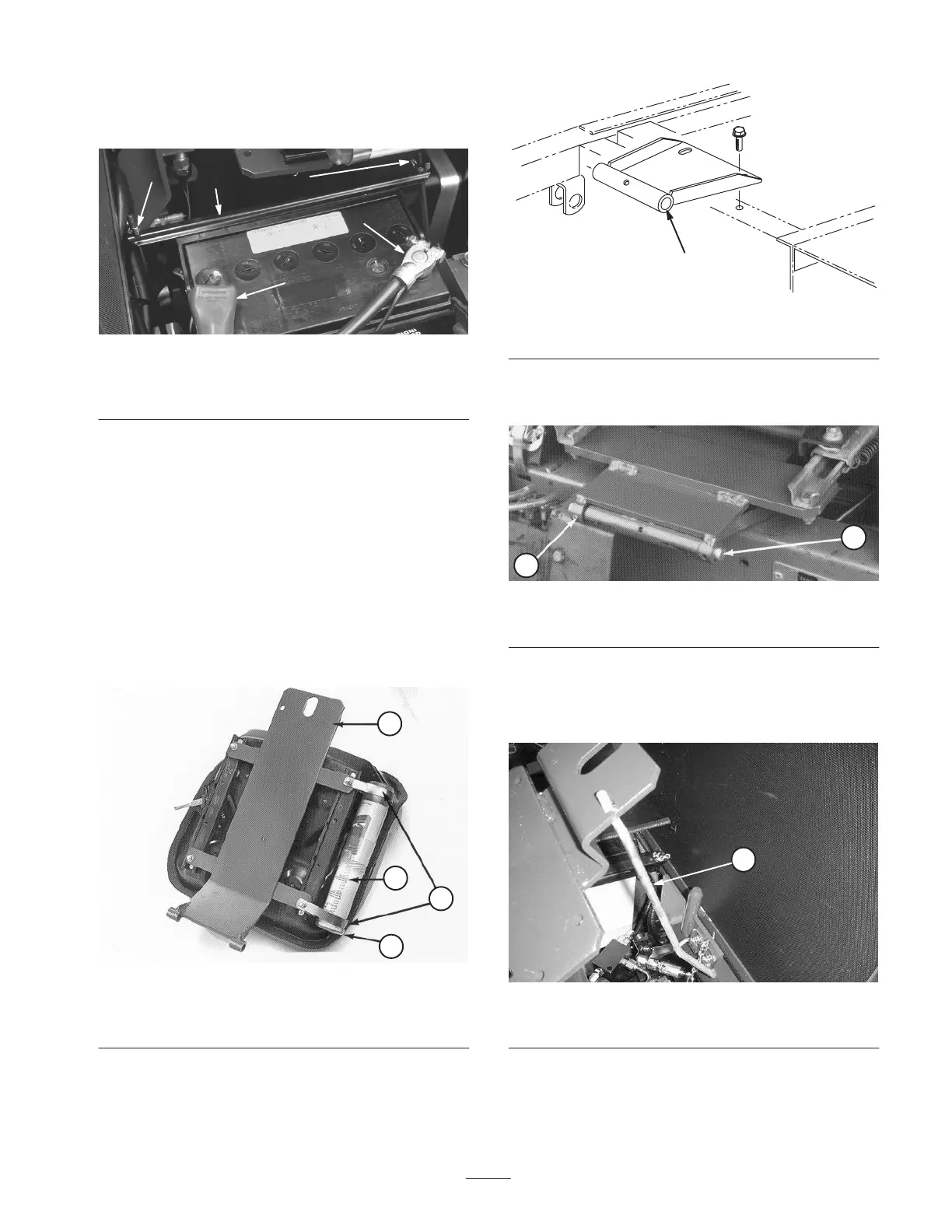

Figure 5
1. Wing nuts
2. Hold down strap
3. Positive terminal
4. Negative terminal
Installing the Seat
The machine is shipped without the seat assembly. Either
optional Seat Kit, Model No. 30623 or 30625 must be
installed.
Seat Kit, Model No. 30623, Standard Seat
1. Loosely secure (2) R-clamps to right side of seat bottom
with 2 capscrews and flat washers supplied in kit
(Fig. 6). Install manual tube into R-clamps and tighten
capscrews (Fig. 6).
1
2
3
4
Figure 6
1. R-clamps
2. Seat support
3. Manual tube
4. Cap
2. Mount seat pivot bracket to frame with 2 flange screws
supplied in kit (Fig. 7)
1
Figure 7
1. Seat pivot bracket
3. Mount seat and seat support to seat pivot bracket with
pivot shaft and roll pin (Fig. 8).
1
2
Figure 8
1. Pivot shaft 2. Roll pin
4. Hold seat up with seat support rod (Fig. 9).
5. Plug wire harness connector into seat switch connector
on bottom of seat.
1
Figure 9
1. Seat support rod
6. Disengage seat support rod and pivot downward. Pivot
seat down and push lynch pin through seat latch stud.
Flip wire end of pin over latch stud (Fig. 10).
