Toro Groundsmaster 328-D User Manual

49

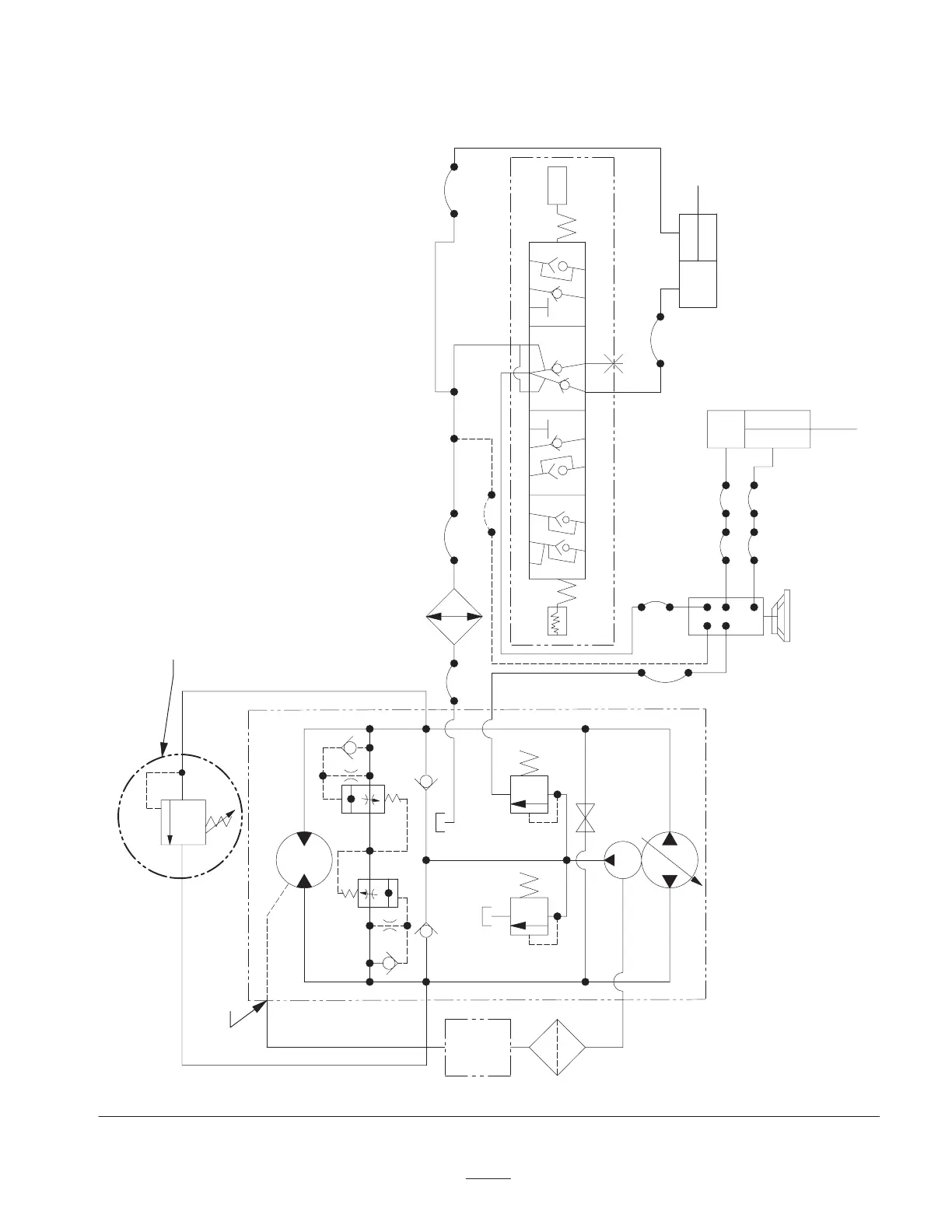

Hydraulic Schematic
(Models 30627 & 30631 only)
LIFT CYLINDER
2.50 BORE
3.25 STROKE
STEERING CYLINDER 1.50 DIA. BORE 7.15 STROKE
STEERING VALVE 4.95 CU. IN. DISP.
TRANSMISSION IMPLEMENT
RELIEF: 700-900 PSI
CHARGE PUMP .33 IN /REV.
1/4
MAN.
1/4
T
P
3/8
1/2
3/8
1/4 1/4
1/4 1/4
R
L
IN
OUT
1/2
1/2
70-
150
PSI
700-
900
PSI
RES.
(FRONT
AXLE)
CASE DRAIN THRU BEARING
AT OUTPUT SHAFT OF
TRANSMISSION
AB
AUX.
3
5200 PSI
NOT IN 2 WHEEL DRIVE MODELS
