Adjusting Steering Stops
(Models 30627 & 30631 only)
The rear axle steering stops help prevent over travel of the
steering cylinder in case of impact on rear wheels. The
stops should be adjusted so there is .090 inch clearance
between the bolt head and the knuckle on the axle when the
steering wheel is completely turned left or right.
1. Thread the bolts in or out until the .090 inch clearance
is attained (Fig. 66).
1

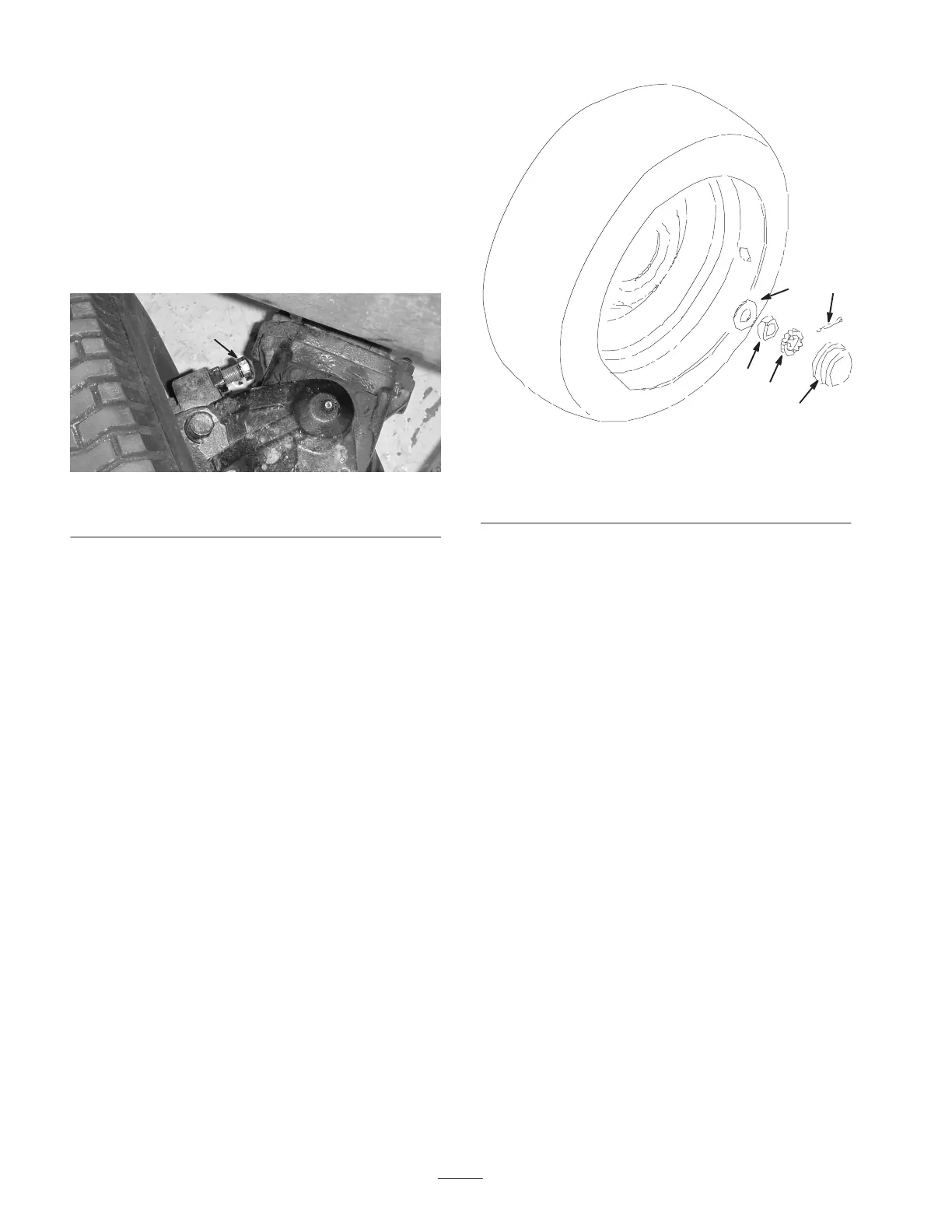

Figure 66
1. Steering stop (Right side shown)
Adjusting the Rear Wheel
Bearings
(Models 30626 & 30630 only)
1. Jack up rear of machine until wheel is off shop floor.
Use jack stands or block the machine to prevent it from
accidentally falling.
2. Remove dust cap from end of wheel spindle. Also
remove cotter pin securing retainer (Fig. 67).
3. Tighten the jam nut (Fig. 67) to approximately
75–100 in–lbs using a hand wrench.
4. Turn the wheel hub to seat the bearings.
5. Loosen the jam nut until it is away from the flatwasher
and the wheel hub has end play.
6. Tighten the jam nut to 15–20 in–lbs while rotating the
the wheel hub.
1
3
4
2
5
Figure 67
1. Dust cup
2. Cotter pin
3. Nut retainer
4. Jam nut
5. Flatwasher
7. Place the nut retainer over the jam nut. If the cotter pin
hole is not aligned with the retainer slot, remove the
retainer nut and reorientate until alignment occurs.
8. Insert cotter pin. The wheel hub must not have any free
play.
9. Install dust cap on end of wheel spindle.
10. Remove jack stands and lower machine to shop floor.
Adjusting the Brakes
Adjust the service brakes when there is more than 1 in.
(25 mm) of “free travel” of the turn pedals, or when the
brakes do not work effectively. Free travel is the distance
the brake pedal moves before braking resistance is felt.
The brakes should only need adjusting after considerable
use. These periodic adjustments can be performed where
the brake cables connect to the brake pedal mount. When
the cables are no longer adjustable, the star nut on the
inside of the brake drum must be adjusted to move the
brake shoes outward. However, the brake cables must be
adjusted again to compensate for this adjustment.
