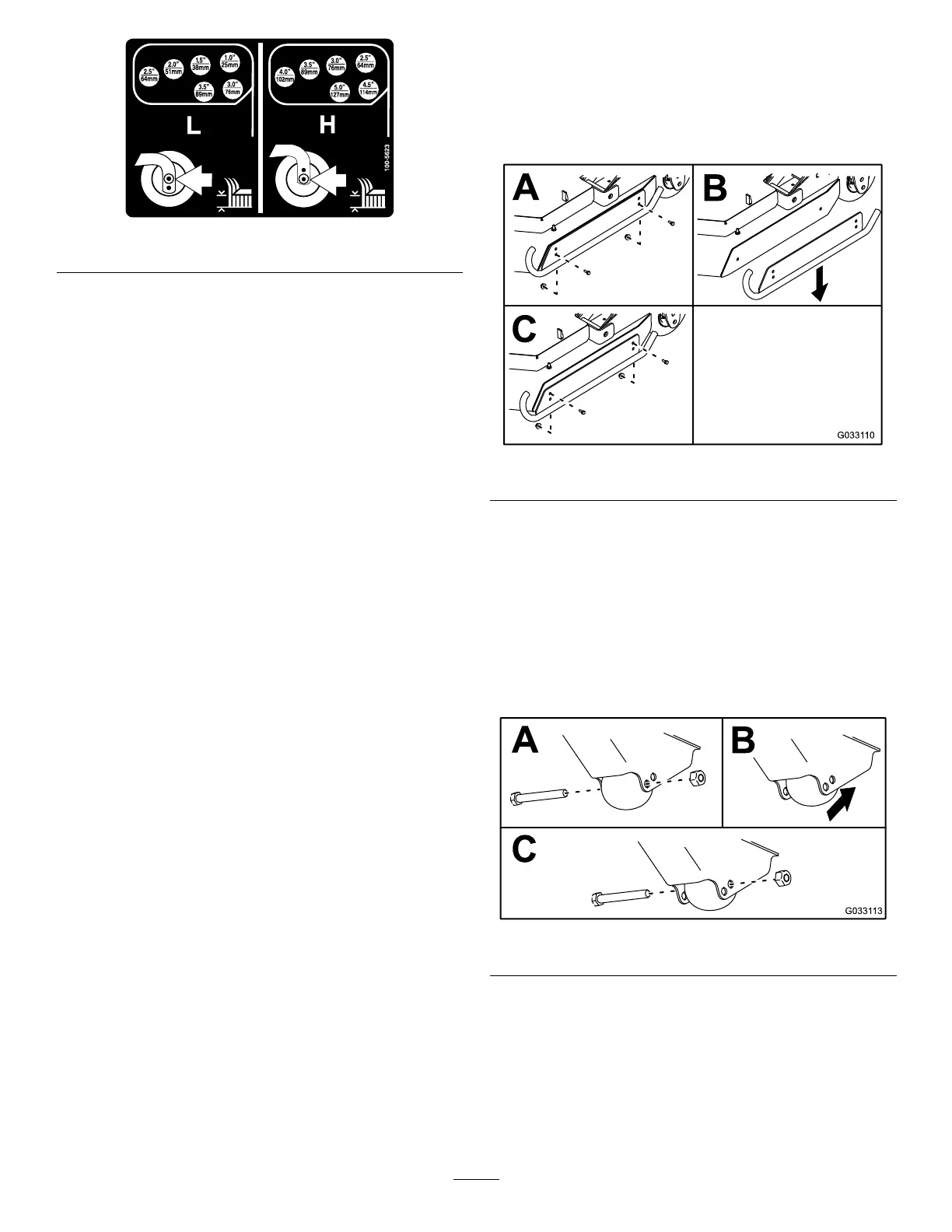

Toro Groundsmaster 4100 User Manual

decal100-5623nc
Figure24
8.Inserttheclevispinsandinstallthehairpin
cotters.
9.Rotatethetensionrodcounterclockwise(nger
tight)toputtensiononadjustment.
AdjustingtheSkids
Mounttheskidsinthelowerpositionwhenoperating
atheightsofcutgreaterthan64mm(2-1/2inches)
andinthehigherpositionwhenoperatingatheights
ofcutlowerthan64mm(2-1/2inches).
g033110
Figure25
AdjustingtheMower-Deck
Rollers
Themower-deckrollersshouldbemountedinthe
lowerpositionwhenoperatingataheight-of-cut
greaterthan64mm(2-1/2inches)andinthehigher
positionwhenoperatingataheight-of-cutlowerthan
64mm(2-1/2inches).
g033113
Figure26
28
