Toro Groundsmaster 4100 User Manual

Wing-Deck-LiftAssemblies

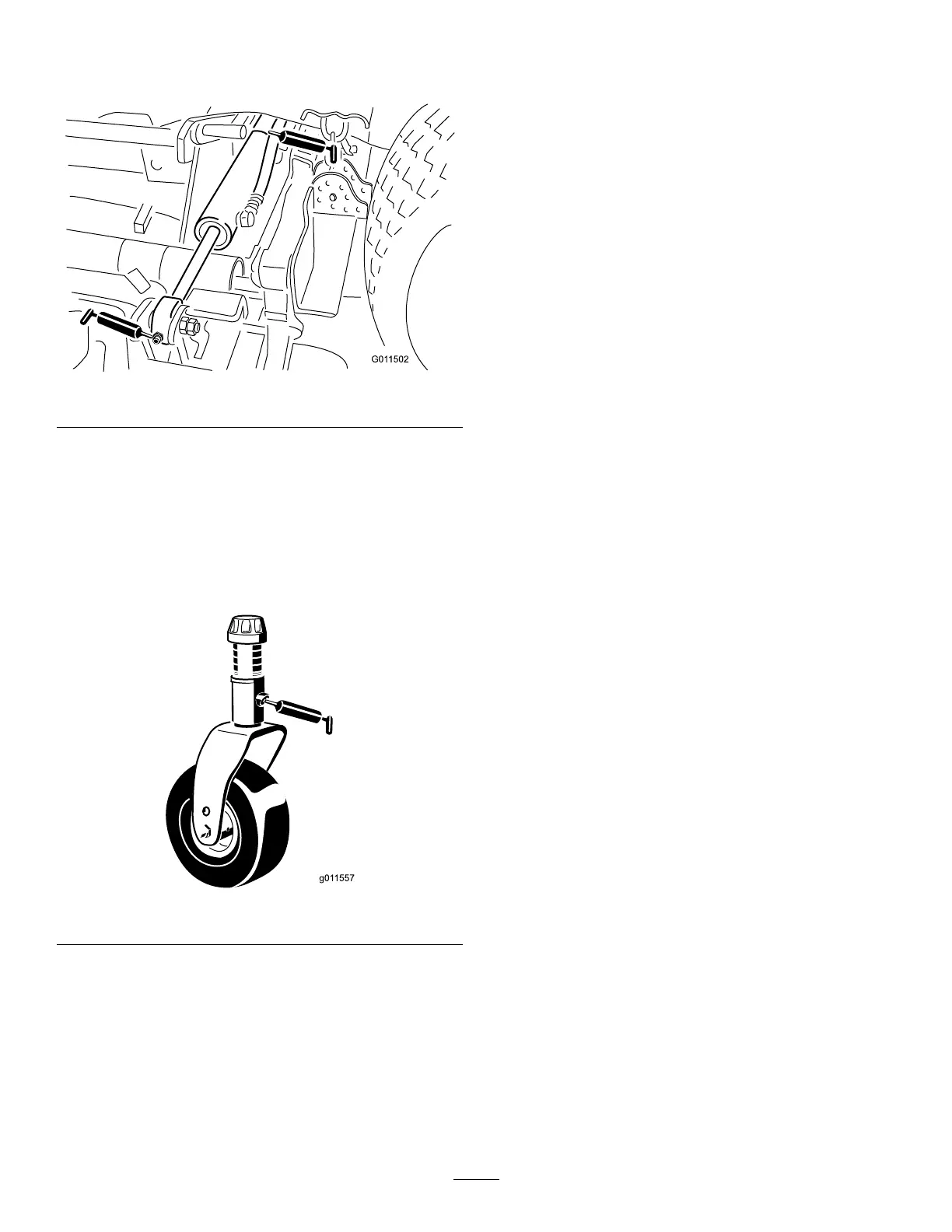

The4wingdeck-liftcylinder(Figure84)
g011502
Figure84
WingMowerDecks
•1caster-fork-shaftbushing(Figure85)
•2(eachside)spindle-shaftbearings—located
underthepulley
•1idler-arm-pivotbushings—locatedontheidler
arm
g011557
Figure85
EngineMaintenance
EngineSafety
•Shutofftheengineandremovethekeybefore
checkingtheoiloraddingoiltothecrankcase.
•Donotchangethegovernorspeedoroverspeed
theengine.
ServicingtheEngineOil
OilSpecication
Usehigh-quality,low-ashengineoilthatmeetsor
exceedsthefollowingspecications:
•APIservicecategoryCJ-4orhigher
•ACEAservicecategoryE6
•JASOservicecategoryDH-2
Important:UsingengineoilotherthanAPICJ-4
orhigher,ACEAE6,orJASODH-2maycausethe
dieselparticulateltertoplugorcauseengine
damage.
Usethefollowingengineoilviscositygrade:
•Preferredoil:SAE15W-40(above0°F)
•Alternateoil:SAE10W-30or5W-30(all
temperatures)
ToroPremiumEngineOilisavailablefromyour
authorizedT orodistributorineither15W-40or10W-30
viscositygrades.SeethePartsCatalogforpart
numbers.
CheckingtheEngine-OilLevel
ServiceInterval:Beforeeachuseordaily
Theengineisshippedwithoilinthecrankcase;
however,theoillevelmustbecheckedbeforeand
aftertheengineisrststarted.
Important:Checktheengineoildaily.Ifthe
engine-oillevelisabovetheFullmarkonthe
dipstick,theengineoilmaybedilutedwithfuel;
IftheengineoillevelisabovetheFullmark,
changetheengineoil.
Thebesttimetochecktheengineoiliswhenthe
engineiscoolbeforeithasbeenstartedfortheday.
Ifithasalreadybeenrun,allowtheoiltodrainback
downtothesumpforatleast10minutesbefore
checking.IftheoillevelisatorbelowtheAddmark
onthedipstick,addoiltobringtheoilleveltotheFull
mark.Donotoverlltheenginewithoil.
Important:Keeptheengine-oillevelbetweenthe
upperandlowerlimitsonthedipstick;theengine
mayfailifyourunitwithtoomuchortoolittleoil.
63
