CleaningtheCabPre-Filter
Thecabpre-lterpreventslargedebris,suchasgrass
andleaves,fromenteringthecablters.
1.Rotatethescreencoverdown.
2.Cleanthelterwithwater.
Important:Donotuseapressurewasher.
Note:Ifthelterhasahole,tear,orother
damage,replacethelter.
3.Allowthepre-ltertodrybeforeinstallingitinto
themachine.
4.Rotatethelterscreenaroundthetabsuntil
thelatchlocksintothelatch-mountassembly
(Figure135).

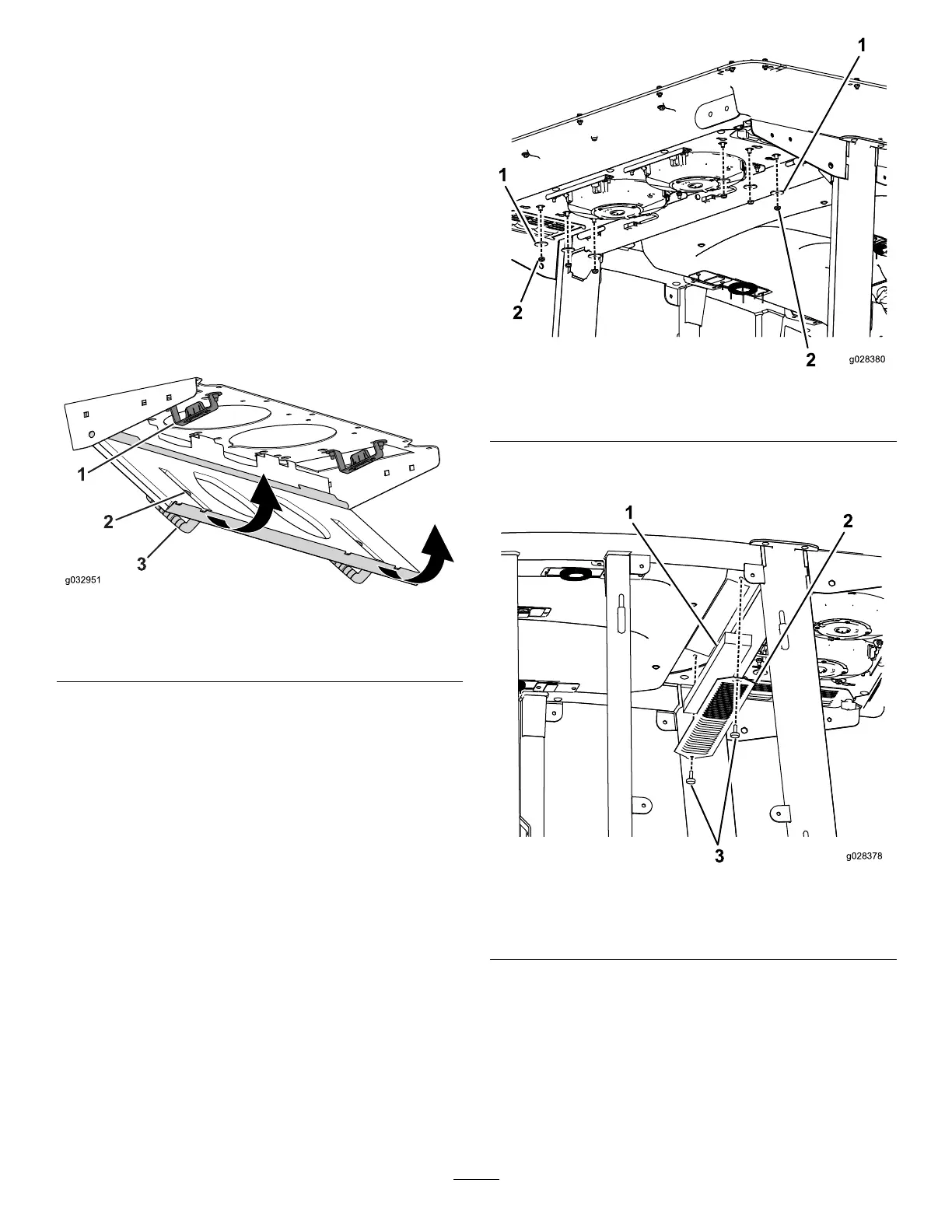

g032951
Figure135
1.Latch-mountassembly
3.Screencover
2.Latch
Cleaningthe
Air-ConditioningCoil
ServiceInterval:Every250hours(Cleanmore
frequentlyinextremelydustyordirty
conditions)
1.Shutofftheengineandremovethekey.
2.Removethe6nutsandwashersfromthebottom
oftherearofthecab(Figure136).
g028380
Figure136
1.Washer2.Nut
3.Removethecabinroofofthecabbyremoving
the22boltsthatsecuretheroof(Figure137).
g028378
Figure137
1.Cabinroof
3.Air-conditioningcoils
2.Airlters
4.Removetheairlters(Figure137).
5.Removeandcleantheair-conditioningcoils
(Figure137).
6.Replacetheair-conditioningcoils,airltersand
cabinroof.
87
