Setup
Note: Determine the left and right sides of the machine from the normal operating position.
Loose Parts
Note: Use this chart as a checklist to ensure that all parts have been received. Without these parts, total setup cannot be
completed.
Description
Qty. Use
Wheel
Lug nut
3
12
Installing the rear wheels
Ignition key 1 Use in ignition switch.
Hose adapter 1 Mount to quick coupler on side of machine.
Spanner wrench 1 Use for installation and removal of water filter.
Parts catalog 1
Operator’s manual 1 Read before operating the machine.
Registration card 1 Fill out and return to Toro.
Installing the Rear Wheels
1. Remove the wheels from the shipping pallet.
2. Mount the wheels to the hubs with the lug nuts
(supplied in loose parts) (Fig. 1) and torque the nuts to
45–55 ft.-lb. (61–75 N⋅m).
3. Remove any shipping blocks or braces, which may
obstruct machine removal from the pallet.
Important Refer to the Before Operating section in this
manual, page 12, for instructions on preparing the machine
for operation.
1
2

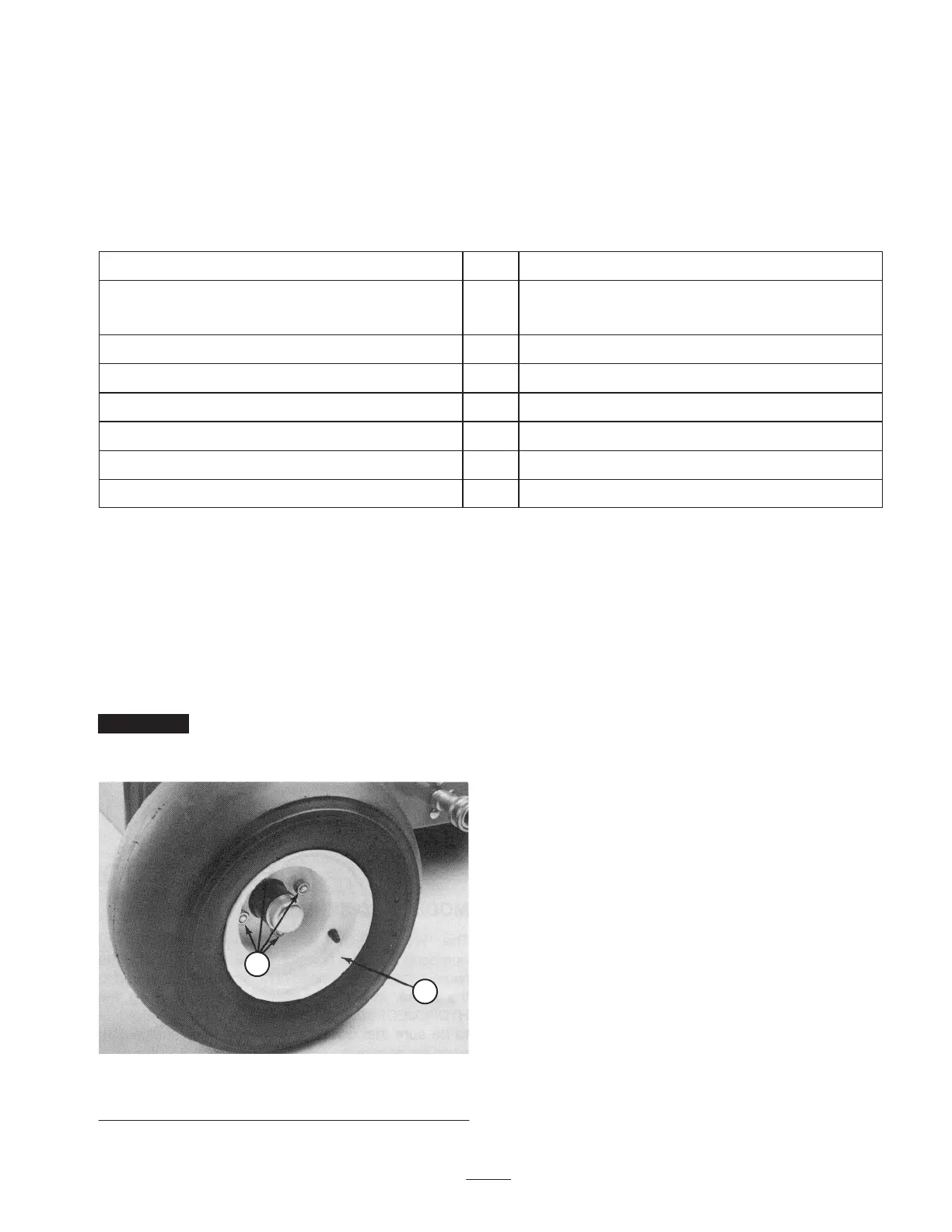

Figure 1
1. Wheel 2. Lug nuts
