34

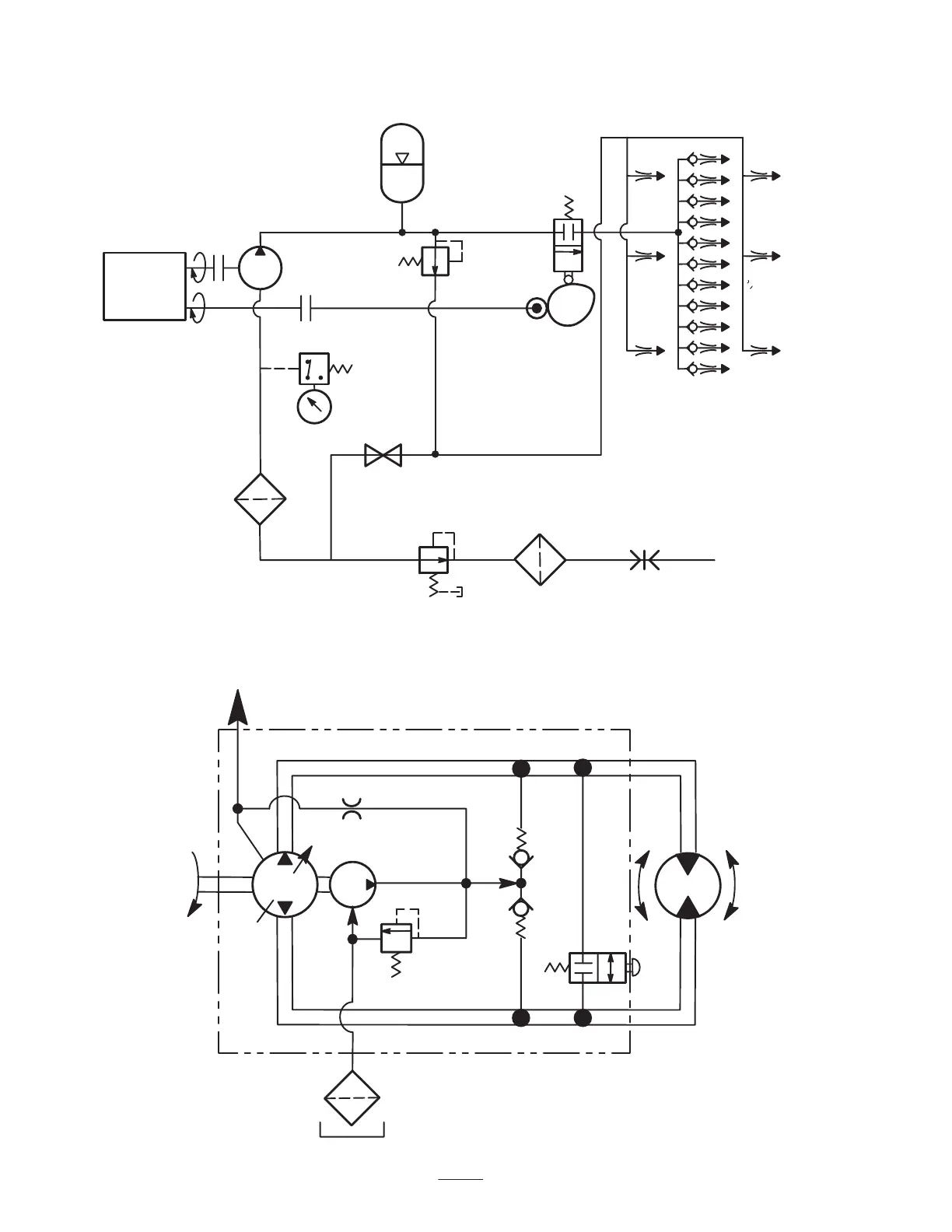

Water System Schematic
WATER SUPPLY
QUICK COUPLER
ENGINE
ELECTRIC
CLUTCH
WATER
PUMP
ELECTRIC
BRAKE CLUTCH
PRESSURE
SWITCH
20 PSI - ON
10 PSI - OFF
PRESSURE GAUGE
SPRAY WASH
VALVE
ACCUMULATOR
2500 PSI
NITROGEN PRE-CHARGE
WATER
VALVE
RELIEF VALVE
5000 PSI
GEARBOX CAM
HIGH PRESSURE
AERATION NOZZLES
ROLLER WASH
NOZZLES
ROLLER WASH
NOZZLES
PRE-FILTER
FILTER
PRESSURE REDUCING
VALVE
Hydraulic Schematic
PUMP
FILTER
MOTOR
