Toro Hydroject 3000 User Manual

31
8. Loosen the jam nuts and adjust the LOWER speed rod
(Fig. 34) until the traction wheel rotates at 20–22 RPM.
Tighten the jam nuts.
9. Move the traction handle DOWN to the full speed
position.
10. Adjust the UPPER speed rod (Fig. 34) until the traction
wheel rotates at 20–22 RPM. Tighten the jam nuts.
1
2
3

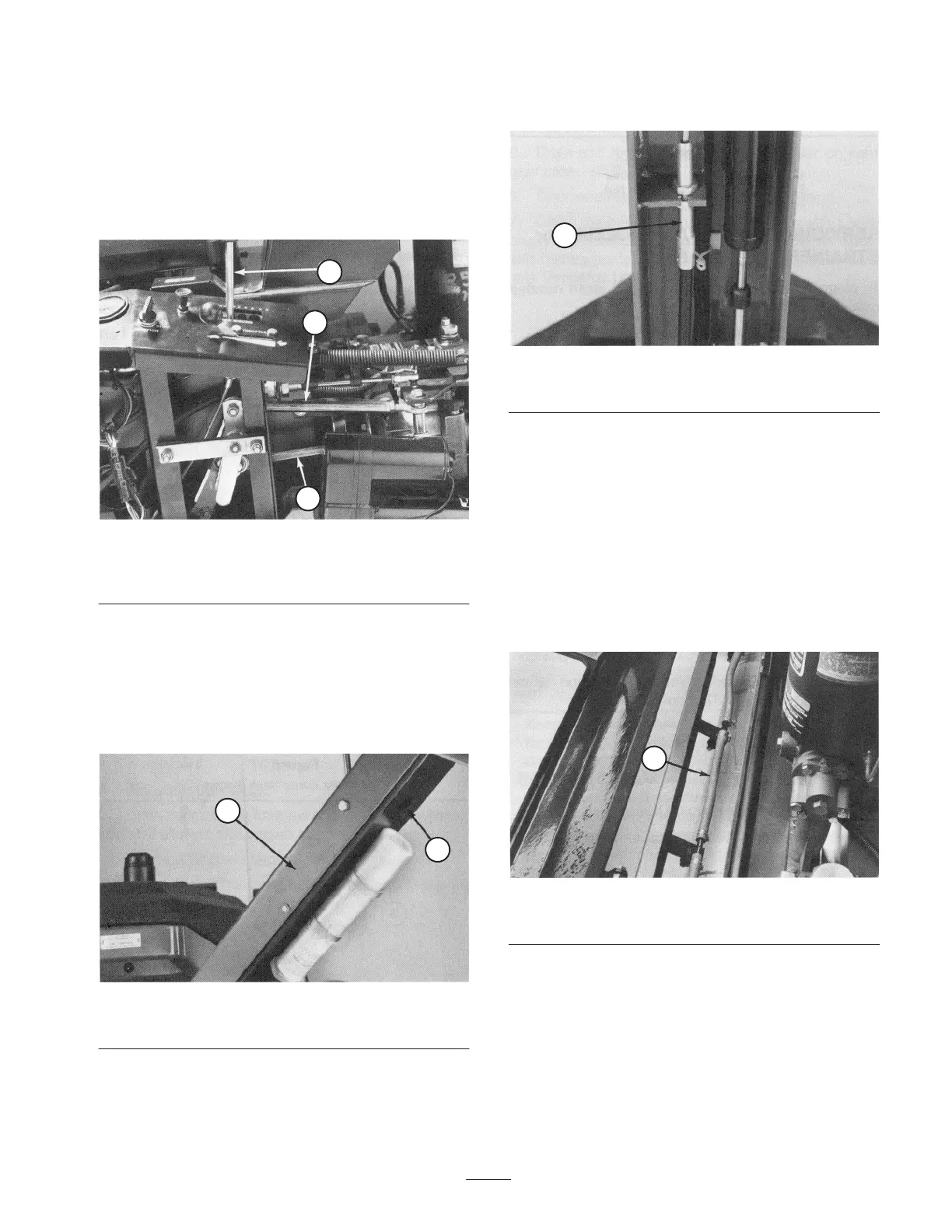

Figure 34
1. Speed control lever
2. Lower control rod
3. Upper control rod
Adjusting the Parking Brake
Adjust the parking brake every 400 hours.
1. Remove the screws securing the cover to the underside
of the handle (Fig. 35). Remove the cover.
1
2
Figure 35
1. Cover 2. Handle
2. Loosen the upper jam nut securing the brake cable to
the bracket (Fig. 36).
1
Figure 36
1. Brake cable
3. Tighten the lower jam nut until 25 to 30 pounds of force
are required to actuate the brake lever. Tighten the jam
nut.
4. Install the cover to the underside of the handle.
Adjusting the Roller Spray
Wash System
If the spray wash system (Fig. 37) on the rollers needs to be
adjusted, proceed as follows:
1
Figure 37
1. Roller spray wash system
1. Loosen the cap on the bottom of the fitting (Fig. 38).
2. Rotate the nozzle so that the slot in the tip is parallel to
the roller.
3. Tighten the cap and check the adjustment.
