Input Power Connection - Indoor Models
NOTE: Unlike most indoor-type controller models, the TMC-424E-ID model incorporates an internal
transformer. A Class C power cord and strain relief are supplied for connection of the transformer
terminal block to a grounded wall outlet.
1. Remove the transformer compartment
cover secured by two phillips screws.

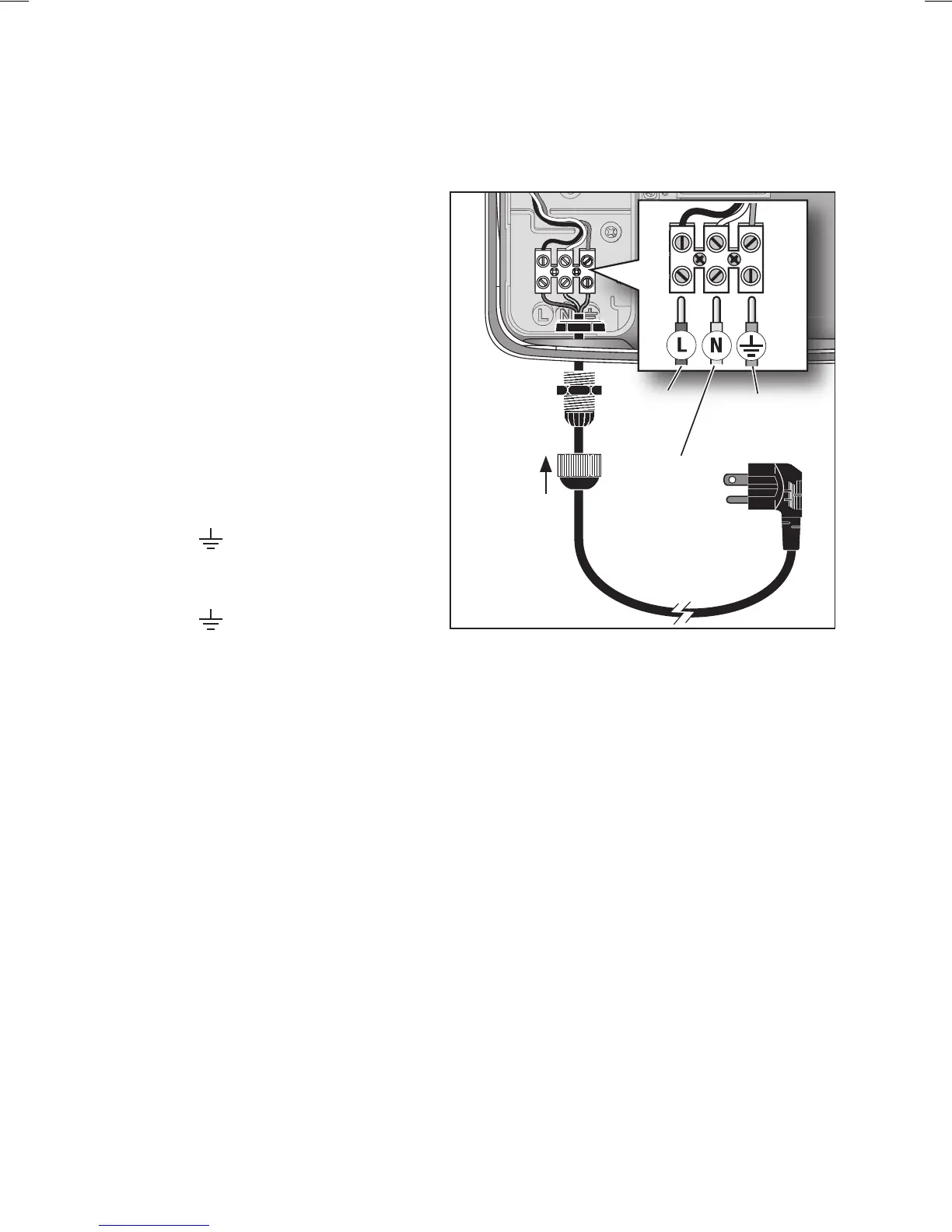

2. Referring to the illustration, install the strain
relief and tighten securely using appropriate
hand tools.
NOTE: Power cord assembly will vary by
controller model.
3. Insert the power cord through the strain
relief.
4. Connect the power cord wires
to the terminal block as follows:
120 VAC Models:
Black to L, White to N and Green
to ground .
230 VAC Models:
Brown to L, Blue to N and Green/Yellow
to ground .
5. Tighten the bottom strain relief nut using an appropriate hand tool. Pull lightly on the power
cord to confirm proper retention.
Black or
Brown
White or
Blue
Green/
Yellow
