Introduction
TV back panel connections
9 INPUT—Changes the source you are viewing. Press it
repeatedly to change from one source to the next.
10 USB port—Accesses JPEG or MP3 files, or updates TV
firmware.
TV back panel connections
For explanations of cable types and connections, see “Overview of
cable types” on page 21.

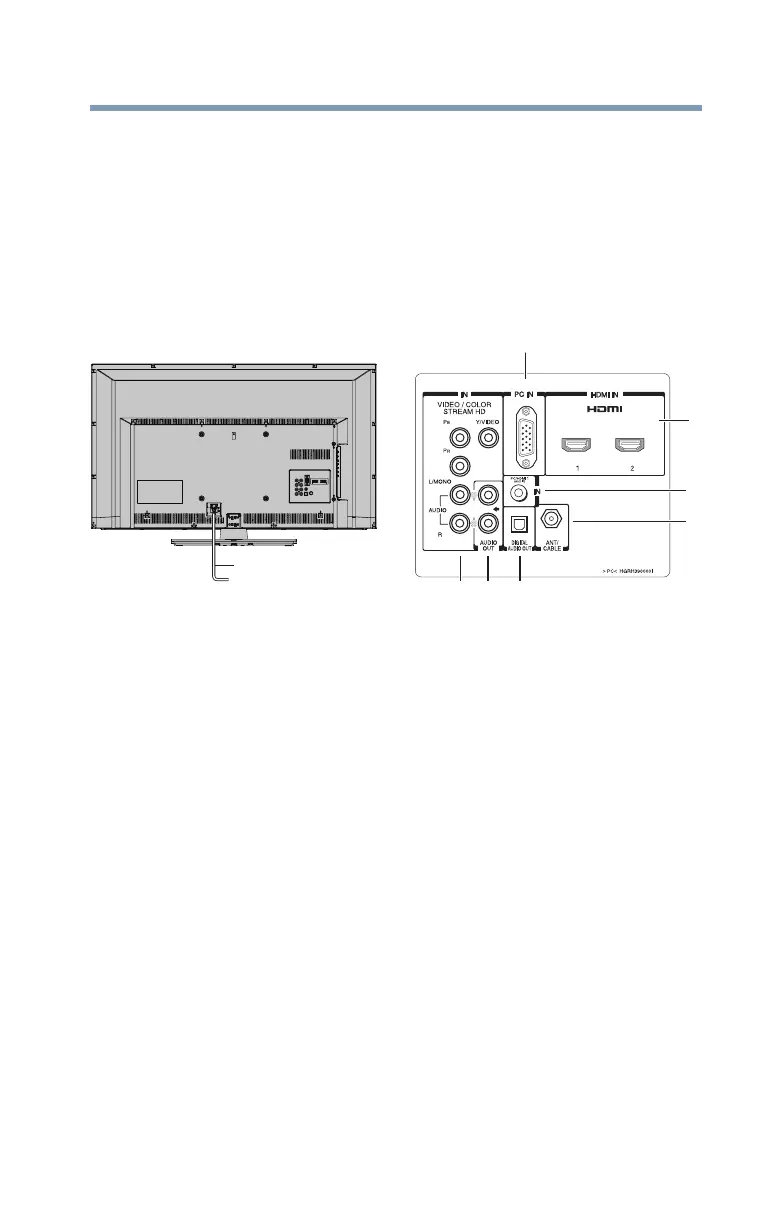

(Sample Illustration) Back panel connections
1 PC IN—For use when connecting a personal computer.
2 HDMI
®
IN—High-Definition Multimedia Interface input
receives digital audio and uncompressed digital video from an
HDMI
®
device or uncompressed digital video from a DVI
device. HDMI
®
connection is necessary to receive 1080p
signals.
3 PC/HDMI-1 (Audio) IN—PC audio input terminal is shared
with an HDMI-1 analog audio input terminal, and its use can
be configured in the Audio Setup menu, see “Setting the PC
Audio” on page 94.
4 ANT/CABLE—Antenna input that supports analog (NTSC)
and digital (ATSC) off-air antenna signals and analog and
digital cable TV (QAM) signals.
5 Digital AUDIO OUT—Optical audio output in Dolby
®
Digital
or PCM (pulse-code modulation) format for connecting an
external Dolby
®
Digital decoder, amplifier, or home theater
system with optical audio input.
6 ANALOG AUDIO OUT—Analog audio outputs for
connecting an audio amplifier.
