• Before connecting any external equipment, turn off all
main power switches�
• The unauthorized recording of TV programmes, DVDs,
video tapes and other materials may infringe upon the
provisions of copyright law�
•
o
(1) connection: Use for the A/V adaptor cable
(supplied) (22-pins: black/3-pins: yellow, white and
red)�
•
o
(2) connection: Use for the component adaptor cable
(supplied) (1-pin: light green/3-pins: green, blue and
red)�
The audio terminals are shared with the
o
(3)�
•
o
(3) connection: Use for the A/V adaptor cable
(supplied) (1-pin: yellow/3-pins: yellow, white and red)�
• You can enjoy video games with this TV. However,
shooting games, where the player shoots at a target on
the TV screen with a light gun may not work because of
the properties of the LCD Colour TV�
Selecting Side Shared Audio
You can select the Side Shared Audio external input
terminals located on the left side of TV
o
(2) and
o
(3)�
1
From
AV Connection
in the
Preferences
menu,
press
s
or
r
select
Side Shared Audio
�
2
Press
v
or
w
to select
EXT 2
or
EXT 3
�

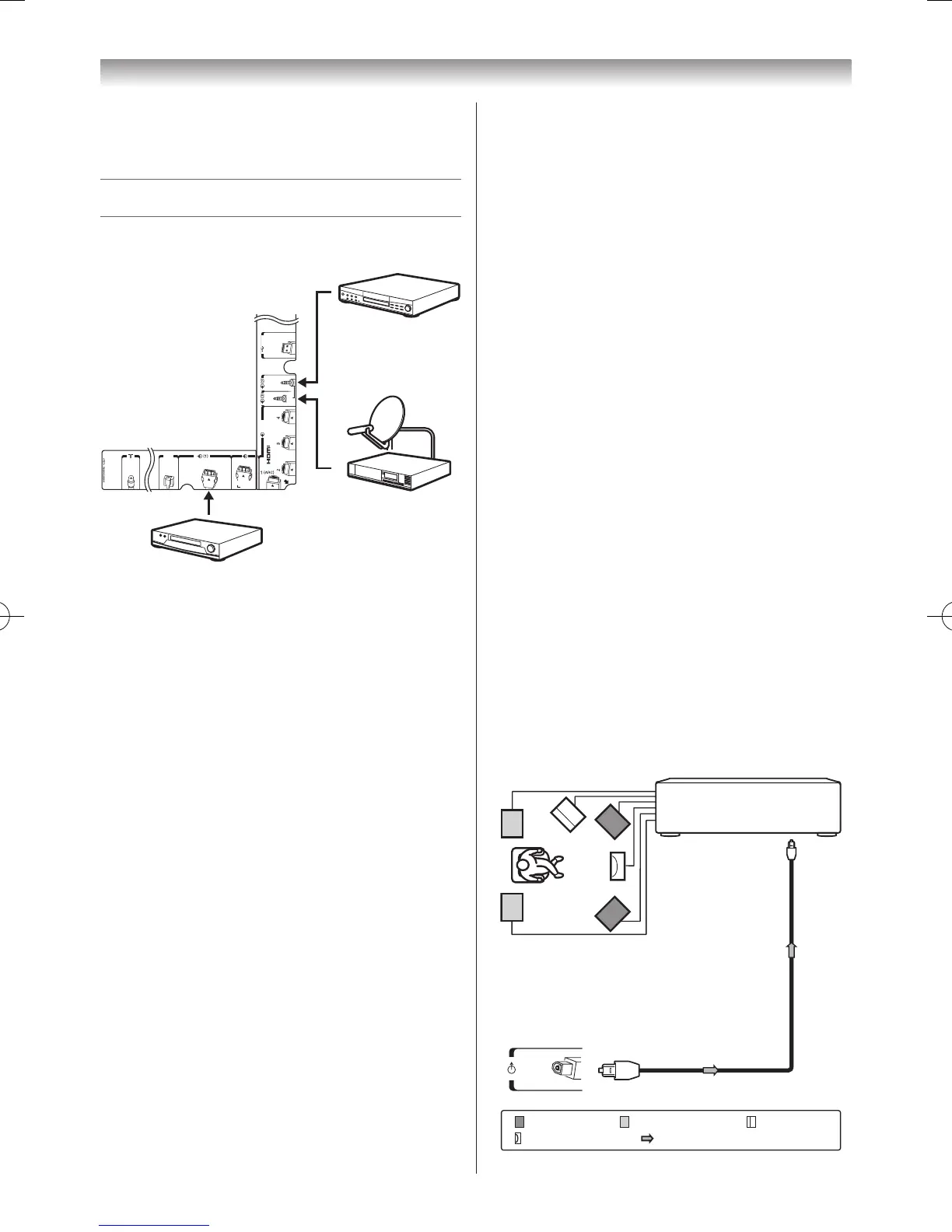

Connecting an audio system
- digital -
You can enjoy high quality dynamic sound by connecting
the TV to an audio system�
Notes:
• DO NOT connect the
DIGITAL AUDIO
output
terminal to the AC-3 RF input of a Dolby Digital
Receiver with a built-in Dolby Digital decoder.
• Connect the
DIGITAL AUDIO
output terminal to the
OPTICAL
input of a receiver or processor.
• Refer to the owner’s manual of the connected
equipment as well.
• When you connect the TV to other equipment, be
sure to turn off the power and unplug all of the
equipment from the wall outlet before making any
connections.
• The output sound of the TV has a wide dynamic
range. Be sure to adjust the audio amplifier’s
volume to a moderate listening level before turning
on the power. Otherwise, the speakers and your
hearing may be damaged by sudden high volume
audio.
• Turn off the amplifier before you connect or
disconnect the TV’s power cord. If you leave the
amplifier power on, the speakers may be damaged.
Warning:
When you are connecting (via the
DIGITAL AUDIO
output terminal) an AV decoder that does not have
Dolby Digital decoding function, be sure to set
PCM
for Digital Output menu (
-
page 47). Otherwise,
the speakers and your hearing may be damaged by
sudden high volume audio.
Connecting an amplifier equipped with a
Dolby Digital decoder
