Connecting your TV
HDMI’s ARC (Audio Return Channel) feature
This feature enables the audio signal of the TV to be sent
to the AV amplier via the HDMI cable. It will not be
necessary to connect a cable from the audio output of the
TV to the audio input of the AV amplier to reproduce the
audio received from the tuner of the TV through the AV
amplier.

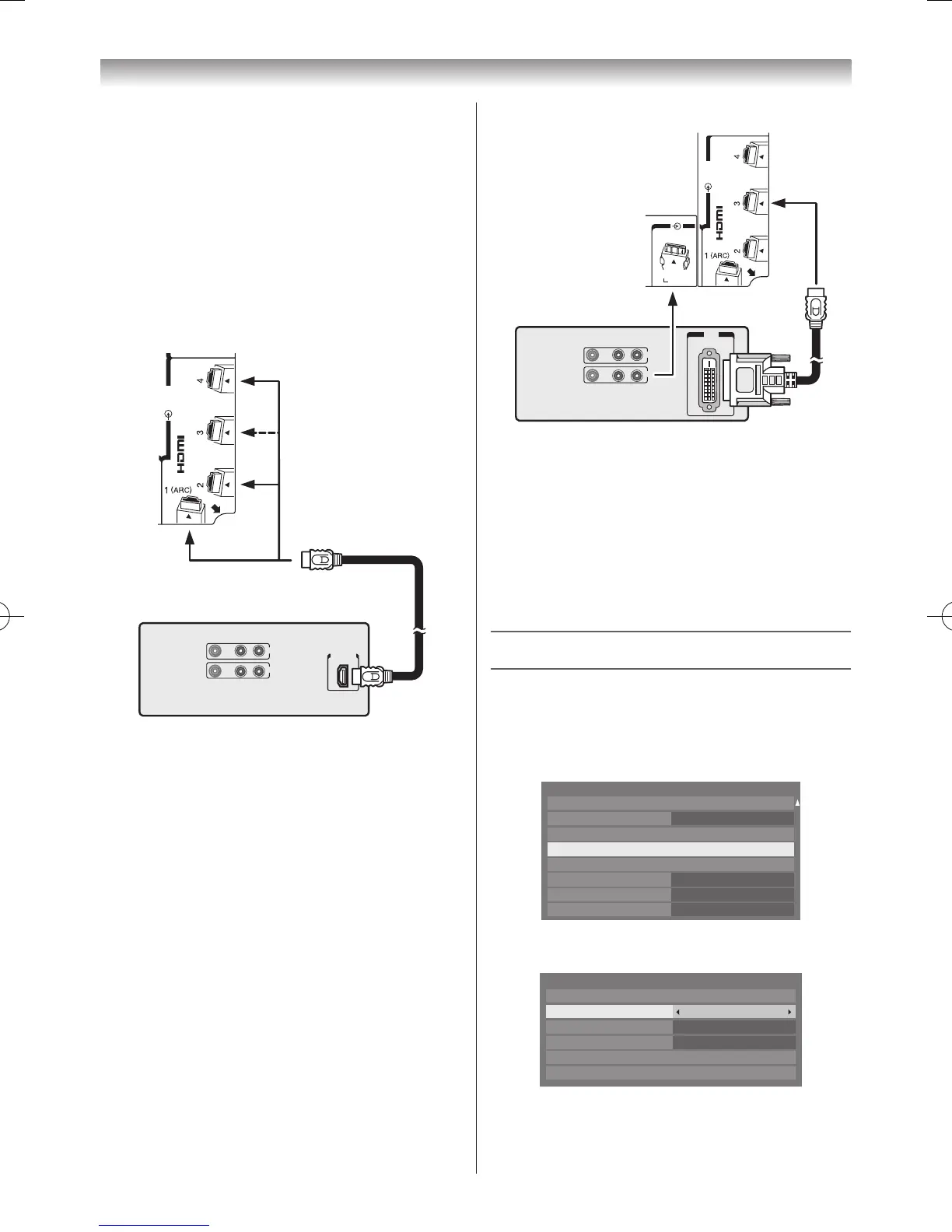

Connecting an HDMI device
One HDMI cable (type A connector) is needed�
VIDEO AUDIO
L R
IN
OUT
HDMI OUT
HDMI
Back and left side of TV
HDMI device
For proper operation, it is recommended that you use a
short HDMI cable�
HDMI cable transfers both video and audio�
Note:
It is possible that some HDMI devices may not
operate properly with this TV.
Connecting a DVI device
One HDMI (type A connector) -to-DVI adapter cable and
analogue audio cables are needed� The audio terminals are
shared with
o
RGB/PC�
VIDEO AUDIO
L R
IN
OUT
DVI
OUT
DVI device
Back and left side of TV
RGB/PC
HDMI
HDMI 3
(AUDIO)
HDMI (type A connector)-to-DVI adapter cable
For proper operation, the length of an HDMI-to-DVI
adapter cable should not exceed 3m� The recommended
length is 2m�
Standard analogue audio cables
An HDMI-to-DVI adapter cable transfers only video�
Separate analogue audio cables are required�
Selecting the PC/HDMI 3 audio mode
You can select PC audio or HDMI 3 audio when using this
function�
1
From the
Preferences
menu, press
s
or
r
until
AV Connection
is selected�
Off
Preferences
Network Lock
Panel Lock
Display Settings
AV Connection
Energy Saving Settings
Clock Display
Blue Screen
Off
On
Off
HDMI Information Display
2
Press
OK
to display the
AV Connection
menu�
AV Connection
PC/HDMI 3 Audio
HDMI Settings
HDMI 3 Audio
Digital
Side Shared Audio
EXT 2
Digital Audio Output
PC
Input Labeling
3
Press
s
or
r
to select
PC/HDMI 3 Audio
and press
v
or
w
to select
PC
or
HDMI 3
�
110920c1_55WL800AZ_En.indb 51 11.9.21 11:37:32
