Toshiba 55WL800AZ User Manual

52
Connecting your TV
Setting the HDMI 3 audio mode
You can select from three sound modes for an HDMI or
DVI device connected to the HDMI 3 input terminal:
Auto
,
Digital
or
Analogue
�
Note:
This function is available only when the PC/HDMI 3
Audio mode is set to
HDMI 3
.
1
From the
AV Connection
menu, press
s
or
r
to
select
HDMI 3 Audio
�
2
Press
v
or
w
to select
Auto
,
Digital
or
Analogue
�
Selecting the HDMI settings
The HDMI Settings menu consists of the following 3
items:
Enable Content Type
,
INSTAPORT™
and
RGB Range
� Some early HDMI equipment may not
work properly with your HDMI TV� If you experience
trouble, unplug your HDMI cable rst and try setting
the rst two options to
Off
� This should allow your early
HDMI source to operate properly with your TV�
1
From the
AV Connection
menu, press
s
or
r
to
select
HDMI Settings
and press
OK
�
HDMI Settings
INSTAPORT
TM
Enable Content Type
RGB Range
On
On
Auto
2
Press
s
or
r
to select each item and press
v
or
w
to
select the desired setting�
Enable Content Type mode
This feature accepts the content type data from the
connected HDMI device�
INSTAPORT™ mode
This feature reduces the lag time when switching HDMI
sources�
RGB Range mode
This feature adjusts RGB full range signal automatically (if
Auto is selected)� When
Limited
is selected, RGB output
signal is output in the range from 16 to 235� When
Full
is
selected, RGB output signal is output in the range from 0
to 255�
Notes:
• If your HDMI connection is capable of 1080p and/
or your TV is capable of refresh greater than 50 Hz
or supports Deep Colour, you will need a Category
2 cable.
• All of the above HDMI settings need proper HDMI
source devices. If the HDMI source products do
not support these features, the TV may not work
properly by activating these features.

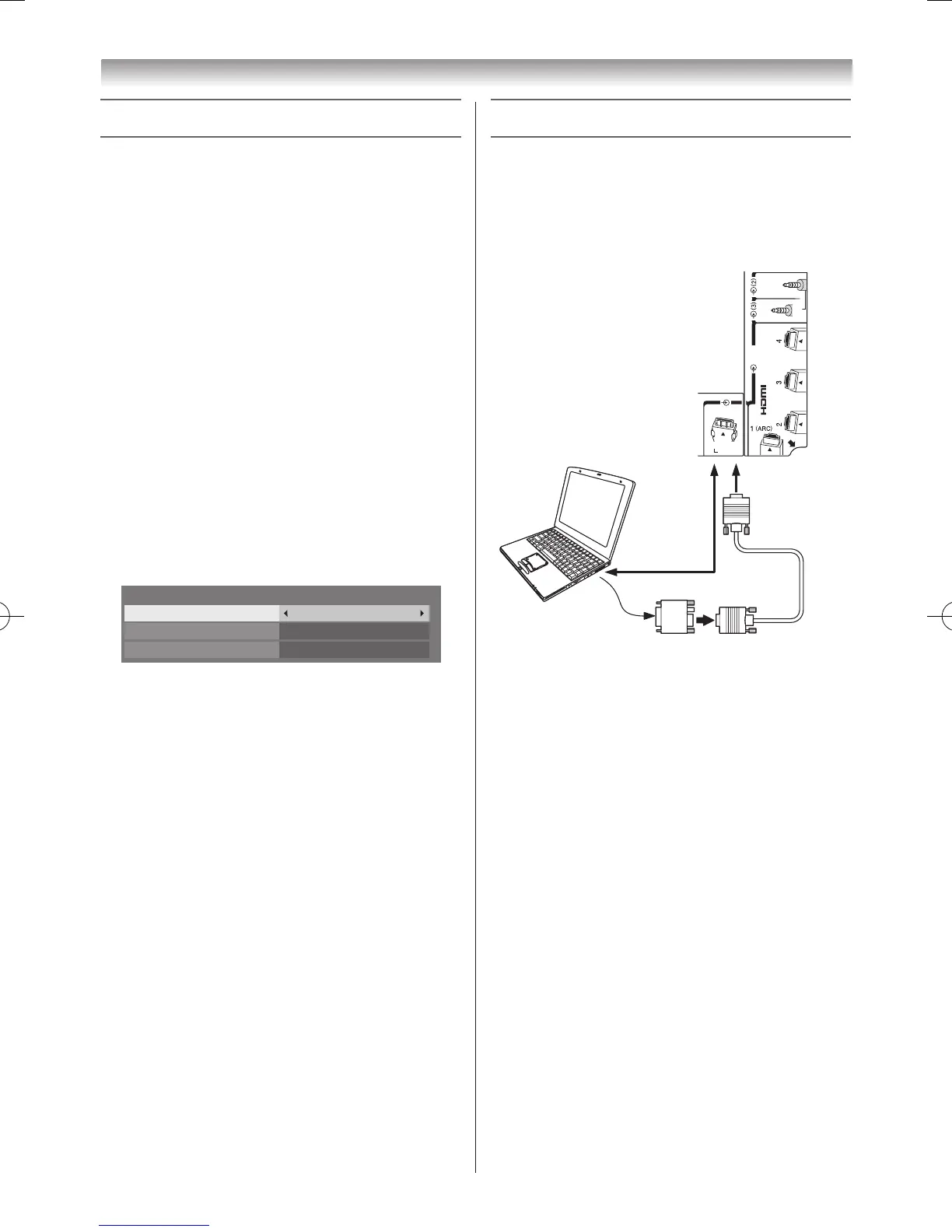

Connecting a computer (PC)
Connecting a PC to the RGB/PC terminal on the TV:
An analogue RGB (15 pin) computer cable can be
connected� Use for the RGB/PC and audio adapter cable
(supplied) (21pins: black/15 pins: black and 1pin: black)�
RGB/PC
HDMI
VIDEO
(AUDIO)
COMPONENT
VIDEO INPUT
HDMI 3
(AUDIO)
Computer
Audio cable
for PC-to-TV
connection
Conversion
adapter
(if necessary)
RGB PC cable
Mini D-sub
15 pin
Back and left side of TV
Connect a PC cable from the computer to the
o
RGB/
PC
terminal on the back of the TV�
The following signals can be displayed:
VGA: VESA 640
5
480 @ 60/72/75 Hz
S-VGA: VESA 800
5
600 @ 56/60/72/75 Hz
XGA: VESA 1024
5
768 @ 60/70/75 Hz
W-XGA: VESA 1280
5
768 @ 60/75 Hz
W-XGA: VESA 1360
5
768 @ 60 Hz
S-XGA: VESA 1280
5
1024 @ 60/75 Hz
1920x1080p @60Hz ( Horizontal Frequency:67�5kHz(H),
Pixel Clock Frequency:148�5MHz)
Notes:
• Some PC models cannot be connected to this TV.
• There is no need to use an adapter for a computer
with a DOS/V compatible mini D-sub 15 pin
terminal.
• A bar may appear in the upper, lower, right or left
side of the screen, or parts of the picture may be
obscured depending on some signals. This is not a
malfunction.
110920c1_55WL800AZ_En.indb 52 11.9.21 11:37:32
