Description of Each Component 29
7. Paper feed cover (Upper: Paper Feed Unit / Lower: Paper Feed Pedestal)
8. Paper size indicator
9. Drawer Module (optional, MY-1028)
Use this to add one more drawer to the Paper Feed Pedestal (optional, KD-1022). The max-
imum 550 sheets of plain paper (20 lb. bond) can be placed at once.
10. Paper Feed Pedestal (optional, KD-1022)
Use this to add one more drawer to the equipment. Moreover, the Drawer Module (MY-1028)
(9) can add another drawer to it. In one drawer, the maximum 550 sheets of plain paper (20
lb. bond) can be placed at once.
11. Paper Feed Unit (optional, MY-1027)
Use this to add one more drawer to the equipment. A maximum of 250 sheets of plain paper
can be placed in one go.
12. Drawer
Maximum 250 sheets of plain paper can be placed in one go.
13. Front cover
Open this cover when you replace the toner cartridge.
P.189 “Replacing Toner Cartridge”

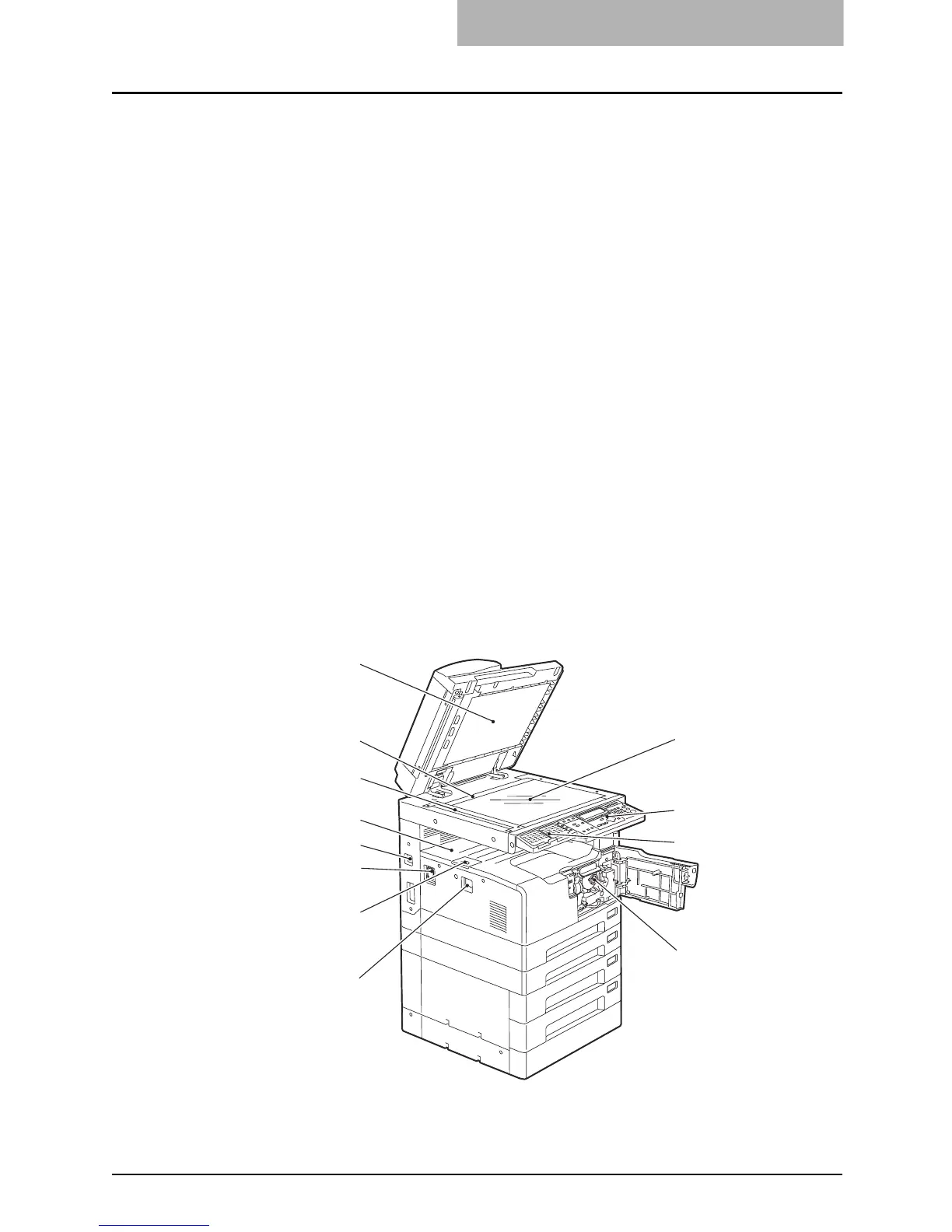

Left side / Inner side
12
11
10
9
8
7
6
5
1
2
3
4
