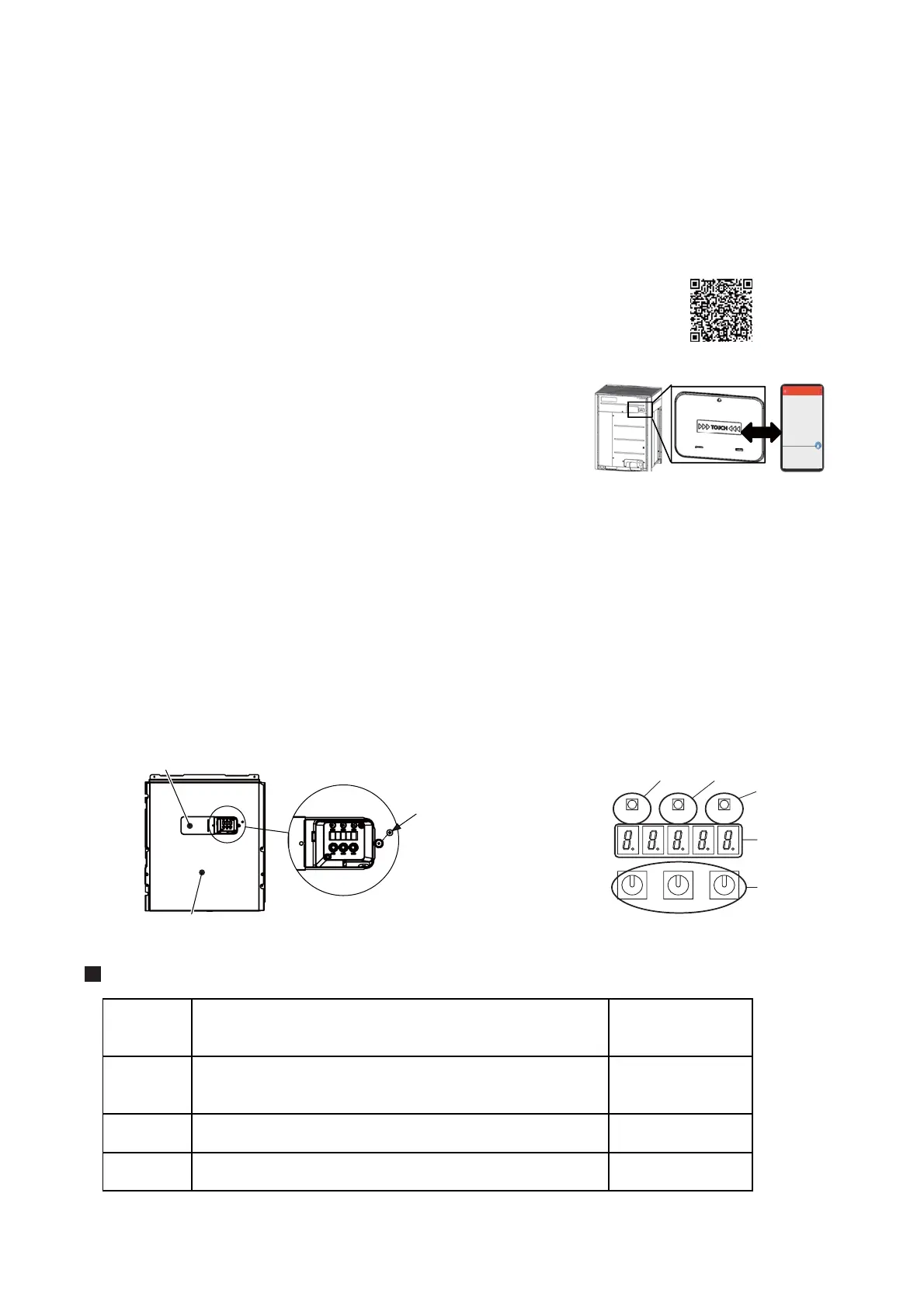

7-8. Wave Tool Advance for SMMS-u Series
7-8-1. Before the Use of Wave Tool Advance
Wave Tool Advance (WTA) uses an application software for the Android OS smartphone.
If you install Wave Tool Advance application (WTA App.), you can use system capacity, test operation, test
operation result and simple report.
Please check the information about compatible air conditioning equipment and smartphone from the following
URL titled in blue as “Objective product list” and “Smartphone model & OS Version”.
If you use Wave Tool Advance Application (WTA App.), please move to following URL.
Please read and understand license agreement, if you agree to license agreement, please click “Agree” .
And download the smartphone application software and USER GUIDE.
Be sure to read the USER GUIDE before the use of this application.
https://www.toshiba-carrier.co.jp/global/appli/smms_wave_tool_advance/index.htm
Fixing screw
Control box cover
A
ccess cover
SW04
SW01
Push switch
2,4,6 3,5
3,5
1-7
1,7
7-segment
display
Rotary switch
SW02 SW03
SW05 SW06
Wave Tool Advance
Smartphone
with WTA App.
SMMS-u Series
NFC tag
Wave Tool
Adva nce
Site Name
Model Name
Serial No.
Unit No/HP(Ton)
Star. Prio.
Defrost Gr.
Line Address
Mode
Check Code
Notice Code
Unit
-
-
-
-
-
-
-
-
-
-
-
System Info.
7-8-2. About Wave Tool Advance
• This application uses the NFC(Near Field Communication) function
of smartphone.
• If it is used, make sure that the NFC antenna on the smartphone is
aligned with the “TOUCH “mark on the NFC tag.
• Refer to the USER GUIDE of the Wave Tool Advance for the details.
7-8-3. Valid/Prohibition/Permission setting for Test operation from WTA App.
• WTA App Test operation function enables setting within 48 hours elapsed from outdoor unit power ON. If
Power ON time is over 48 hours, we cannot use WTA App test operation. (Other WTA App function can
be used.)
• You should decide whether to make use of this test operation function at its own responsibility and also be
sure to confirm notices in the Operating Manual before performing the test operation.
• If you want to prohibit the test operation from WTA App, perform the following steps.
* High voltage parts exist in the electrical control box. If you set switch setting, set it from the access door
cover of the electrical control box cover to avoid electric shock.
After finishing steps, slide the access cover to the position before and fix it with the screw.
• Refer to following table for setting change of the test operation function to be effective after 48hours.
Relationship with Power ON time and Test operation function.
Status
7-segment display
at O.DN Code
No.05
Validness
Until 48 hours elapsed from the outdoor unit power ON,
WTA App can start a test operation. After 48 hours, it
cannot.
d.⌴⌴⌴0
Prohibition
Regardless of the elapsed time, WTA App cannot start a
test operation.
d.⌴⌴⌴1
Permission
Regardless of the elapsed time, WTA App can start a test
operation.
d.⌴⌴⌴2
- 167 -
