9-3-2. Header outdoor unit backup operation setting (failure of header outdoor unit)
<Work procedure>
(1) Turn off the power supply to all the units connected to the system at the source.
[Setup of failed header outdoor unit]
(2) Fully close the gas pipe service valve of the failed outdoor unit.
(3) Leave the service valves of the liquid pipes fully open (to prevent refrigerant stagnation in the failed).
(4) <In case of failure in compressor, electrical part, P.C. board>
From this point on, keep the power supply to the failed unit off.
<In case of failure in refrigerating circuit or related part (pressure sensor, temperature sensor, refrigerating
cycle part, or fan system part)>
Disconnect the line for outdoor-outdoor communication [Uc (U5/U6)] and cover the U5 and U6 line with
insulating tape separately. (Do not cover the line by mixing the U5 and U6 line altogether).
[Selection of new header unit]
(5) Select a new header unit from the follower units on the basis of the following criteria:
• If only one follower unit is connected, select it as the header unit.
• If two follower units are connected, select the follower unit that is nearest to the failed header unit.
[Setup of new header unit]
(6) Set SW101 and SW102 on the interface P.C. board same as the setting of failed header unit (refrigerant line
address setting).
(7) Turn on Bit3 of SW103 on the interface P.C. board. (Setting to prevent connected indoor unit capacity over
failure. (E16))

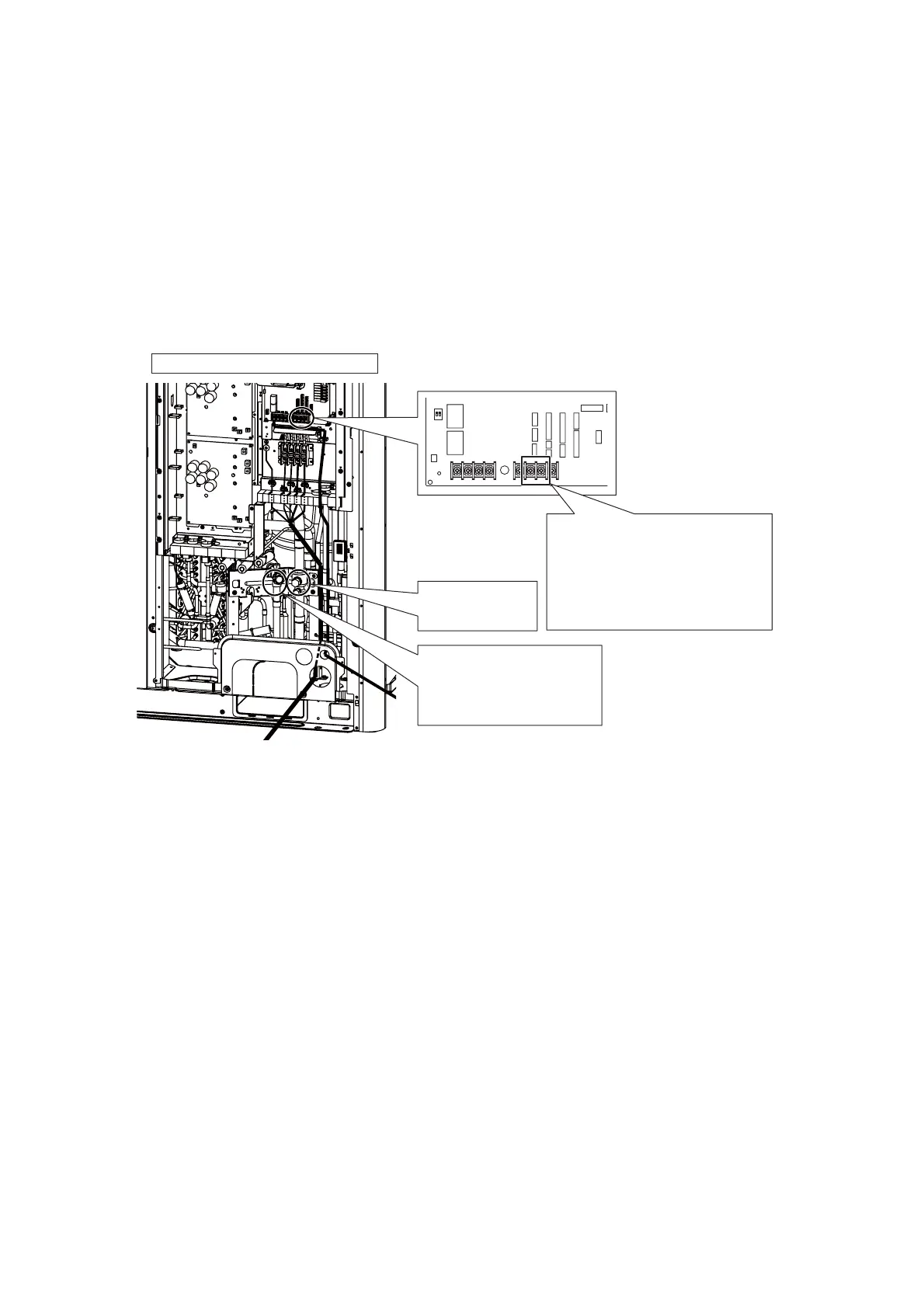

Setup of failed header outdoor unit
2
10
59
..
%0
%0
%0
%0
7 7 7 7
7X 7J7X 7J 7E 7E
5*+'.&5*+'.&
5*+'.&
7 7
5*+'.&
(4)
In case of failure in refrigerating circuit
or related part, disconnect the line for
outdoor-outdoor communication [Uc
(U5/U6)] and cover the U5 and U6 line
with insulating tape separately.
(Do not cover the line by mixing the
U5 and U6 line altogether).
(2)
Fully close gas pipe
service valve.
(3)
Leave service valves of liquid
fully open.
(if there is leakage from outdoor
PMV, fully close liquid pipe.)
To Next Page
