Toshiba Satellite L640 User Manual

Chapter 4 Replacement Procedures
4.9 Top Cover Assembly
Removing the Top cover assembly
The following describes the procedure for removing the Top cover assembly (See Figure 4-9-
1 to 4-9-5).
1. Turn over the computer and open the door.
2. Remove memory slot cover. (See Figure 4-4-1).
3. Remove the screws of the ODD and ODD Bezel. (See Figure 4-8-1)
4. Remove the following screws securing the Top cover assembly from the back and
bottom of computer.
 M2-0.42 FLAT BIND screw Back x3
 M2.03 FLAT BIND screw Back x3
 M2.05.0 FLAT BIND screw Back x11

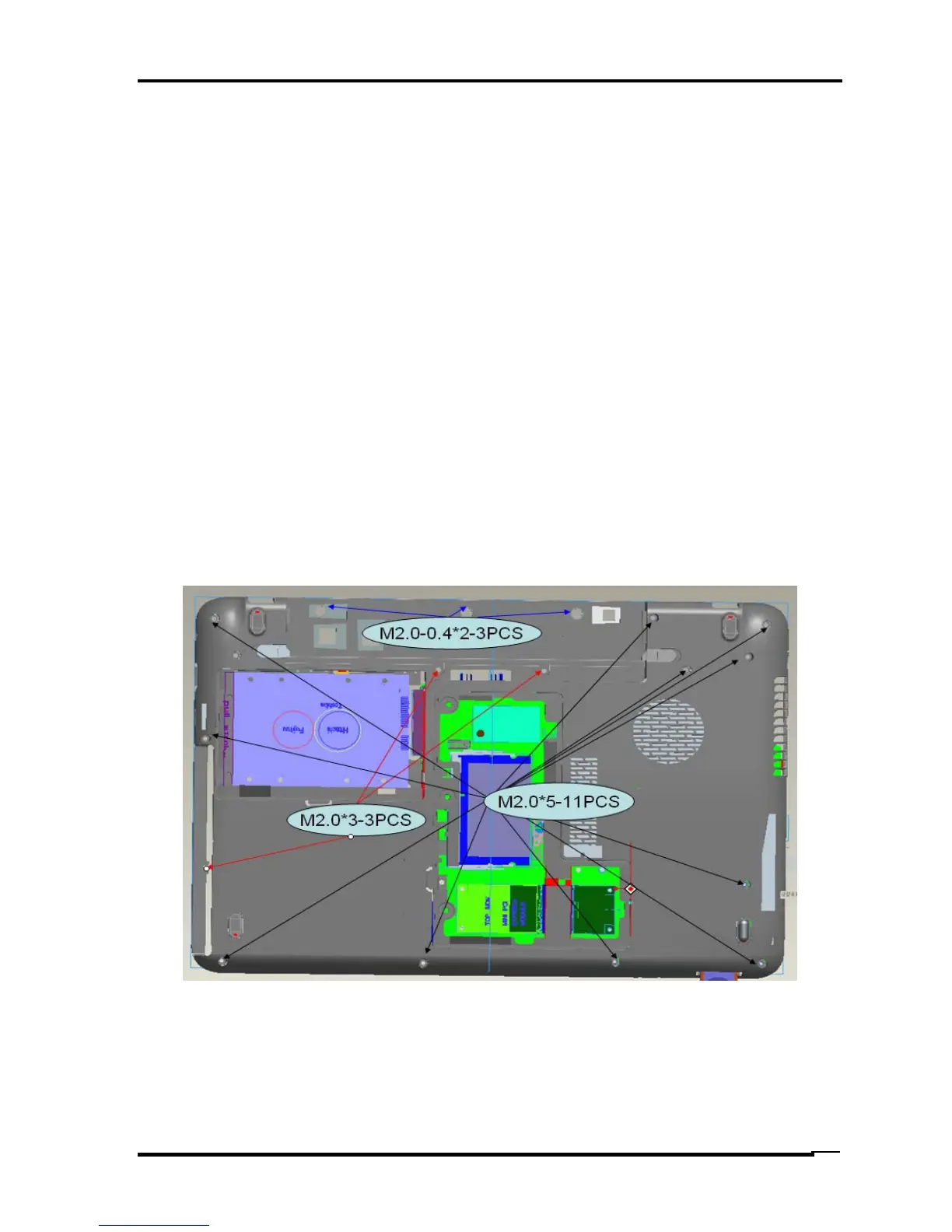

Figure 4-9-1 Remove the screws (back)
Satellite L640/L645, Satellite Pro L640/Pro L645 Maintenance Manual (960-Q08)
4-33

Toshiba Satellite L640 Specifications

General

Optical Drive	DVD SuperMulti Drive
Wireless	802.11b/g/n
Webcam	Integrated Webcam
Processor	Intel Core i3/i5
RAM	Up to 8GB DDR3
Storage	320GB HDD
Display	14-inch HD
Graphics	Intel HD Graphics
Operating System	Windows 7 Home Premium
LAN	10/100 Ethernet
Battery	6-cell Lithium Ion
Ports	HDMI, VGA, RJ-45, Microphone input, Headphone output
