Toshiba Satellite L640 User Manual

Chapter 4 Replacement Procedures
4.14 LCD unit
Removing the LCD unit
The following describes the procedure for removing the LCD unit (See Figure 4-14-1 to 4-
14-3).
1. Remove Screw Mylar cover
2. Remove the following screws securing the display mask
M 2.55.0 screw x4
3. Insert your finger between the edge of the display mask and the LCD, and remove the
display mask while releasing the latches of display mask. (Note: when removing the
display mask, please first remove from top side to the bottom in order to lessen the
degree of breaking.
M2.5

5.0 4pcs

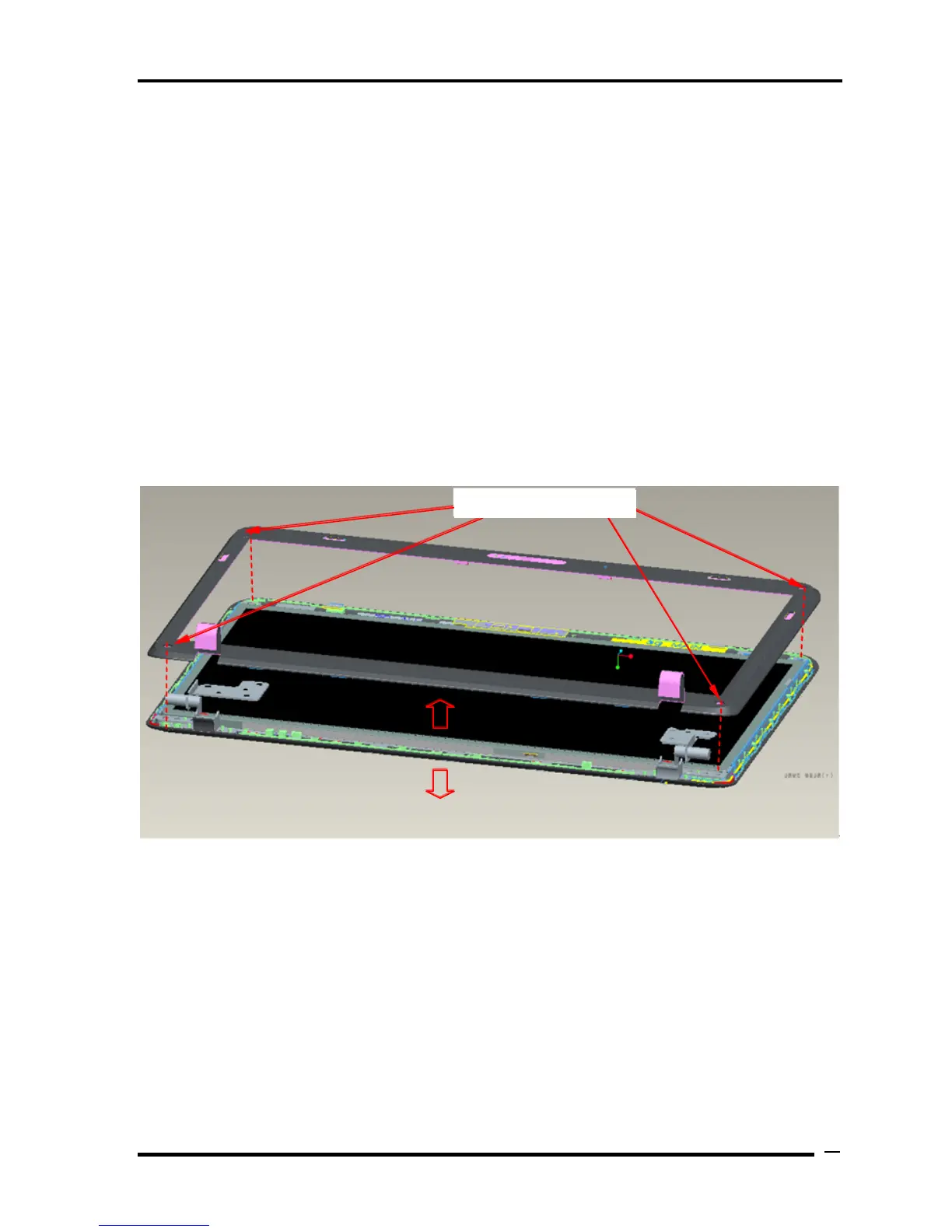

Figure 4-14-1 Remove the display mask
4. Remove the following screws securing the LCD unit.
 M2.5x5.0 screw x4
5. With the bottom edge of the LCD unit on the display cover, lift only the top edge of
the LCD unit. After peeling off the kapton tape, disconnect the LCD harness from the
connector on the back of the LCD.
6. Remove the LCD unit.
Satellite L640/L645, Satellite Pro L640/Pro L645 Maintenance Manual (960-Q08)
48
