Toshiba Satellite L640 User Manual

Chapter 4 Replacement Procedures
4.19 BT Module
Removing Bluetooth module
The following describes the procedure for removing a BT module (See Figure 4-19-1 to 4-
19-2).
1．Disconnect the BT cable from the connectors on mother board.
2．.Remove Bluetooth module from the TOP cover assembly.

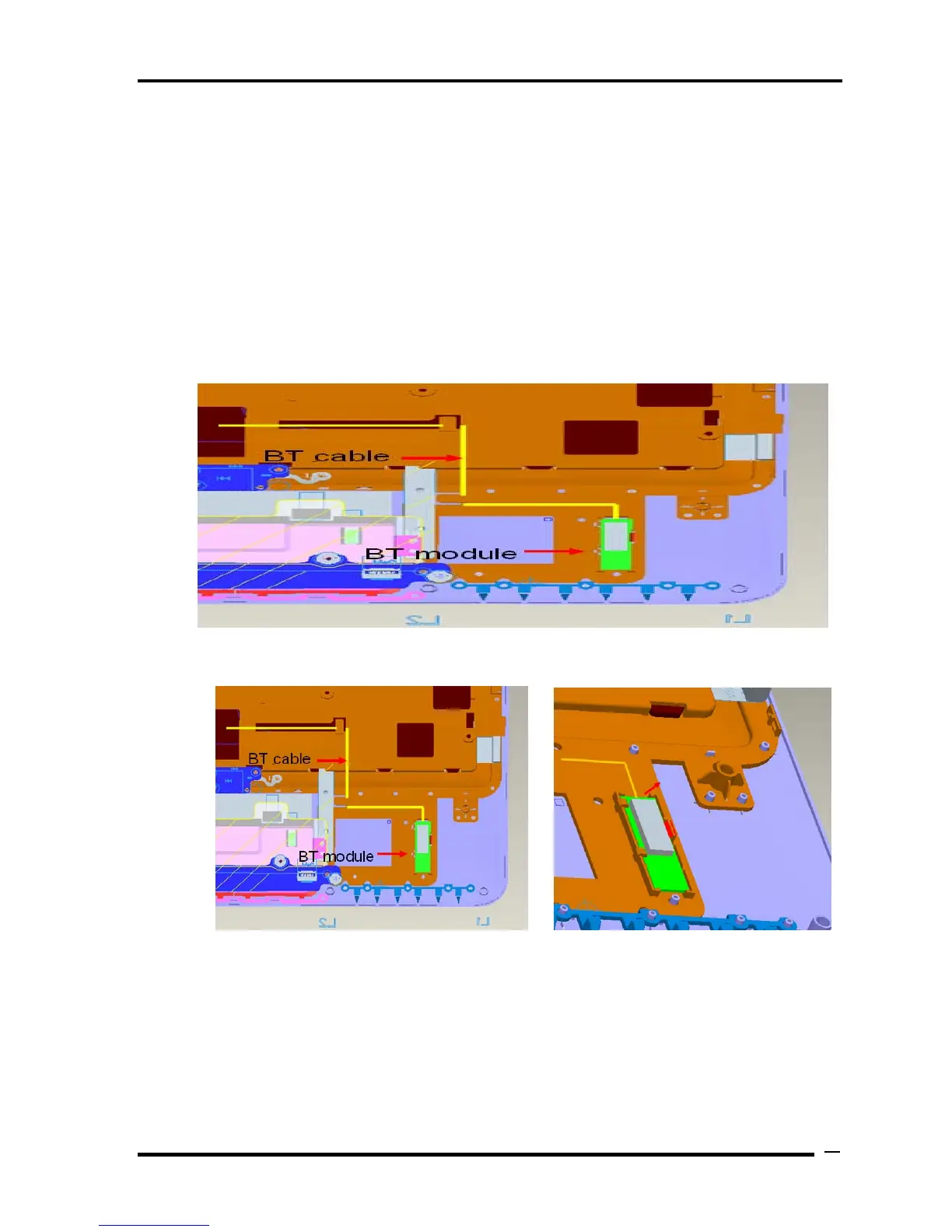

Figure 4-19-1 Remove the Bluetooth cable
Figure 4-19-2 Remove the Bluetooth module
Satellite L640/L645, Satellite Pro L640/Pro L645 Maintenance Manual (960-Q08)
64

Toshiba Satellite L640 Specifications

General

Optical Drive	DVD SuperMulti Drive
Wireless	802.11b/g/n
Webcam	Integrated Webcam
Processor	Intel Core i3/i5
RAM	Up to 8GB DDR3
Storage	320GB HDD
Display	14-inch HD
Graphics	Intel HD Graphics
Operating System	Windows 7 Home Premium
LAN	10/100 Ethernet
Battery	6-cell Lithium Ion
Ports	HDMI, VGA, RJ-45, Microphone input, Headphone output
