Board Layout
B.2 Touch Pad Board

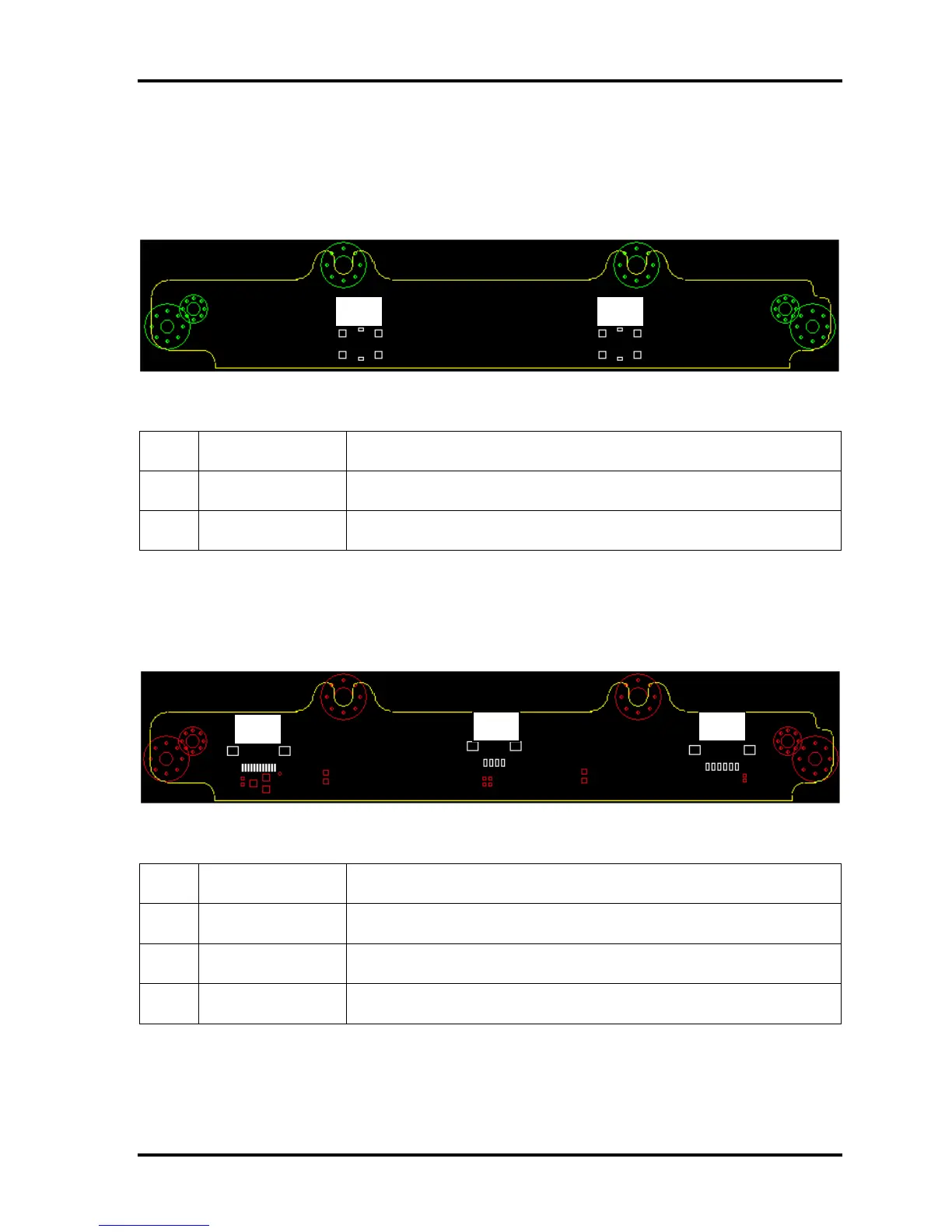

<Front layout>
SW1 SW2
Figure B-2-1 T
ouch Pad board layout (Front)
NUM Location Function
(01) SW1 Mouse Button Left key
(02) SW2 Mouse Button Right key
Table B-2-2 Touch Pad board Switchs
<Back layout>
CN1 CN2
CN3
Figure B-2-3 Touch Pad board layout (Back)
NUM Location Function
(01) CN1 TP Board to TP ON-OFF Board CONN
(02) CN2 TP Board to M/B CONN
(03) CN3 TP Board to Touch Pad module CONN
Table B-2-4 Touch Pad board connectors
Satellite L600/L640/L645, Satellite Pro L600/Pro L640/Pro L645 Maintenance Manual (960-Q08)
