Toshiba TOSVERT VF-S15 series Manual

E6581911
- 7 -

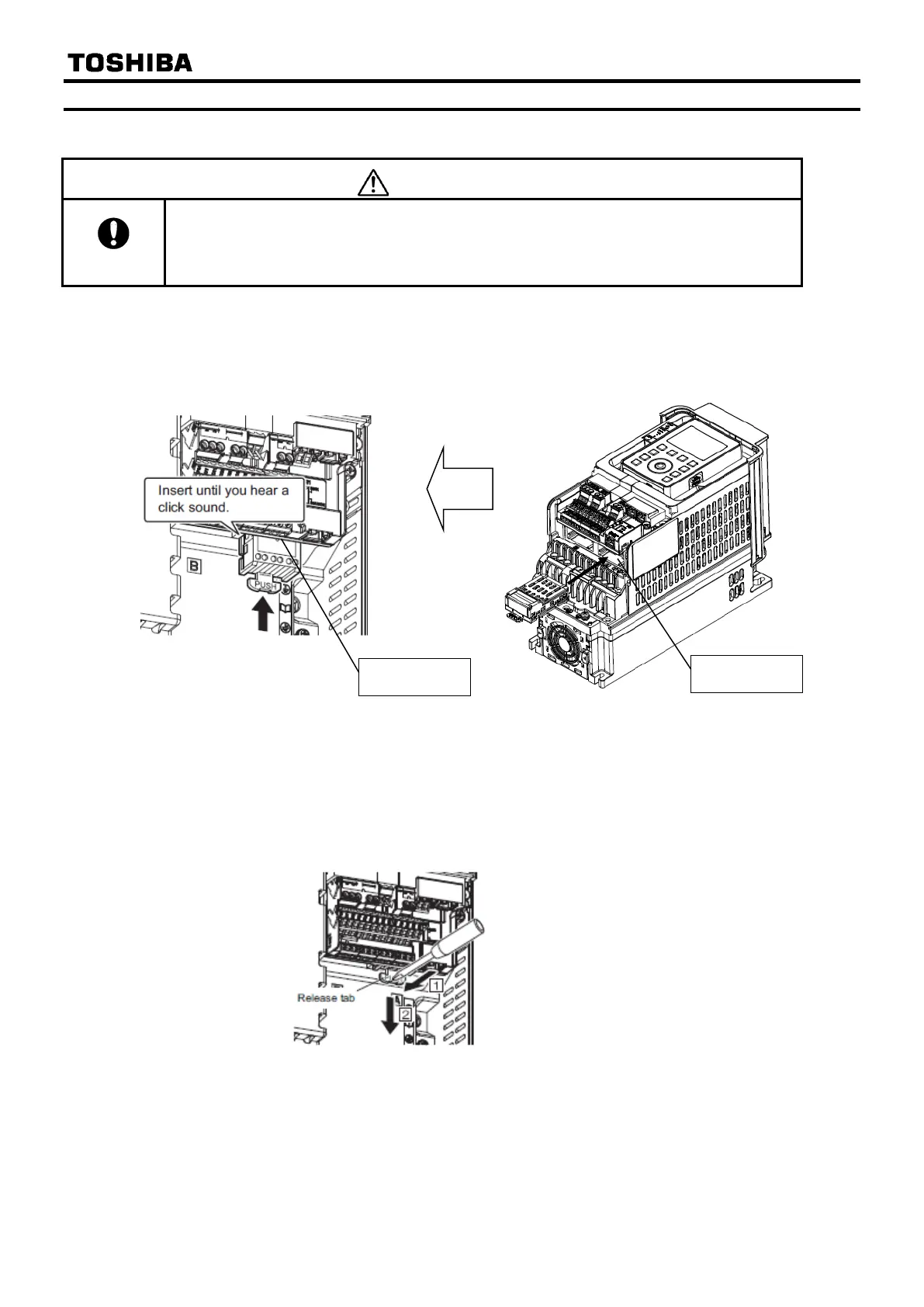

2.1.2. Mounting/removing insert type option of VF-AS3
Refer to [Mounting/removing insert type options] of E6582062.
Warning
Mandatory
action
▼ Mounting/removing option should be performed 15 minutes or more after the power is
shout off, and checking the charge lamp of the drive is OFF. The drive and option may
be damaged.
2.1.2.1. Mounting of option
Insert option to the option slot A until you hear a click sound.
2.1.2.2. Removing of option
While pressing the release tab down, pull the cassette option to remove from the option slot.
Option slot A
Option slot A
