– 9 –
STE 71282
STARTUP MANUAL
1.
Before Power ON
Before turning the power on, confi
rm the following matters, referring to the
Installation & Transport Manual.

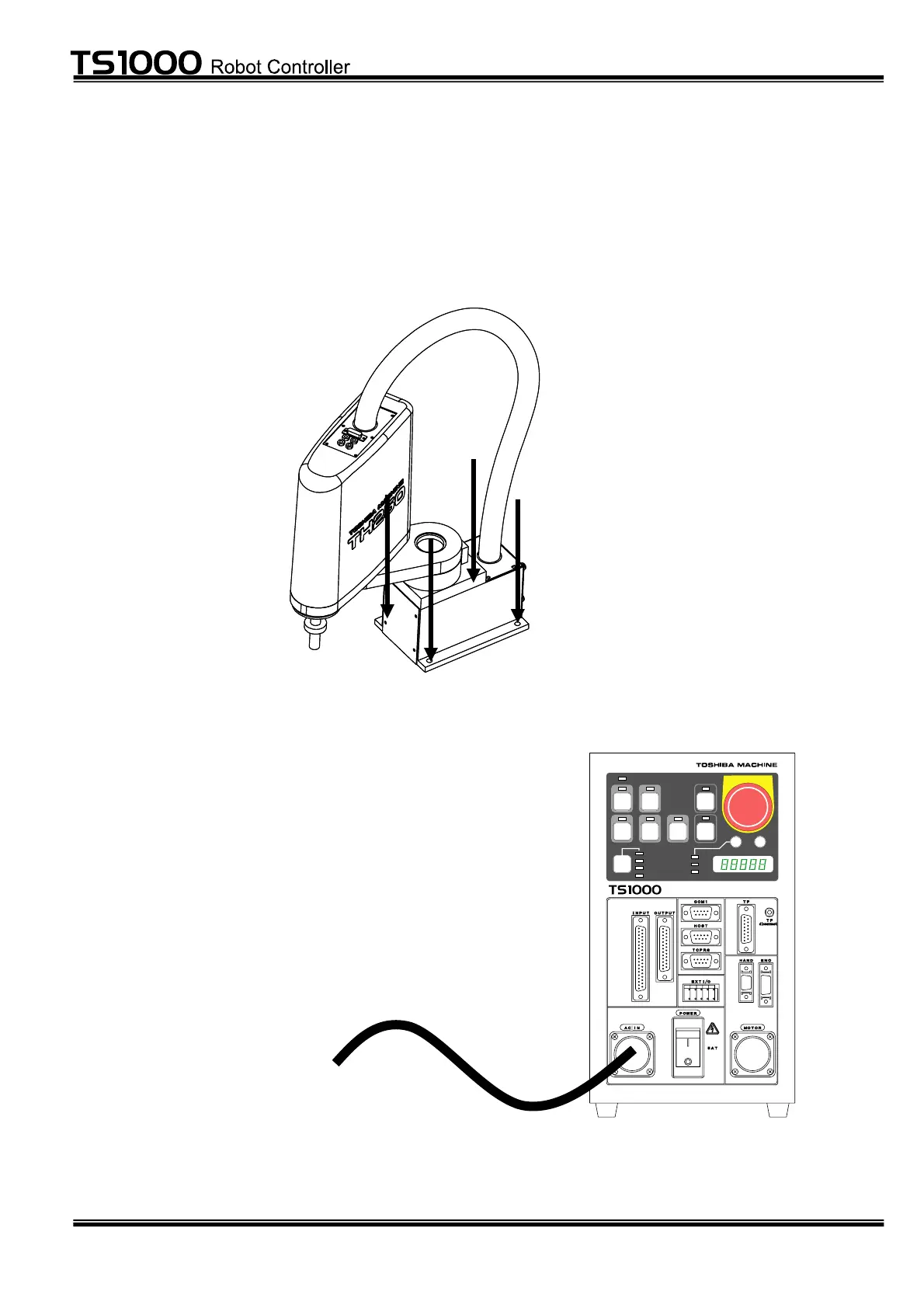

Is the robot secured?
Four (4) M8 hexagon socket head cap screws
Is the power supply connected?
Single phase, 170 ~ 250 V AC power supply
Robot Controller
TEACHING
INTERNAL
EXT. SIGNAL
EXT. HOST
POWER
EMERGENCY
LINE
USER
ALARM
SERVO
ON
SERVO
OFF
RUN
STOP
UF1
UF2
ALARM
RESET
SELECT
MODE
CYCLE
9
11
