– 43 –
STE 71282
STARTUP MANUAL

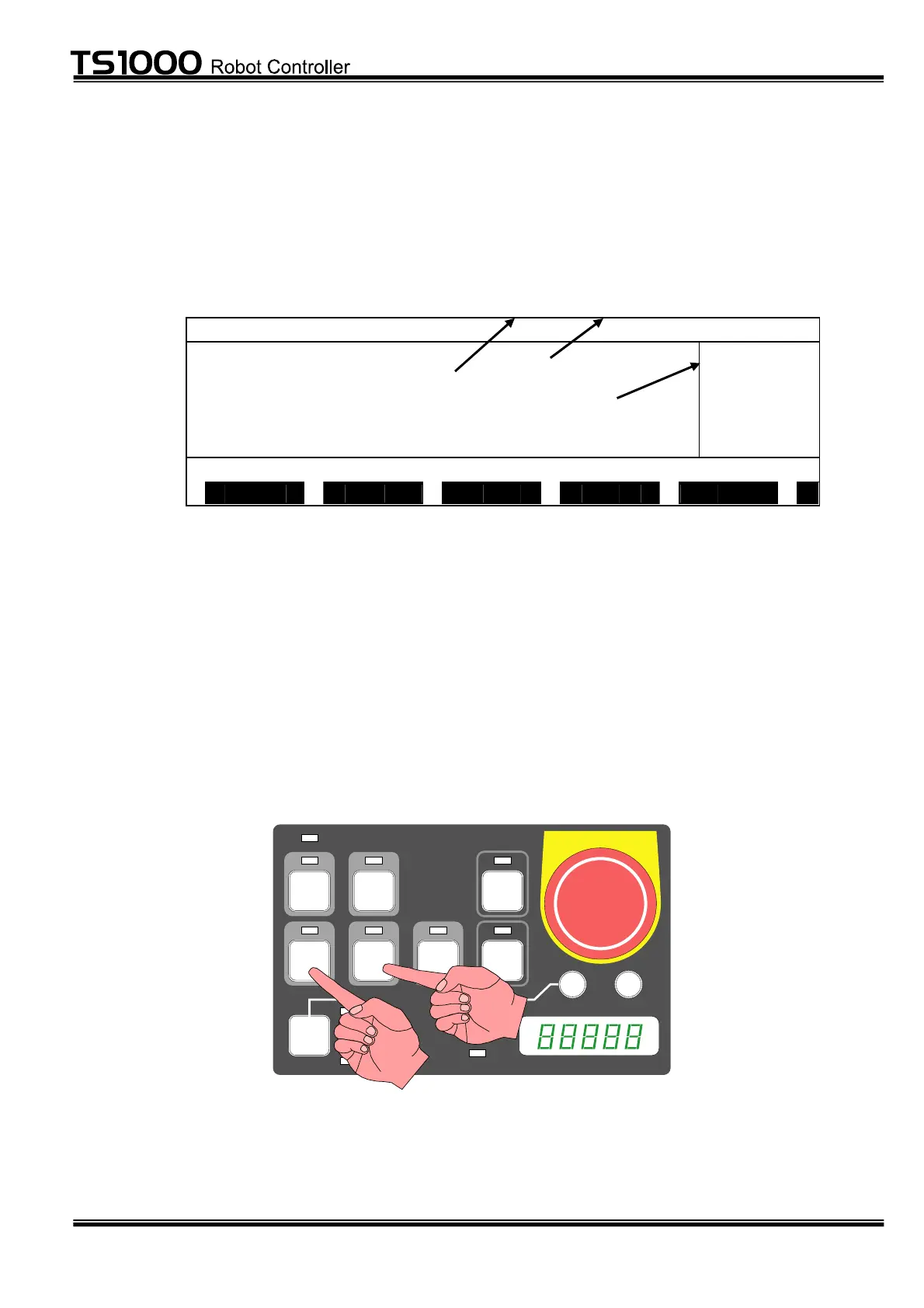

5.3 Internal Automatic Operation
[1] Select "INTERNAL" for the master mode by pressing the MODE switch
provided on the control panel.
Before starting the operation, confirm the selected program name, operation
mode and override set value.
Confirm the selected program. The file selected in the TEACHING mode is
taken over. (Unless selected, select a desired file, using [SEL] of the function
menu.)
Confirm the override value. In the TEACHING mode, the value entered in the
TEACHING mode remains effective. (Unless entered in the TEACHING mode,
the override is 100 %. Set the override, using [OVRD] of the function menu.)
Select the execution mode by means of the [MODE] key of the function menu.
In the internal automatic mode, program start and stop are performed through
the control panel.
Change the override value, using [OVRD] of the function menu.
In the INTERNAL mode, the override of up to 100 % can be entered.
M O D E : I N T E
R
NAL/CONT TEST
L :
O : 10%
M : F REE
S : S TOP
R E SET
S E L M O D E O V R D R E S E T D O >
Operation mode
Override set value
Selected program
TEACHING
INTERNAL
EXT. SIGNAL
EXT. HOST
POWER
EMERGENCY
LINE
USER
ALARM
SERVO
ON
SERVO
OFF
RUN
STOP
UF1
UF2
ALARM
RESET
SELECT
MODE
CYCLE
To Next Page
