101

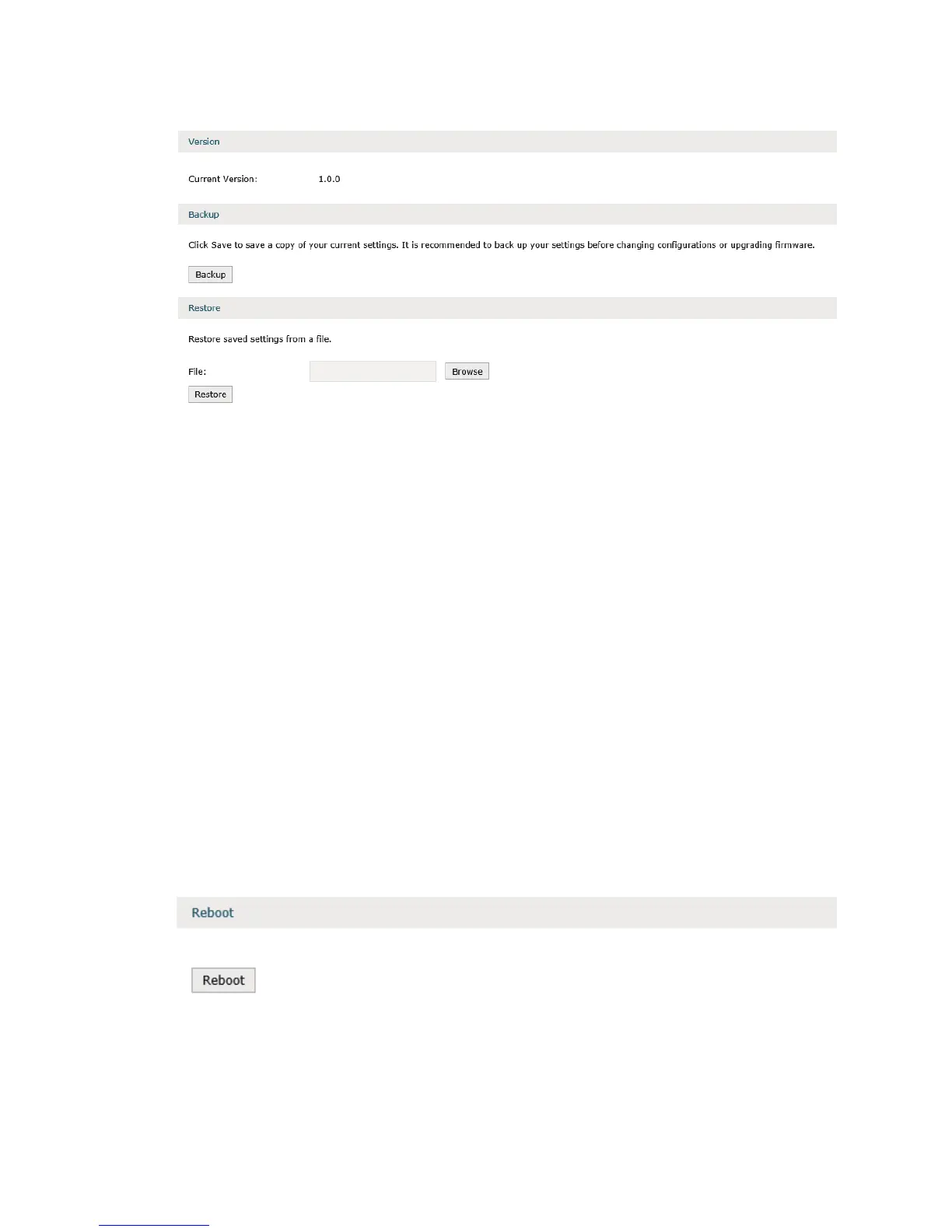

Figure 9-5 Backup & Restore

Version
View the current version.

Backup
Click Backup to save a copy of your current settings. Please save your copy in a secure file
location. It is recommended to back up the settings before you change the configurations
and upgrade the firmware.

Restore
Click Browse to locate and select the backup file, then click Restore to import the file to
recover the configurations.
Note:
• Please keep the power supply stable and avoid power o during the backup and import process.
• If the version of the imported conguration le diers a lot from the current version of the controller, the
conguration information may be lost.
9.2.3 Reboot
Choose the menu System Tools > Administration > Reboot to load the following page.
Figure 9-6 Reboot
Click Reboot to reboot your device. Some settings will be applied only after the device has
rebooted.
Note:
DO NOT power o your device while it is rebooting.

TP-Link AC500 Specifications

General

Flash memory	32 MB
Internal memory	256 MB
Built-in processor	Yes
Processor frequency	1000 MHz
Control display unit	-
Internal memory type	DDR3
Number of processors installed	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Console port	RJ-45
Ethernet LAN (RJ-45) ports	5
Input voltage	100-240 V
Input frequency	50/60 Hz
Certification	CE, FCC, RoHS
Mounting type	Rack mounting
Product color	Black
Rack capacity	1U
LED indicators	Activity, Link, Power, System
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	802.1x RADIUS, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK
Cables included	AC
Package type	Box
Package depth	336 mm
Package width	528 mm
Package height	100 mm
Package weight	3520 g

Weight and Dimensions

Depth	227 mm
Width	440 mm
Height	44 mm
