TP-Link AC500 User Manual

15
3.2.2 DHCP Client List
Choose the menu Network > DHCP Server > DHCP Client List to load the following page.
The list displays the information such as the IP address, MAC address and lease time of the
connected clients.

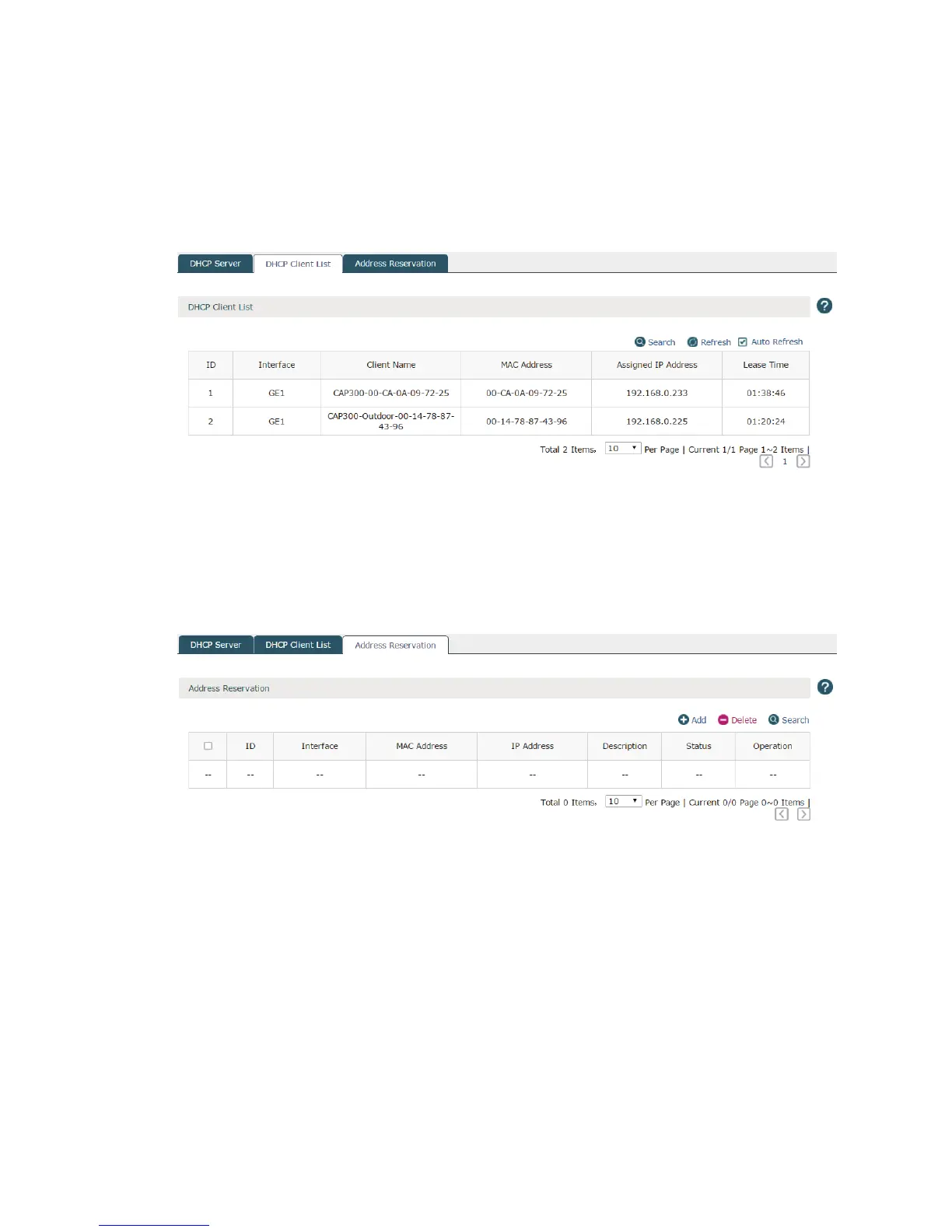

Figure 3-5 DHCP Client List
3.2.3 Address Reservation
Choose the menu Network > DHCP Server > Address Reservation to load the following
page.
Figure 3-6 Address Reservation
If the CAP or client requires a static IP address, you can manually reserve an IP address
for it. Once reserved, the IP address will only be assigned to the same client by the DHCP
server.

TP-Link AC500 Specifications

General

Flash memory	32 MB
Internal memory	256 MB
Built-in processor	Yes
Processor frequency	1000 MHz
Control display unit	-
Internal memory type	DDR3
Number of processors installed	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Console port	RJ-45
Ethernet LAN (RJ-45) ports	5
Input voltage	100-240 V
Input frequency	50/60 Hz
Certification	CE, FCC, RoHS
Mounting type	Rack mounting
Product color	Black
Rack capacity	1U
LED indicators	Activity, Link, Power, System
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	802.1x RADIUS, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK
Cables included	AC
Package type	Box
Package depth	336 mm
Package width	528 mm
Package height	100 mm
Package weight	3520 g

Weight and Dimensions

Depth	227 mm
Width	440 mm
Height	44 mm
