TP-Link AC500 User Manual

22

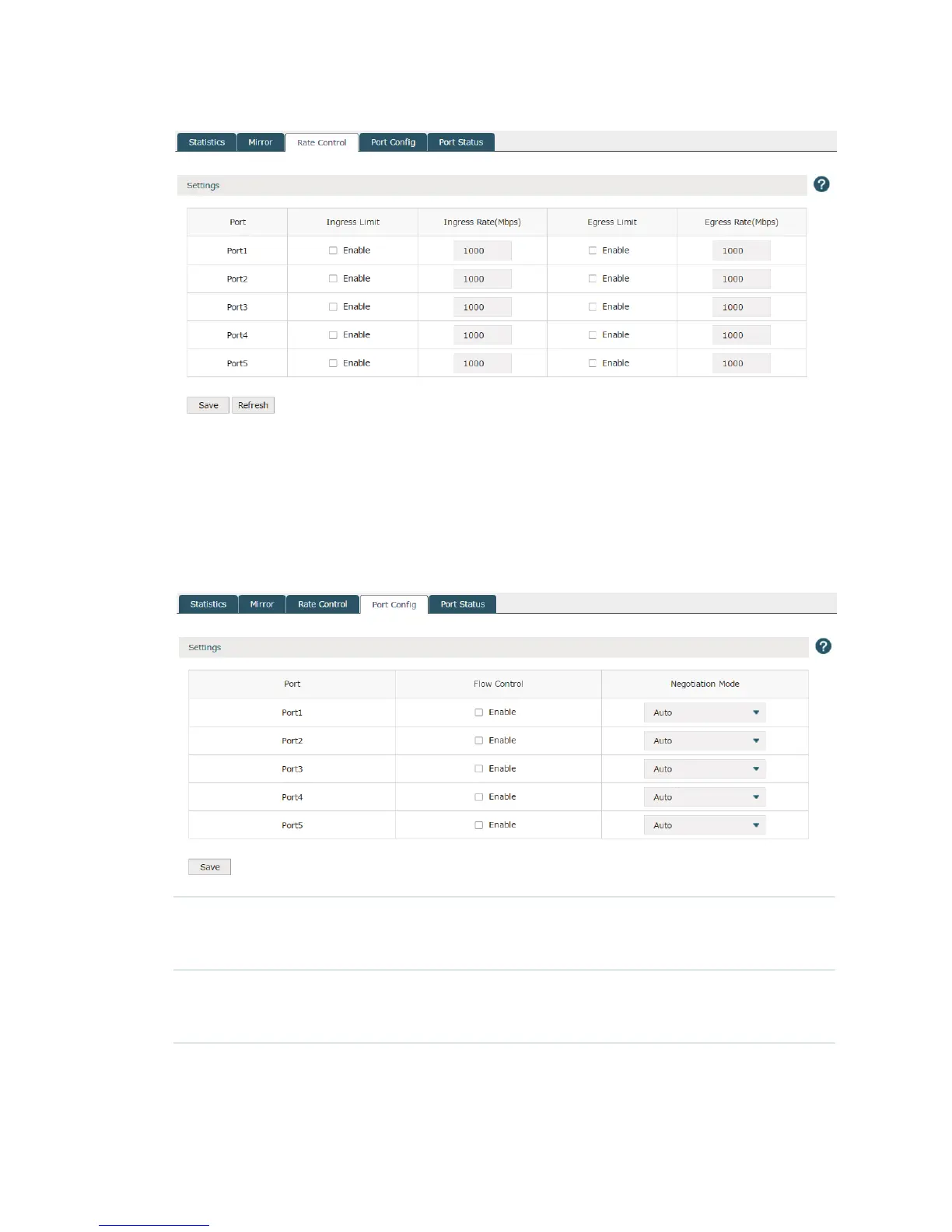

Figure 3-14 Rate Control
Click Save to finish the settings.
3.4.4 Port Config
Choose the menu Network > Switch > Port Config to load the following page.
Figure 3-15 Port Cofig
Flow Control With this option enabled, the device synchronizes the data transmission speed
with the peer device, thus avoiding the packet loss caused by congestion. By
default, it is disabled.
Negotiation Mode Select the Negotiation Mode for the port including auto and duplex mode.
Duplex mode includes 10M Half-duplex, 10M Full-duplex, 100M Half-duplex,
100M Full-duplex and 1000M Full-duplex.
Note:
The AC50 doesn't support 1000M Full-duplex.

TP-Link AC500 Specifications

General

Flash memory	32 MB
Internal memory	256 MB
Built-in processor	Yes
Processor frequency	1000 MHz
Control display unit	-
Internal memory type	DDR3
Number of processors installed	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Console port	RJ-45
Ethernet LAN (RJ-45) ports	5
Input voltage	100-240 V
Input frequency	50/60 Hz
Certification	CE, FCC, RoHS
Mounting type	Rack mounting
Product color	Black
Rack capacity	1U
LED indicators	Activity, Link, Power, System
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	802.1x RADIUS, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK
Cables included	AC
Package type	Box
Package depth	336 mm
Package width	528 mm
Package height	100 mm
Package weight	3520 g

Weight and Dimensions

Depth	227 mm
Width	440 mm
Height	44 mm
