TP-Link AC500 User Manual

88

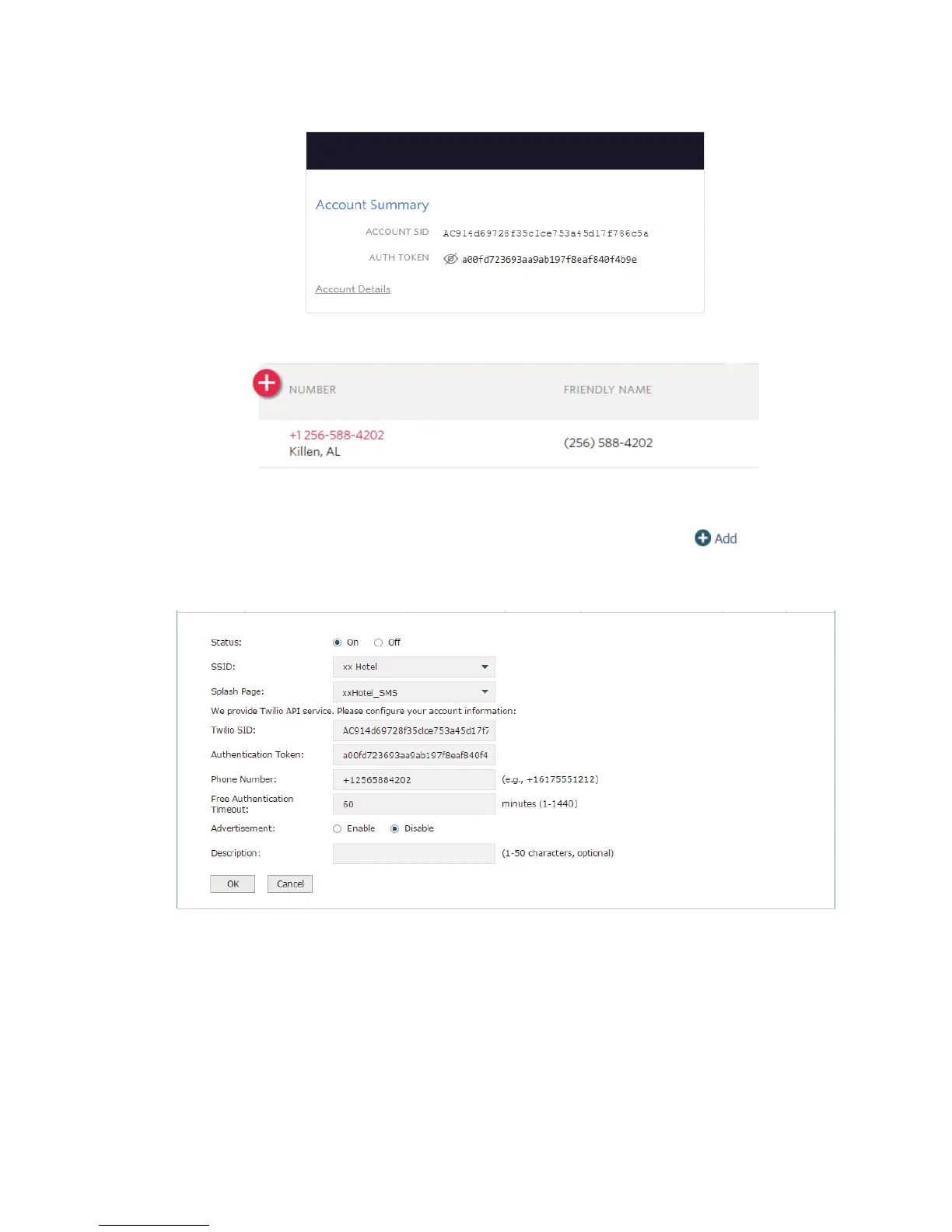

Figure 7-53 Account Infromation_SID and Auth Token
Figure 7-54 Account Infromation_Phone Number
5 Configure the SMS Authentication
Choose the menu Authentication > Portal Authentication > SMS. Click
to add a new
entry.
Figure 7-55 SMS Authentication Page
Enable SMS and configure the related parameters. You can directly paste the Twilio
account information from the website to this page. Click OK.
7.7.5 Application for Facebook

Network Requirements
A hotel wants to offer customers internet access and push hotel advertisement through
the Facebook Page of the hotel. And The customers will be redirected to the Facebook
Page after checking in.

TP-Link AC500 Specifications

General

Flash memory	32 MB
Internal memory	256 MB
Built-in processor	Yes
Processor frequency	1000 MHz
Control display unit	-
Internal memory type	DDR3
Number of processors installed	1
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Console port	RJ-45
Ethernet LAN (RJ-45) ports	5
Input voltage	100-240 V
Input frequency	50/60 Hz
Certification	CE, FCC, RoHS
Mounting type	Rack mounting
Product color	Black
Rack capacity	1U
LED indicators	Activity, Link, Power, System
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Security algorithms	802.1x RADIUS, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK
Cables included	AC
Package type	Box
Package depth	336 mm
Package width	528 mm
Package height	100 mm
Package weight	3520 g

Weight and Dimensions

Depth	227 mm
Width	440 mm
Height	44 mm
