TP-Link TL-R480T+ User Manual

-109-
Choose the menu Maintenance→Diagnostics→Diagnostics to load the following page.

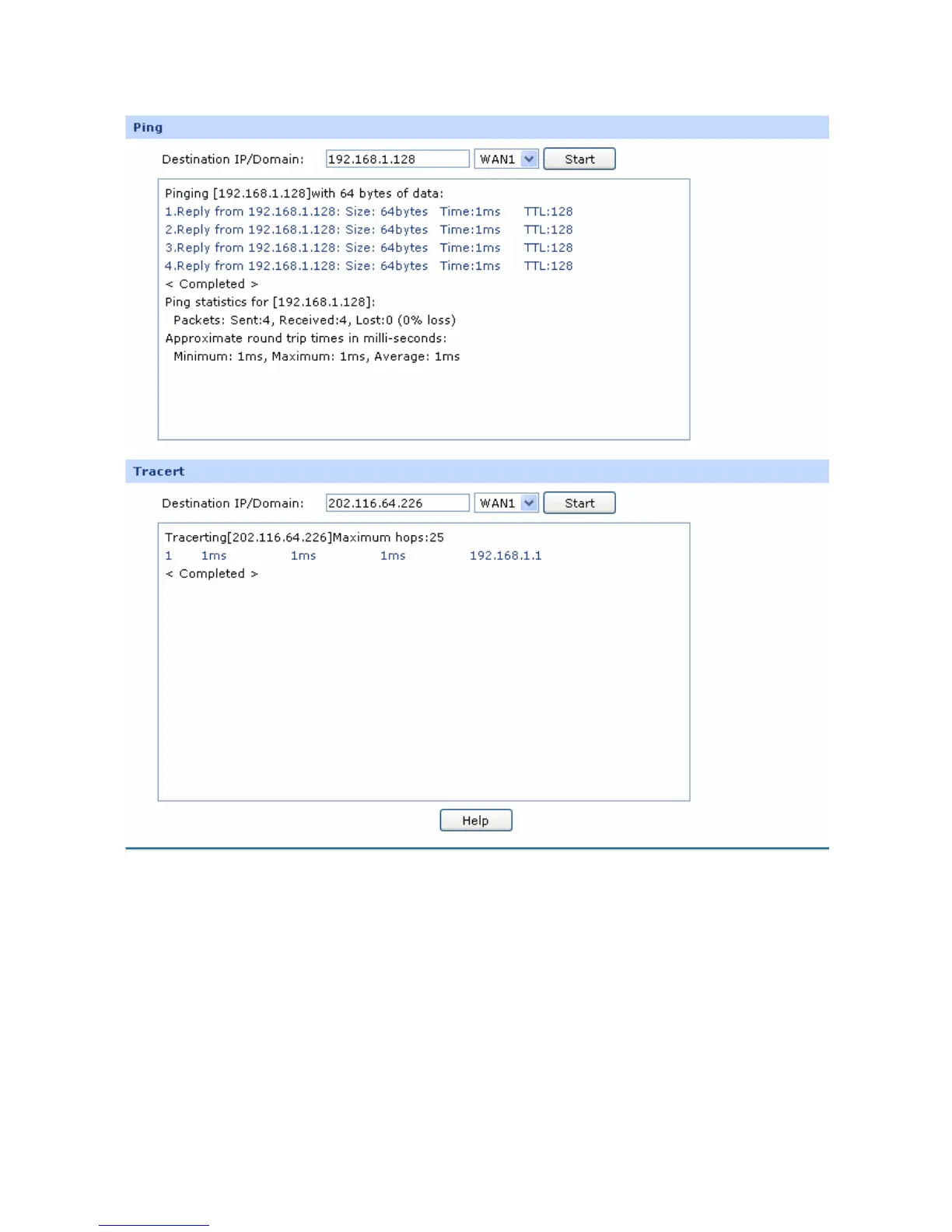

Figure 4-78 Diagnostics
The following items are displayed on this screen:
¾ Ping
Destination IP/Domain: Enter destination IP address or Domain name here. Then select a
port for testing, if you select “Auto”, the Router will select the
interface of destination automatically. After clicking <Start> button,
the Router will send Ping packets to test the network connectivity
and reachability of the host and the results will be displayed in the
box below.
¾ Tracert

TP-Link TL-R480T+ Specifications

General

Load Balancing	Yes
Power Supply	100-240V AC, 50/60Hz
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Firewall	Yes
VPN	PPTP, L2TP, IPSec
VPN Support	Yes
QoS	Yes
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Network Protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP
Management	Web-based
Device Type	Router
Firewall Features	IP Filtering, Domain Filtering
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
