-56-
2. Then set the corresponding Static Route entry, enter the IP address of the interface connecting
the Router and the three layer switch into the Next Hop field.

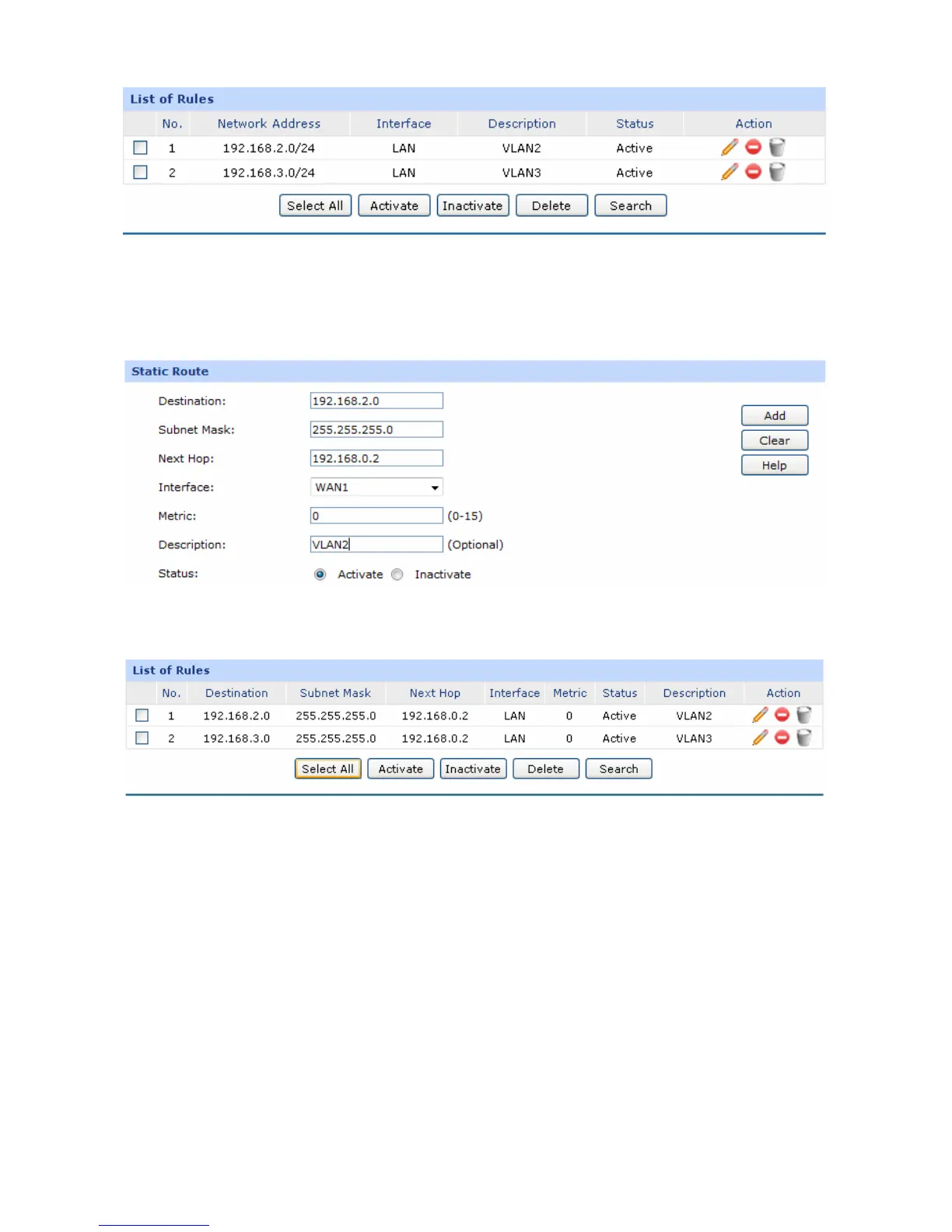

Choose the menu AdvancedRoutingStatic Route to load the following page.
The set Static Route entry is as follows:
4.5.1.4 Virtual Server
Virtual server can be used for setting up public services in your private network, such as DNS, Email
and FTP. Virtual server can define a service port. All the service requests to this port will be transmitted
to the LAN server appointed by the Router via IP address.
Choose the menu AdvancedNATVirtual Server to load the following page.
