TP-Link TL-R480T+ User Manual

-46-

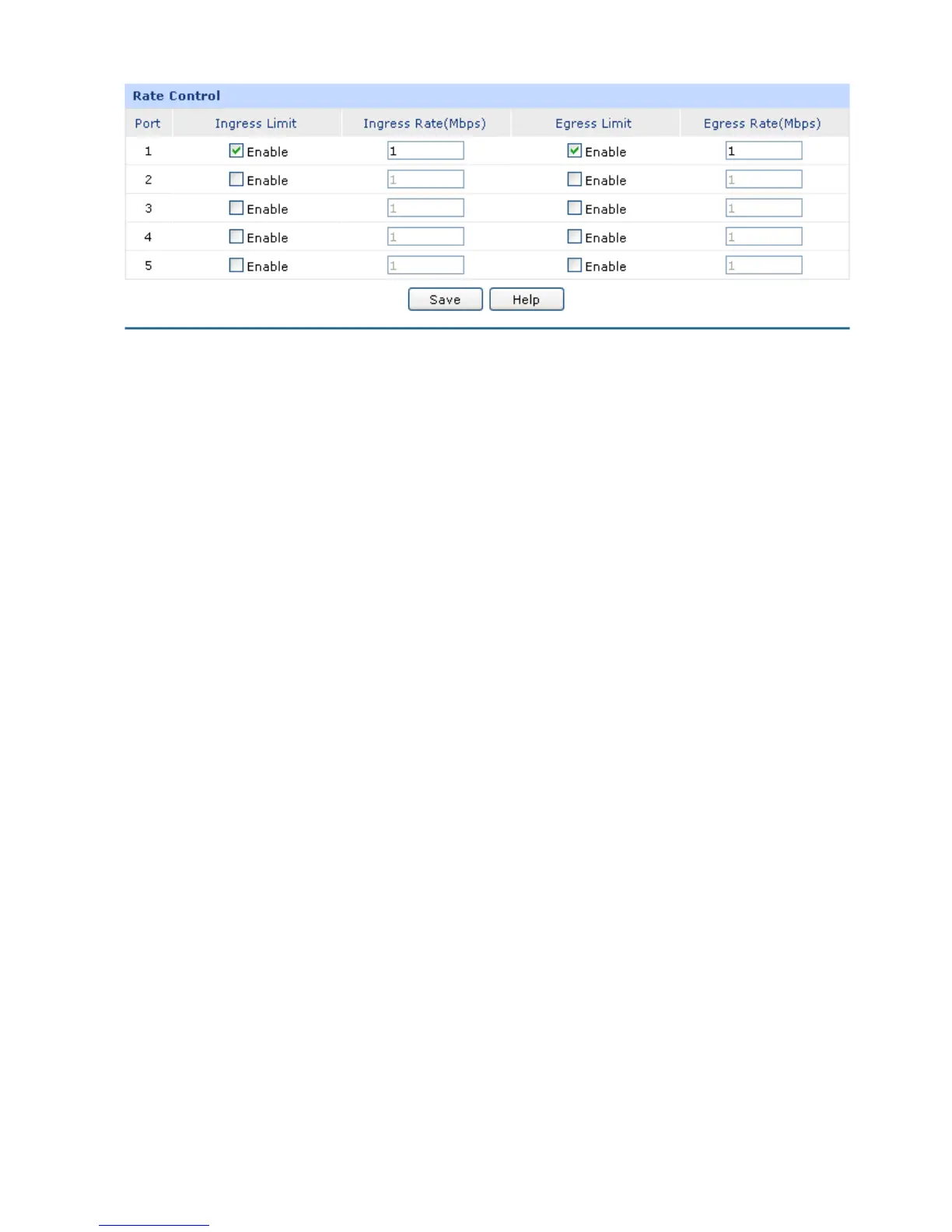

Figure 4-23 Rate Control
The following items are displayed on this screen:
¾ Rate Control
Port:
Displays the port number.
Ingress Limit:
Specify whether to enable the Ingress Limit feature.
Ingress Rate:
Specify the limit rate for the ingress packets.
Egress Limit:
Specify whether to enable Egress Limit feature.
Egress Rate:
Specify the limit rate for the egress packets.
The first entry in Figure 4-23 indicates: The Ingress and Egress Limits are enabled for port 1. The
Ingress and Egress Rates are 1Mbps. That is, the receiving rate for all the ingress packets will not
exceed 1Mbps, and the transmitting rate for all the egress packets will not exceed 1Mbps.
4.3.4.4 Port Config
On this page, you can configure the basic parameters for the ports.
Choose the menu Network→Switch→Port Config to load the following page.

TP-Link TL-R480T+ Specifications

General

Load Balancing	Yes
Power Supply	100-240V AC, 50/60Hz
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Firewall	Yes
VPN	PPTP, L2TP, IPSec
VPN Support	Yes
QoS	Yes
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Network Protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP
Management	Web-based
Device Type	Router
Firewall Features	IP Filtering, Domain Filtering
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
