TP-Link TL-R480T+ User Manual

-44-

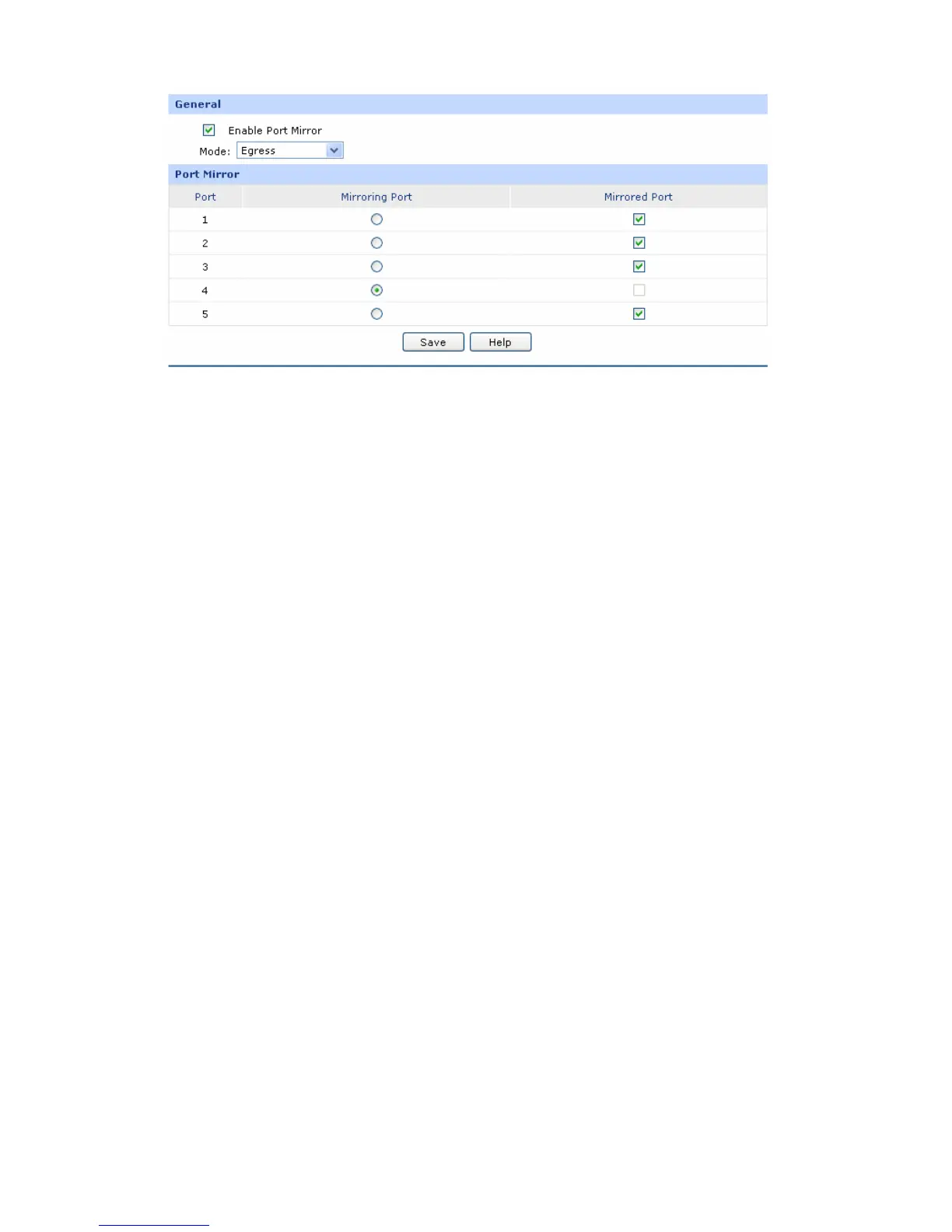

Figure 4-22 Port Mirror
The following items are displayed on this screen:
¾ General
Enable Port Mirror:
Check the box to enable the Port Mirror function. If unchecked, it will be
disabled.
Mode:
Select the mode for the port mirror function. Options include:
z Ingress: When this mode is selected, only the incoming packets
sent by the mirrored port will be copied to the mirroring port.
z Egress: When this mode is selected, only the outgoing packets sent
by the mirrored port will be copied to the mirroring port.
z Ingress&Egress: When this mode is selected, both the incoming
and outgoing packets through the mirrored port will be copied to the
mirroring port.
¾ Port Mirror
Mirroring Port:
Select the Mirroring Port to which the traffic is copied. Only one port can
be selected as the mirroring port.
Mirrored Port:
Select the Mirrored Port from which the traffic is mirrored. One or multiple
ports can be selected as the mirrored ports.
The entry in Figure 4-22 indicates: The outgoing packets sent by port 1, port 2, port 3 and port 5
(mirrored ports) will be copied to port 4 (mirroring port).

TP-Link TL-R480T+ Specifications

General

Load Balancing	Yes
Power Supply	100-240V AC, 50/60Hz
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Firewall	Yes
VPN	PPTP, L2TP, IPSec
VPN Support	Yes
QoS	Yes
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Network Protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP
Management	Web-based
Device Type	Router
Firewall Features	IP Filtering, Domain Filtering
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
