TP-Link TL-R480T+ User Manual

-72-
The first entry in Figure 4-44 indicates: If there are packets being sent to a device with IP address of
211.162.1.0 and subnet mask of 255.255.255.0, the Router will forward the packets from WAN1 port to
the next hop of 211.200.1.1.
Application Example

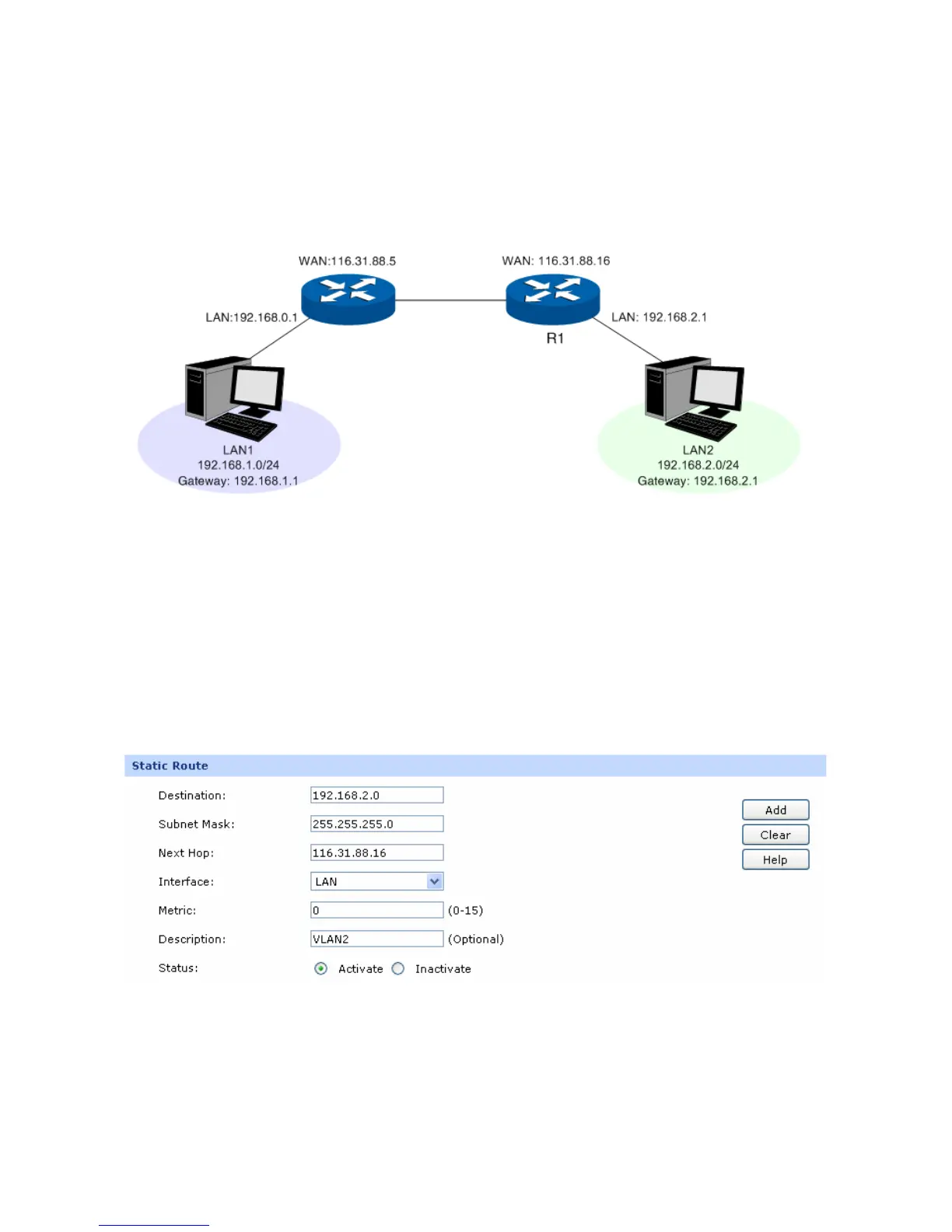

There is a network topology as the following figure shown:
If the LAN port of TL-R480T+（with Non-NAT or Classic system mode）is connected to LAN1 with
subnet of 192.168.0.0/24, while the LAN port of another Router R1 is connected to LAN2 with network
of 192.168.2.0/24. Meanwhile, the WAN ports of the two routers are interconnected and within the
same network. Now a host under TL-R480T+ and within network of LAN1 desires to communicate with
the host within network of LAN2.
You can set a Static Route entry: Enter the WAN IP address of R1 (116.31.88.16) in the Next Hop field
on the Static Route page of TL-R480T+ as the following figure shown, then click the <Add> button to
save the entry.

TP-Link TL-R480T+ Specifications

General

Load Balancing	Yes
Power Supply	100-240V AC, 50/60Hz
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Firewall	Yes
VPN	PPTP, L2TP, IPSec
VPN Support	Yes
QoS	Yes
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Network Protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP
Management	Web-based
Device Type	Router
Firewall Features	IP Filtering, Domain Filtering
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
