TP-Link TL-R480T+ User Manual

-85-

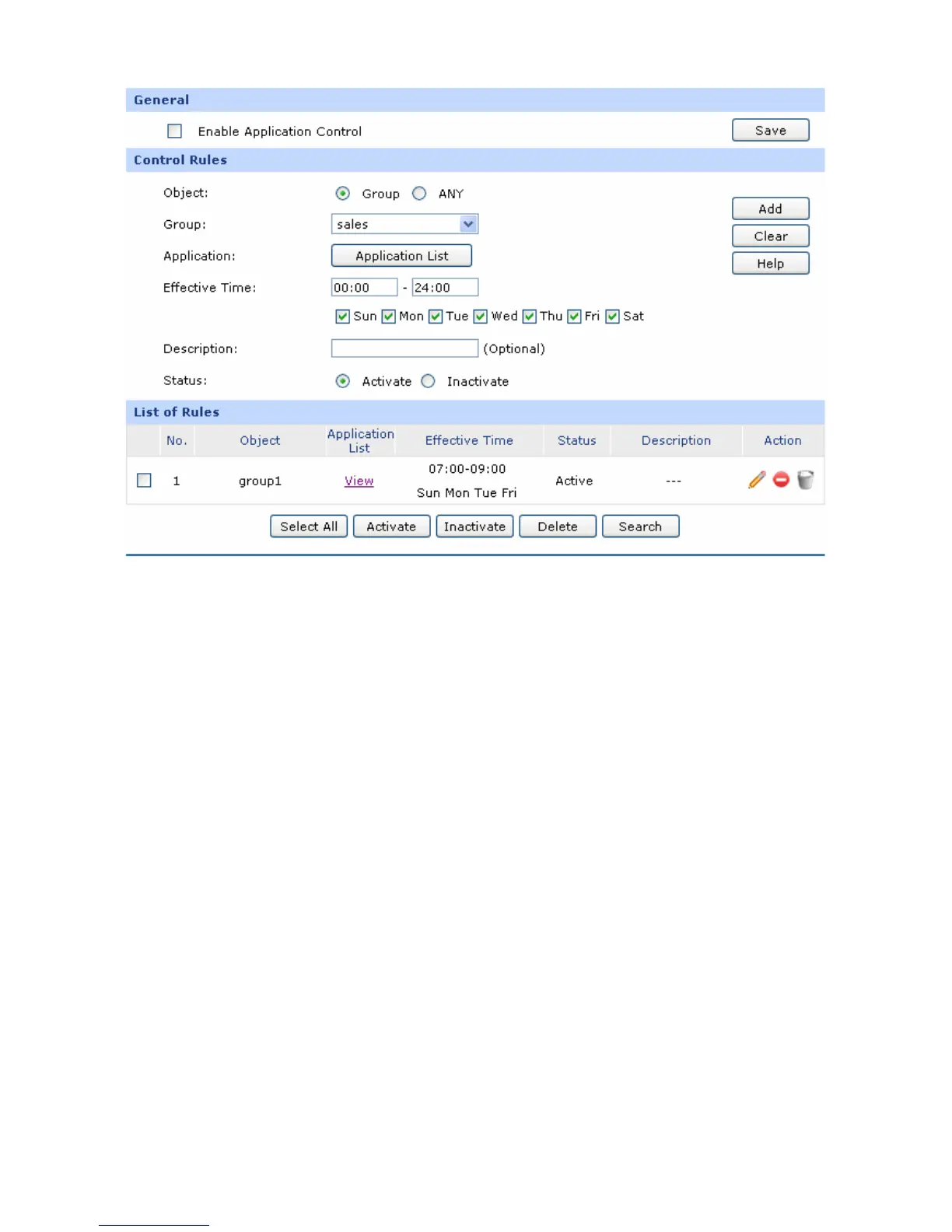

Figure 4-56 Application Rules
The following items are displayed on this screen:
¾ General
Check the box before Enable Application Control to make the Application Control function
take effect. The specified application used by the specified local users will be not allowed to
access the Internet if the Application Control entry is enabled.
¾ Control Rules
Object:
Specify the object for the entry. You can select “Group” to limit the
predefined group, or select “ANY” to limit all the users.
Group:
If select “Group” as object, you can select the group in the drop-down list.
To establish new group, please refer to 4.2.1 Group.
Application:
Click the <Application List> button to select applications from the popup
checkbox. The applications include IM, Web IM, SNS, P2P, Media, Basic
and Proxy. The default setting is to limit all the applications in the
application list except for Basic and Proxy.

TP-Link TL-R480T+ Specifications

General

Load Balancing	Yes
Power Supply	100-240V AC, 50/60Hz
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Firewall	Yes
VPN	PPTP, L2TP, IPSec
VPN Support	Yes
QoS	Yes
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Network Protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP
Management	Web-based
Device Type	Router
Firewall Features	IP Filtering, Domain Filtering
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
