TP-Link TL-R480T+ User Manual

-92-

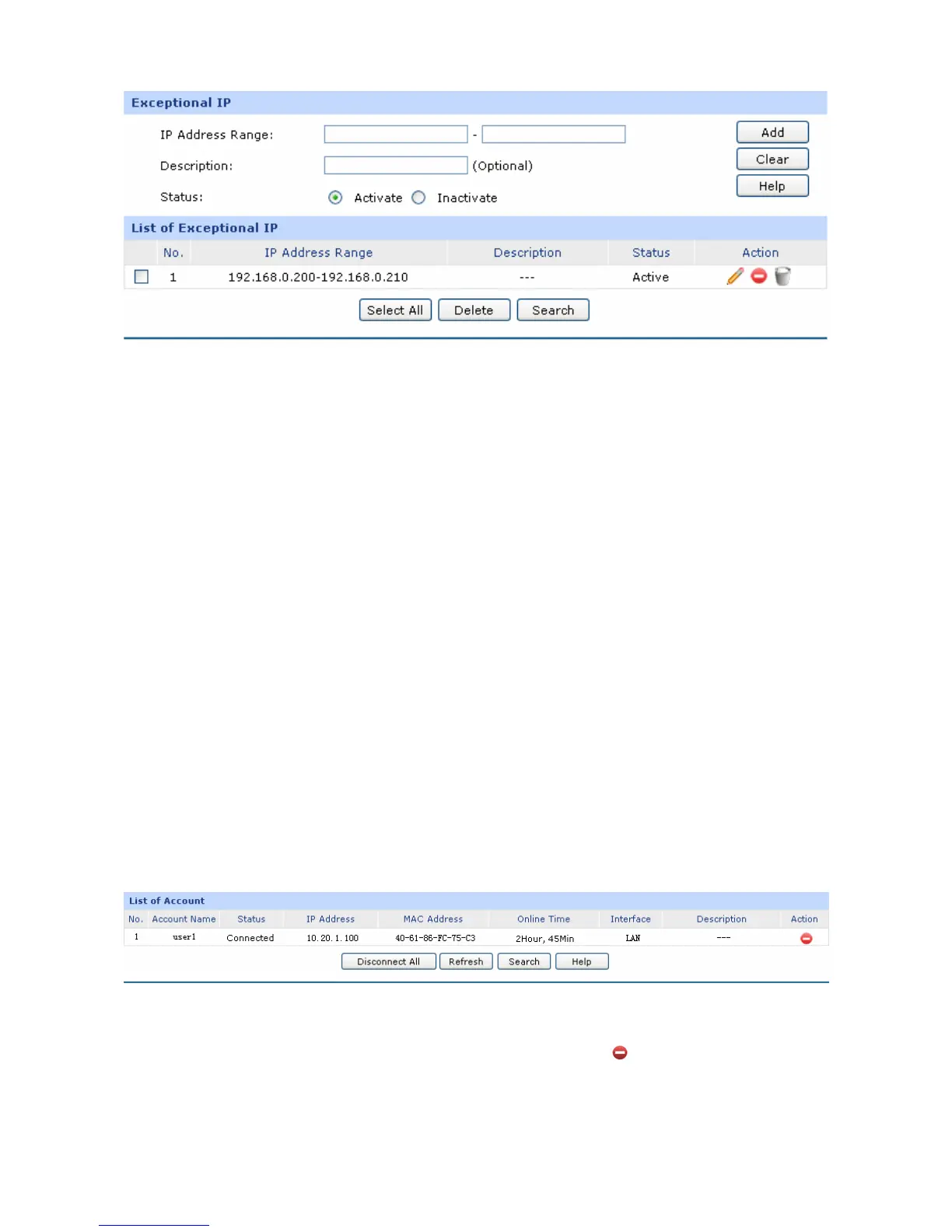

Figure 4-61 Exceptional IP
The following items are displayed on this screen:
¾ Exceptional IP
IP Address Range:
Specify the start and the end IP address to make an exceptional IP address
range. This range should be in the same IP range with LAN port of the
Router. The start IP address should not exceed the end address and the IP
address ranges must not overlap.
Description:
Give a description to the exceptional IP address range for identification.
Status:
Activate or inactivate the entry.
¾ List of Account
In this table, you can view the information of Exceptional IPs and edit them by the Action buttons.
4.7.1.5 List of Account
On this page, you can view the detailed information of all accounts you have established.
Choose the menu Services→PPPoE Server→List of Account to load the following page.
Figure 4-62 List of Account
Figure 4-62 displays the connection information of PPPoE users. Click
to disconnect the account.
Click the <Disconnect All> button to disconnect all accounts.

TP-Link TL-R480T+ Specifications

General

Load Balancing	Yes
Power Supply	100-240V AC, 50/60Hz
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Firewall	Yes
VPN	PPTP, L2TP, IPSec
VPN Support	Yes
QoS	Yes
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
Network Protocols	TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP
Management	Web-based
Device Type	Router
Firewall Features	IP Filtering, Domain Filtering
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
