Controls Interface
RTAC-SVX01J-EN 123
Software View
See Figure 41, p. 125. Software view allows you to verify
the version of chiller software currently running and
download a new version of chiller software to DynaView.
You can also add up to two available languages to load into
the DynaView. Loading an alternate language file allows
the DynaView to display its text in the selected alternate
language, English will always be available.
Binding View
See Figure 42, p. 125. Binding View allows you to assess
the status of the network and all the devices connected as
a whole, or the status of individual devices by using status
icons and function buttons.
Binding View is essentially a table depicting what devices
and options are actually discovered on the network bus
(and their communication status) versus what is required
to support the configuration defined by the feature codes
and categories. Binding View allows you to add, remove,
modify, verify, and reassign devices and options in order
to match the configuration requirements.
Whenever a device is installed, it must be correctly
configured to communicate and function as intended.This
process is called binding. Some features of Binding View
are intended to serve a second purpose; that is diagnosing
problems with communication among the devices.
Replacing or Adding Devices
If a device is communicating but incorrectly configured, it
might not be necessary to replace it. If the problem with
the device is related to communication, attempt to rebind
it, and if the device becomes correctly configured, it will
then communicate properly.
If a device that needs to be replaced is still communicating,
it should be unbound. Otherwise, it will be necessary to
rebuild the CH530 network image for Binding View to
discover that it has been removed. An unbound device
stops communicating and allows a new device to be
bound in its place.
It is good practice to turn the power off while detaching
and attaching devices to the CH530 network. Be sure to
keep power on the service tool computer. After power is
restored to the CH530 network, the reconnect function in
BindingView restores communication with the network. If
the service tool computer is turned off, you must restart
TechView and Binding View.
If a device is not communicating, the binding function
displays a window to request manual selection of the
device to be bound. Previously-selected devices are
deselected when the function starts. When manual
selection is confirmed, exactly one device must be
selected; if it is the correct type, it is bound. If the desired
device cannot be selected or if multiple devices are
accidentally selected, you can close the manual selection
window by clicking on No and repeat the bind function.

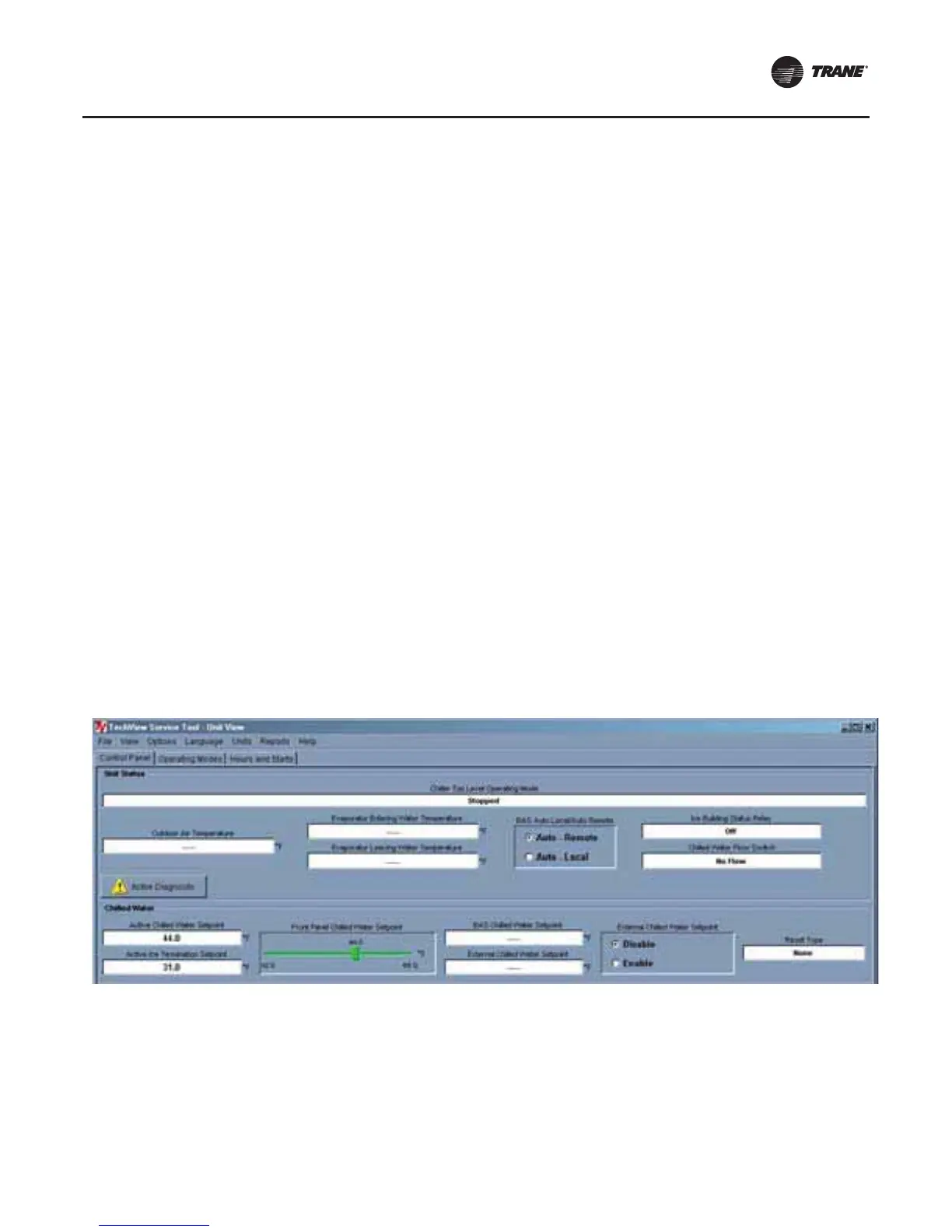

Figure 35. Unit view
