14
BA
S-SVX45F
-GB
Installation

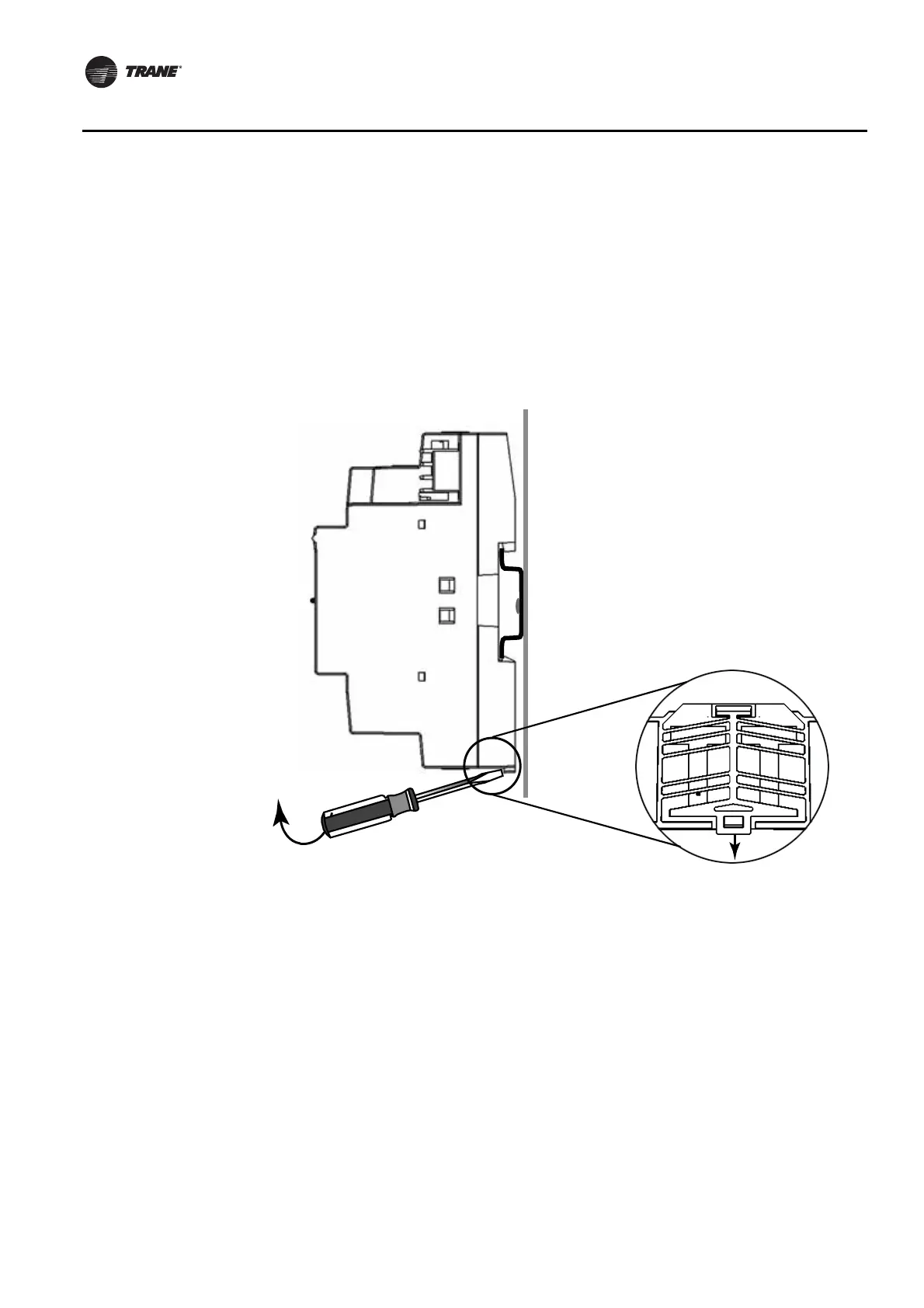

Figur
e 5.
Removing the T
r
acer UC600
T
o remove or reposition
the controller:
1
.
Disconnect all connectors befo
re removing or repositioning
.
2.
Insert screwdriver into slotted release clip
and gently pr
y upward with the screwdriver to
disengage the clip.
3.
While holding tension on the clip, lif
t device
upw
ard to remove or to reposition.
4.
If repo
sitioned, push on th
e d
evice until the release clip clic
ks
bac
k in
to place
to secure the
device to DIN rail.
13
15
Table of Contents
Default Chapter
4
Table of Contents
4
Overview
7
Smoke Control Support (UUKL)
7
Air-Fi™ Wireless Communications Interface (WCI) Support
7
Expansion Module Requirements
7
Specifications
8
Location of Leds
8
Hardware Terminations
9
Agency Listings and Compliance
10
Additional Ordering Options
10
Required Tools
10
Dimensions and Clearances
11
Installation
13
Mounting and Removing the Tracer UC600 Controller
13
DIN Unit Width
13
Setting Addresses Using Rotary Switches
15
Setting the Bacnet Device ID
16
Bacnet MS/TP Device ID Assignment
16
Device ID Assignment for Bacnet/Ip Devices
17
Device ID Assignment for Wireless Devices
17
Rotary Dial Address Settings for Non-Trane Systems
17
Tracer UC600 Pre-Power Checks
18
Resistive Inputs
18
Voltage Inputs
19
Current Inputs
19
Binary Inputs
20
Power Budget Check in an Un-Powered State
21
Calculating AC Power Consumption
21
Calculating DC Power Consumption
22
Wiring and Powering the Tracer UC600
23
AC Power Warnings and Cautions
23
Requirements and Recommendations
23
Wiring and Circuit Requirements
23
Transformer Requirements
24
Avoid Equipment Damage
24
Terminal Connectors and Tug Test
24
Wiring AC Power to Tracer UC600
25
Controller Startup and Power Check
26
Bacnet MS/TP Link Wiring
27
Bacnet/Ip Wiring
27
Wiring Inputs and Outputs
28
Providing Low-Voltage Power for Inputs/Outputs
29
Input and Output Wiring
29
Wiring Universal Inputs
30
Wiring Binary Inputs
30
Wiring 0-10 VDC Analog Inputs
31
Wiring 0-20 Ma Analog Inputs
32
Wiring Variable Resistance Analog Inputs
33
Wiring Trane Zone Sensors
34
Wiring Analog Outputs
35
Wiring Binary Outputs
36
Connecting Pressure Transducer Inputs
37
Tracer UC600 Operation
38
LED Descriptions and Activities
38
Troubleshooting
39
Communication Problems
39
Output Points
39
Connection Problems
40
Configuring Tracer UC600 with Tracer TU
41
Starting a Session of TU and Connection
41
Connecting Using Tracer SC
42
Tracer TU Installation and Connection Error Conditions
44
Upgrading Firmware
45
Configuring Tracer UC600 and Creating or Editing Points
46
Configuring Tracer UC600
46
Using Pre-Packaged Solutions (PPS)
47
Creating or Editing Points for the UC600
47
Placing Points in Out-Of-Service Mode
49
Creating Points to Monitor Communication and TGP2 Programs
49
Creating Points for Timed Override (TOV) and */** Functions
50
Monitoring and Viewing the Status of the Tracer UC600
53
Backup
54
Transfer Files (Restore)
54
Setting up and Maintaining Schedules
55
Creating a Weekly Schedule
55
Changing the Schedule Default Value and Adding Events
57
Adding Exceptions to a Schedule
59
Modifying Exceptions
62
Deleting Events
62
Deleting Exceptions
63
Deleting a Schedule
63
Custom Graphics
63
Graphics Best Practices
65
Commissioning/Troubleshooting in a Powered State
66
Resistive Inputs
67
Voltage Inputs
68
Current Inputs - Methods 1 or 2
69
24 Vac Measurement
70
Binary Inputs, 24 Vac Detect- Methods 1 or 2
71
Binary Inputs- Based on Analog Output Connection
71
Open-Collector Based Binary Sensors
72
Voltage Analog Output
73
Current Analog Output- Methods 1 or 2
73
Ground Measurements
74
Other Resources
75
Appendix A: Configuring Tracer UC600 for Bacnet/Ip
76
Device ID Assignment for Trane Bacnet/Ip Devices
76
Ethernet Network Wiring Specifications
76
Bacnet/Ip Network Configuration on the Tracer SC
76
Enabling BBMD Functionality on the IP Network
77
Setting up Tracer UC600 Bacnet Communication with Tracer TU
78
Establishing a Direct Connection with Tracer TU
78
Establishing a Network Connection with Tracer TU
79
Configuring IP Information
79
Configuring Bacnet Information
80
Setting up a BDT
81
Security
81
Local Network (Firewall) Security
81
Disable HTTP Communications
82
Disable Tracer UC600 User Interface (TD7)
82
Declaration of CE Conformity
83
