Configuring Tracer UC600 with Tracer TU
Graphics Best Practices
Individual graphic files cannot exceed 2 megabytes (Mbs). Files that exceed 2 Mbs will cause slow
controller performance and increased graphic loading times.
Observe the following best practices:
• Use a program such as Microsoft Paint to save graphics using the following recommended
formats: png, jpg, or gif. File formats such as bitmap (bmp) result in much larger files sizes.
• Open the image using Microsoft Paint, and resize the image to smaller dimensions.
• If the image file was created by Centralized Graphics or another graphics specialist, request a
new image with a file size under 2 Mb.
Note: Verify that the image quality is acceptable after saving in one of the recommended
formats. JPG and GIF file formats use image compression which can reduce the quality
of the image.

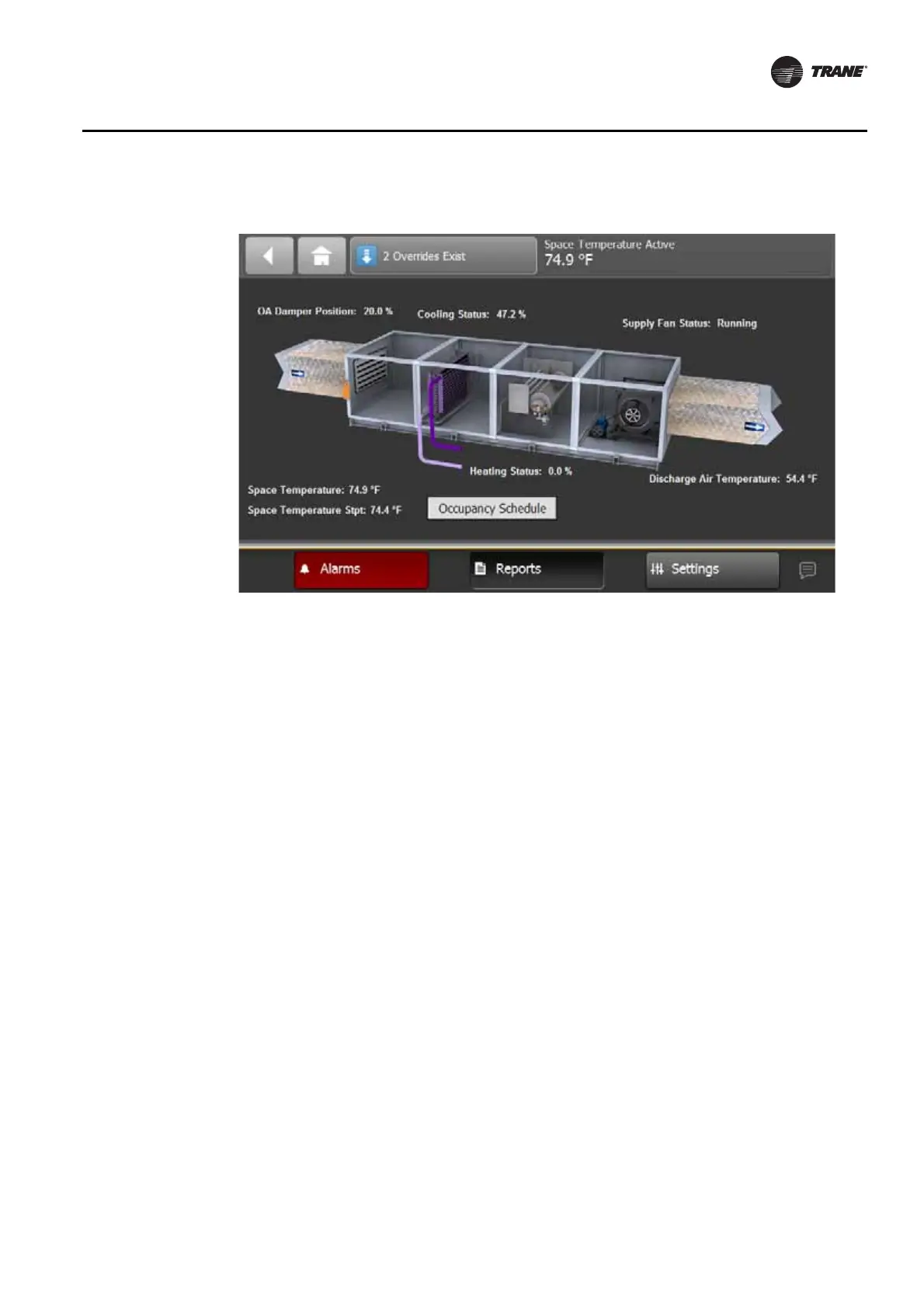

Figure 42. Sample graphic
To Next Page
