3.5.2. Time Schedule

3.5.2.1. Setting to Access Control / Time & Attendance

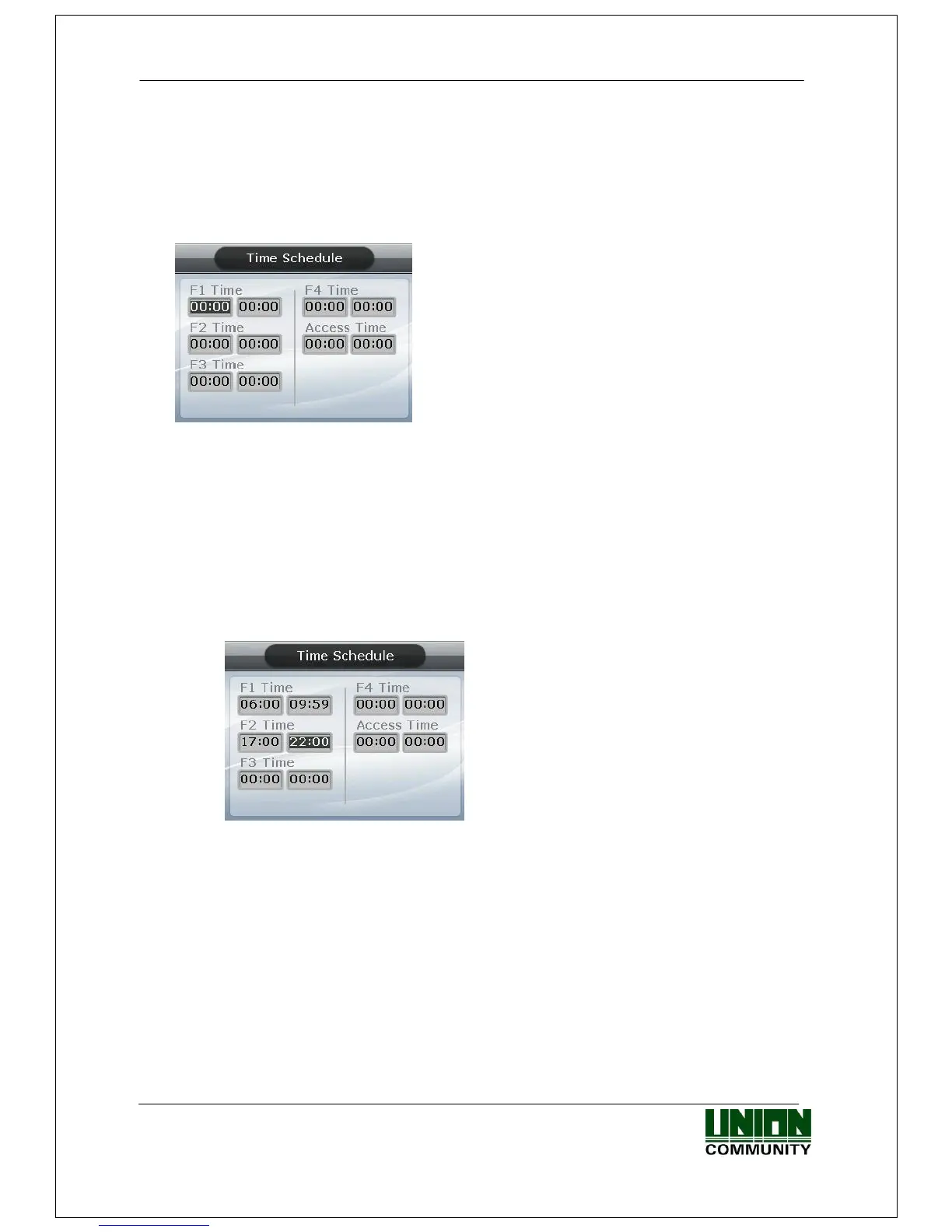

Select ◆ [ENT~]  [3. Application]  [2. Time Schedule] in the initial screen ◆, and

the following screen appears:

▶ Initial setting: Identical with the screen on the

left.

The user can set the time period for authentication

mode; otherwise, set to ‘00:00-00:00’.

Input after deleting the existing value using [F4 (←)]

to change the value.

Input HHMM (Hour/Minute) in order - can be set from

00:00 to23:59

In a preset time period, it’s always shown in the preset mode unless the user presses

another function key. Although the user pressed the other function key to authenticate

with another mode the terminal display mode automatically changes to authentication

mode, which is suitable for the management of time & attendance.

As shown in the example below, each time period must be set without overlapping; the

mode is determined F1F2F3F4Access sequentially if they do overlap.

-----------------------------------------------------------------------------------------------------------

(Example) Office start=06:00~09:59, Office leave=17:00~22:00

-----------------------------------------------------------------------------------------------------------

Exit to the parent menu to apply the changed value, after finishing the settings, by

pressing the [ENT~] key. Press the [F4 (←) ~] key to cancel the input value.
