The file name can be up to 15 characters, including the extension name, with the Wav
file in 8KHz 16-bit mono form only. If any data in a different format is downloaded, the
transmission result will be displayed as a version error.
In the case of a voice failure, designate the file as ‘Fail voice file (.wav)’ and then change
it in the same way.
To change the user’s defined voice into the default voice, release the check mark in the
‘User Voice’ item in ‘3.5.5 Display’.
3.9.3. Change User Text

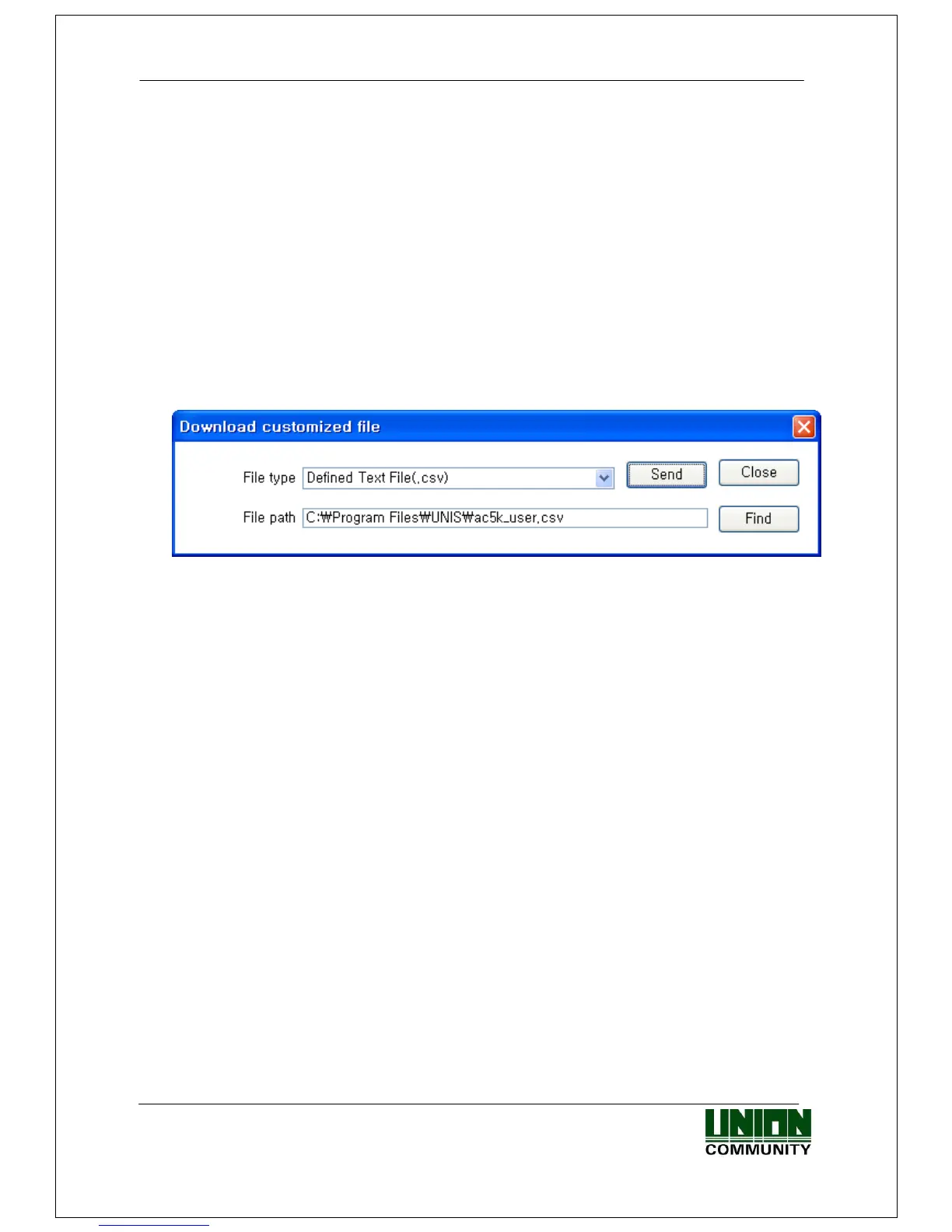

When selecting ‘Download customized file’ in UNIS program, the following screen
appears:
Designate the file as ‘Defined Text File (.csv)’, select CSV file (.csv) and click the ‘Send’
button. The terminal select window will appear. Select the terminal from the terminal list
window and click the ‘Send’ button again. The file is transmitted with the downloaded
result displayed.
CSV file can be created and saved as a csv file type after changing the desired text in the
Excel (.xls) file provided with the terminal firmware. To change from the user’s defined
text to the default text, release the check mark in the ‘User Text’ item in ‘3.5.5 Display’.

Union Community AC-5000 Specifications

General

Brand	Union Community
Model	AC-5000
Category	IP Access Controllers
Language	English
