Commissioning Sageon Micro Power Module Manual
PM990-4207-00, Rev. 6
3-6
3.3.3 3 phase Y – individual protected external feeds
Remove the link connecting the active terminals “A” together. Connect one phase wire per “A” terminal. Connect
the neutral wires to the common neutral terminals.

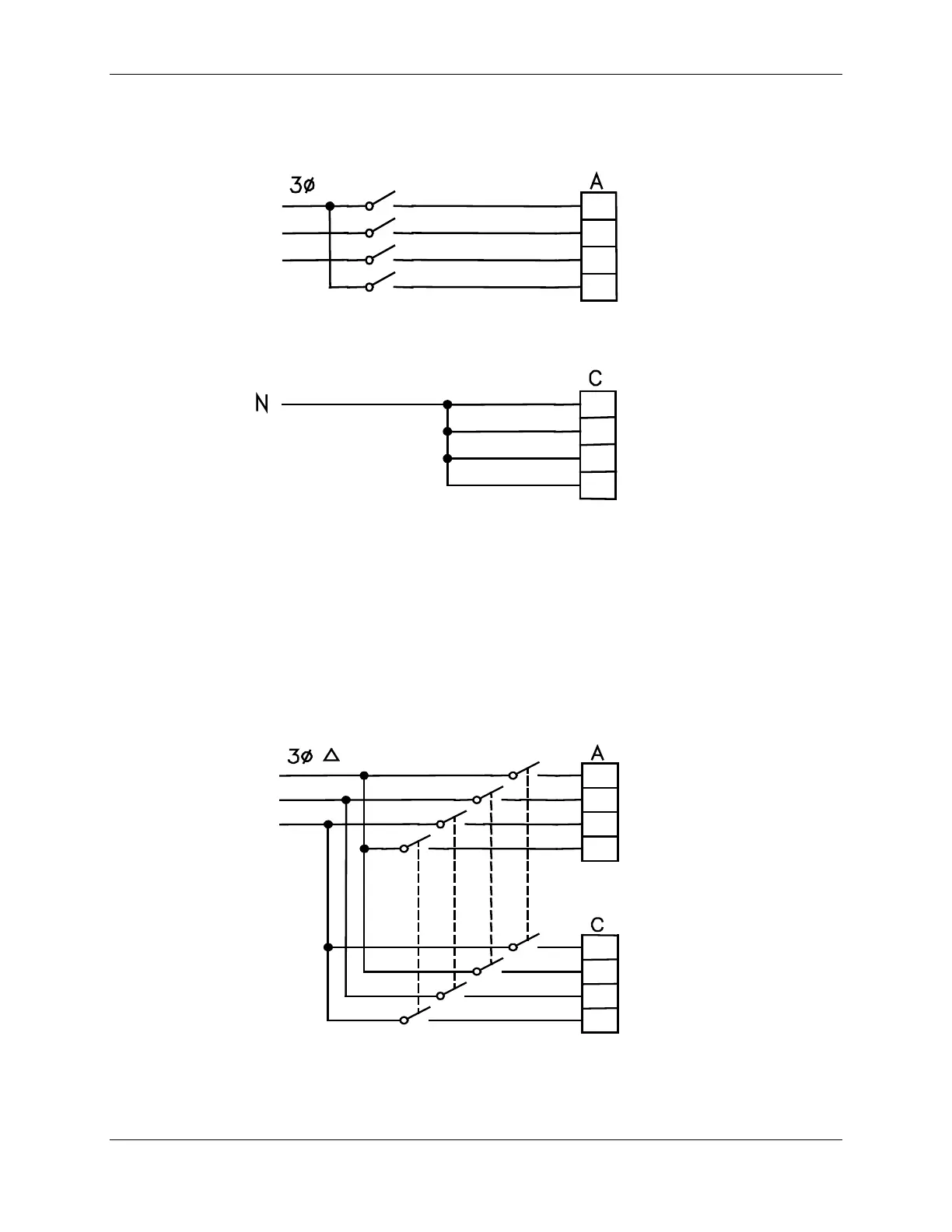

Figure 3.6 Three Phase Y-Individual Protected External Feeds
3.3.4 3 phase delta – individual protected external feeds
Phase-to-phase (208VAC) connections require that the AC terminal blocks for the neutral be replaced with
individual active line terminals. Then for each rectifier, the two AC lines can be wired to the appropriate phases.
This configuration needs to be specially ordered to ensure that the correct number of terminal blocks is loaded. The
system will be shipped with links in the active terminal blocks to configure the system as single phase (but for
phase-to-phase connection).
To wire as 3 phase delta, remove the links connecting the active terminals together, and connect each phase-to-phase
pair of wires to a set of “A” and “C” terminals. Phase rotation is not important. Double pole circuit breakers are
required.
Figure 3.7 Three Phase Delta-Individual Protected External Feeds
