7. APPENDIX A – SETTING UP NETWORK INTERFACES
7.1 PROGRAMMING IP ADDRESSES USING DEVICE INSTALLER SOFTWARE
This is the simplest way of programming the interface operating parameters; no high level of computer skills is
required. Device Installer is a software utility package developed by Lantronix. It includes a number of handy tools
making programming of various parameters and firmware update very easy. The installation package is available for
free download from Lantronix. At the time of publication it was located at following Web address:
http://www.lantronix.com/support/utils/dst/index.html
Run DeviceInstaller.exe. You will be guided through the installation process.
7.1.1 Preparations for local address set up
• From your network administrator obtain the new IP address. Also ask for your network class.
• Connect PC to the controller’s network interface (directly or via a network).
• Power-up the controller.
• Start Device Installer program.
7.1.2 Local IP address set up procedure
• On Device Installer tool bar click “IP” button. A new window “Assign IP Address” will open.
• Enter the unit Ethernet address/MAC ID as stated on information label.
• Enter assigned new IP address.
• Select correct network class.
• Click “Set IP Address” button.
The process takes several seconds to complete and the progress is indicated below IP address field. When

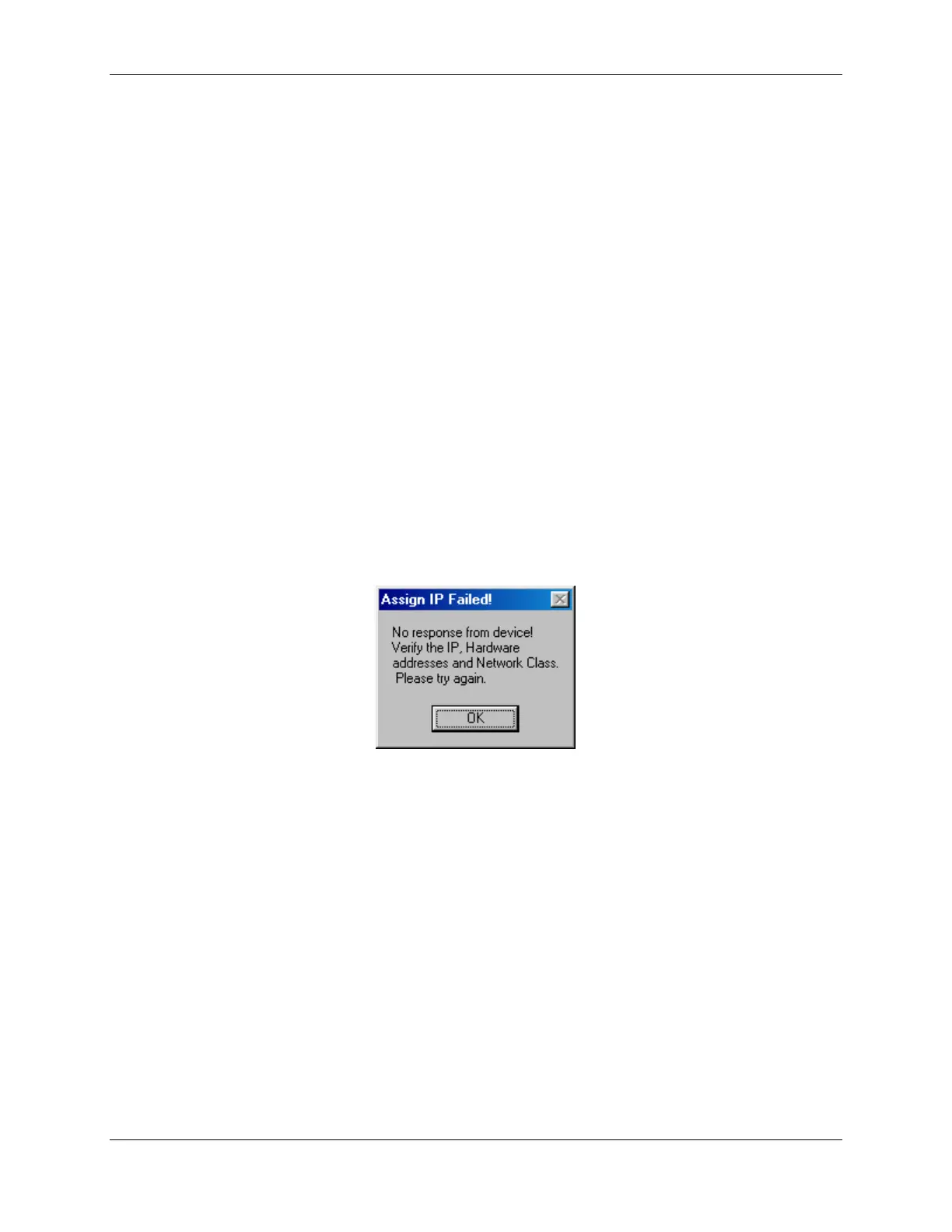

completed, a dialog box will pop-up showing a success message, or the one below.
Often it is a false alarm. To verify if the unit has in fact been programmed, do following:
• On Device Installer tool bar click “Search Network” button (first on the left hand side). A new window “Search
Network for Devices” will open
• In the new window check selection of the network class, then click “Start Search” button. After search is
completed, check the window for address you just tried to program (there may be many addresses listed).
• If the new address is listed, click “Save” button. Details of new device will be added to the Device Installer data
base.
• If the new address is NOT listed, repeat the programming procedure.
7.1.3 Preparations for gateway address set up
• From your network administrator obtain the gateway IP address
• Connect a PC to the controller’s network interface (directly or via a network).
• Power-up the controller.
• Start Device Installer program.
7.1.4 Gateway IP address set up procedure
• In Device Installer device list select the address of the unit you want to configure.

Unipower Sageon Micro Power Module Specifications

Input Power

input voltage	85-300VAC
inrush current	<9A RMS per rectifier
power factor	>0.98 for >50% output power

Output Power

output voltage for -48VDC systems	adjustable range 42.0V to 59.5V
output voltage for +24VDC systems	adjustable range 21.0V to 30.0V
efficiency for 48VDC systems	>90% at 100% output power

Environmental Conditions

operating temperature	-40°C to +70°C
full power temperature range	-40°C to +55°C
storage/transport temperature	-40°C to +70°C

Mechanical Dimensions

width	483mm (19”)
depth	355mm (14”)
height	88mm – 352mm (3.4” – 13.6”) depending on configuration
