UAD Powered Plug-Ins Manual - 223 - Chapter 24: Neve 1081 Equalizer
Neve 1081 and 1081SE Controls
Overview The Neve 1081 channel module is a four-band EQ with high and low cut fil-
ters. The 1081 features two parametric midrange bands, with “Hi-Q” selec-
tions for tighter boosts or cuts. Both the high and low shelf filters have select-
able frequencies and may be switched to bell filters. Other features include a
–20 to +10 dB input gain control, phase reverse, and EQ bypass.
The bands are arranged and grouped as in Figure 70 below. The bands fea-
ture dual-concentric controls. For each of the main bands, the inner knob con-
trols the gain while the outer ring controls the frequency. The low and high cut
filters are grouped as one knob/ring set, but they are actually two indepen-
dent filters.
Band Layout
Input Gain The Input Gain control sets the level at the input of the
plug-in. The range is from –20 dB to +10 dB.
When the Input Gain knob “snaps” to the OFF position,
plug-in processing is disabled and UAD DSP usage is re-
duced (unless UAD-2 DSP LoadLock is enabled).
Note: Clicking the OFF screen label toggles between
OFF and the previously set Input Gain value. You can also click the Neve logo
to toggle between OFF and the previous state.

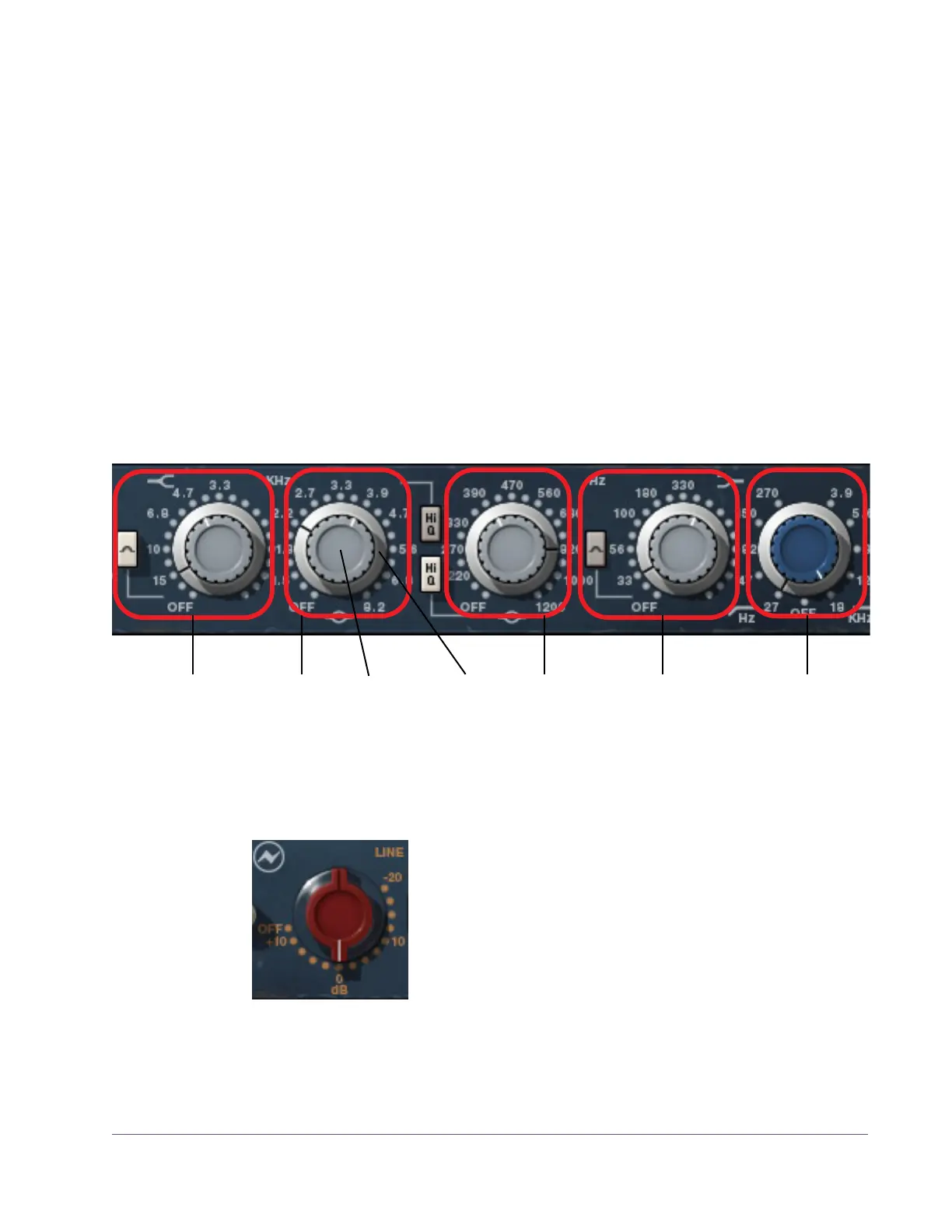

Figure 70. Neve 1081 band control layout
High
band
High-mid
band
Low-mid
band
Low
band
Low cut (ring)
High cut (knob)
Gain
(inner knob)
Frequency
(outer ring)
